Floor Standing Centrifuge
Created with Pixso.

CFH10R High-speed Lab Centrifuge , High Volume Refrigerated Lab Centrifuge Machine

CFH10R High-speed Lab Centrifuge , High Volume Refrigerated Lab Centrifuge Machine

Brand Name: Cenlee
Model Number: CFH10R
MOQ: 1 set
Price: negotiable
Supply Ability: 50 sets/month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Name:
Large Capacity Refrigerated Centrifuge
Programmability:
40 Programs
Max. RPM::
10000
Max. RCF::
18300 X G
Max. Capacity:
6000ml
Motor:
High-torque Brushless Inverter Motor
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
Highlight:

High Volume Refrigerated Lab Centrifuge

,

refrigerated lab centrifuge machine

,

High-speed Lab Centrifuge

Product Description

High-speed Centrifuges high volume refrigerated centrifuge machine

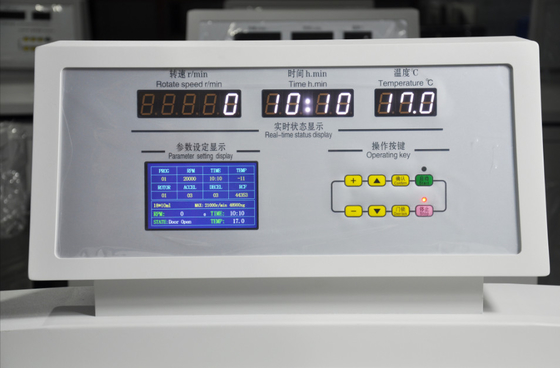

  • Controlled by microcomputer with user-friendly panel and LED and LCD dual display. run control by speed or RCF.
  • Drived by the high frequency maintenance – free motor with superspeed draft for stable running at high speed.
  • Unique damping system and CFC-free compressor combine to ensure small vibration and low noise.
  • Steel body and stainless steel centrifugal chamber for easy cleaning and durability.
  • Designed with various protection devices for maximum operational safety, such as over-temperature detection, over-speed detection,lid lock system, imbalance protection and life calculation of unit and rotors, etc.
  • Pre-cooling cools the chamber quickly. 10 pre-set acceleration/braking rates, or its time direct input ensures the best seperation even for the most delicate samples.
  • Memory function can store up to 40 runs for your repetitive separation.
  • Hold on function for short and quick centrifugation.
  • Multifuntional centrifuge both in high speed and in low speeds with large capacity, widely used in the field of research and production and so on.
Specifications
Floorstanding General Purpose Refrigerated Centrifuge, without rotor
Model CFH10R
Max.Speed (r/min) 10000
Max. RCF (x g) 18300
Max. Capacity (ml) 6000
Control Microprocessor
Drive AC Frequency Conversion Motor with large torque
Accel/Decel Rates 10/10
Programmability 40 programs
Refrigeration Environmental CFC-free Refrigeration System with R404a refrigerant
Speed Range (r/min) 100-10000
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(hr:min:sec) 0-99:59:59
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 3A, 3 phase
Dim. (W x D x H) mm 820 x 710 x 1150
Weight (kg) 300
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 6 x 250 10000 18300 0.2-300 Available
Fixed Angle Rotor 2 6 x 500 8000 11680 0.2-500 Available
Fixed Angle Rotor 3 6 x 1000 7200 12166 0.2-1000 Available
Swing-out Rotor with round buckets 4 6 x 1000 4200 5100 5-1000 Available
Swing-out Rotor 5 4 x 1000 4000 4050 5-1000 Available



CFH10R High-speed Lab Centrifuge , High Volume Refrigerated Lab Centrifuge Machine 0









CFH10R High-speed Lab Centrifuge , High Volume Refrigerated Lab Centrifuge Machine 1



CFH10R High-speed Lab Centrifuge , High Volume Refrigerated Lab Centrifuge Machine 2

CFH10R High-speed Lab Centrifuge , High Volume Refrigerated Lab Centrifuge Machine 3



CFH10R High-speed Lab Centrifuge , High Volume Refrigerated Lab Centrifuge Machine 4

FAQ:



1. How can I choose the suitable one of centrifuge?

Dear customer, please tell me the information as below, then we can recommend you suitable model.

a, please tell me your usage of centrifuge.

b, let me know how many max speed and max volume of you need.

c, please tell us the size of tubes you using.

d, let us know the whether you need refrigerated function or not.



2.Can I get some samples?

We are honored to send you our samples and according to our company’s rule.



3.How about the delivery time?

For Sample order will be prepared within 5 Days.

For bulk order, normally,it needs 20-30days, it is based on your QTY



4.Can you do custom-made?

OEM, ODM both welcomed. We also can help you to design.

Silk print your logo on the product; Customized Carton box;
Design and produce based on your Idea and draft



5.How about your after service?

a, Any Inquiries will be replied within 24 hours

b, Professional manufacturer, Quality issue, competitive price

c, All products will be strictly quality checked and well-packed before shipping

d,The free warranty period for the equipment is 12 months from the date of installation.

e,If the equipment fails during normal use, our company will promptly repair it free of charge and replace the corresponding accessories free of charge (except for human failure and force majeure).



6. Can you tell me your main customers?

Sorry we could not tell you except customer’s permission. At the same time,your information also will be protected.
