AC Torque Motor Microprocessor Floor Standing Centrifuge 6000ml

AC Torque Motor Microprocessor Floor Standing Centrifuge 6000ml

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 50 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
CFL6V
Name:
CFL6V Low Speed Large Capacity Centrifuge Floor Standing Centrifuge
Drive:
AC Frequency Conversion Motor With Large Torque
Max.Speed (r/min):
6000
Max. RCF (x G):
6680
Max. Capacity (ml):
6000
Control:
Microprocessor
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
High Light:

AC Torque Motor Floor Standing Centrifuge

,

Microprocessor Floor Standing Centrifuge

,

6000ml Large Capacity Centrifuges

Product Description

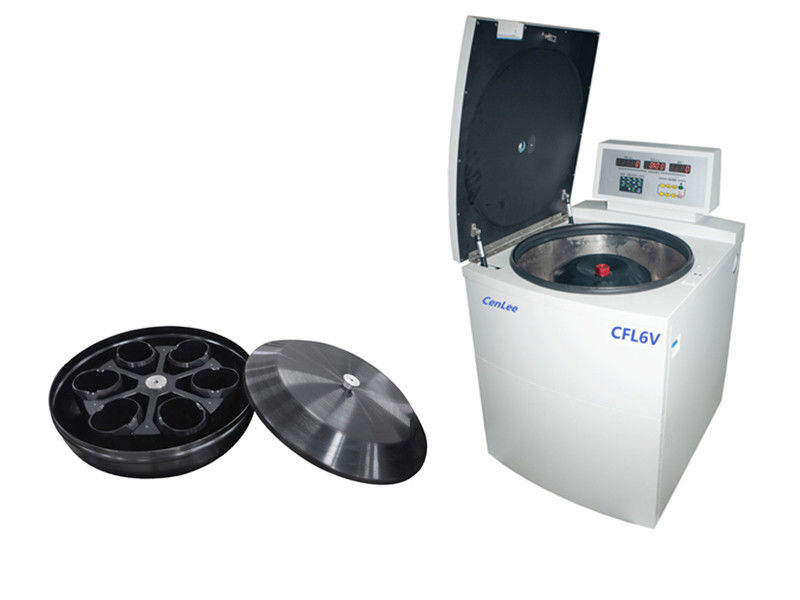

CFL6V Low Speed Large Capacity Centrifuge Floor Standing Centrifuge



  • Microcomputer control with user-friendly operational panel and large LCD display. Running parameters can be automatically stored and RCF can be directly set to start the seperation.
  • High frequency brushless motor, equipped with super speed motor shaft ensures its smooth running.
  • Multistage damping structure for tiny vibration and low noise.
  • Steel body, stainless steel chamber and imported key components for easy cleaning and durability.
  • Various protection devices including over-speed, lid lock, imbalance shutdown, etc. to ensure the maximum operational safety.
  • Unique air guide design offers small temperature rise. Special speed control technology gives fast acceleration and braking for high efficiency.
  • Various capacity adapters of 5ml, 7ml, 15ml, 30ml, 50ml, etc. for your option to meet the diverse research needs.
Specifications
Floorstanding Low Speed Superlarge Capacity Centrifuge, without rotor
Model CFL6V
Max.Speed (r/min) 6000
Max. RCF (x g) 6680
Max. Capacity (ml) 6000
Control Microprocessor
Drive AC Frequency Conversion Motor with large torque
Accel/Decel 10/10 rates or direct setting of time
Programmability 40 programs
Speed Range (r/min) 100-6000
Speed Control Accuracy (r/min) ±20
Timer Range(min:sec) 0-99:59
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 35A, 3 phase
Dim. (W x D x H) mm 830 x 720 x 1250
Weight (kg) 268

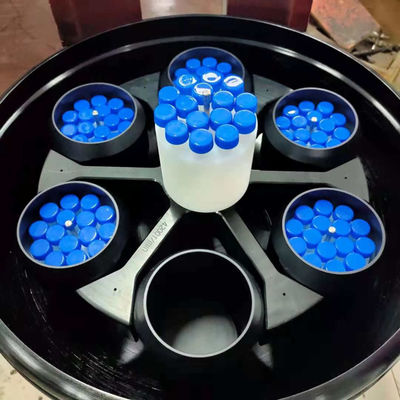

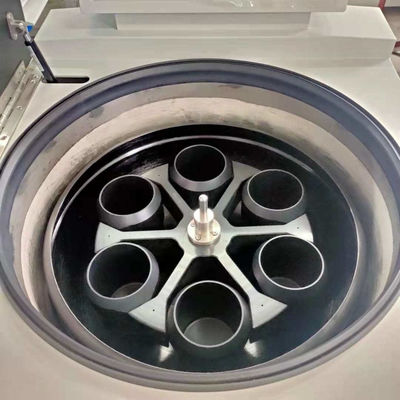

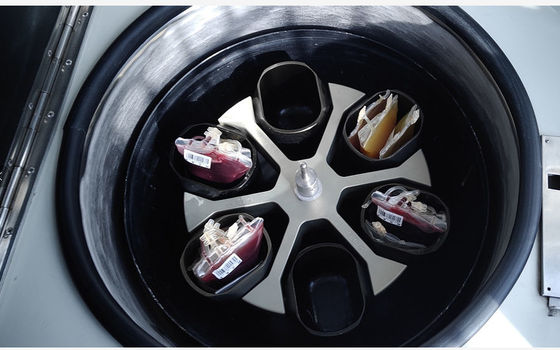

Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 6 x 300 6000 5650 2-300 Available
Fixed Angle Rotor 2 6 x 500 6000 6680 2-500 Available
Swing-out Rotor with wind shield 3 6 x 1000 4200 5100 2-1000 Available
