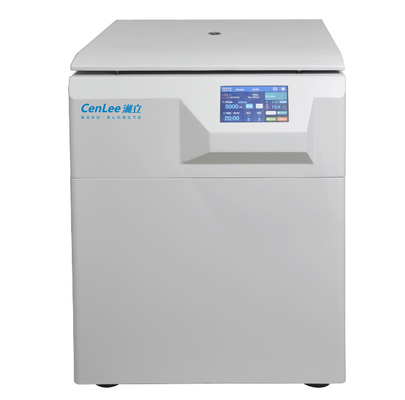

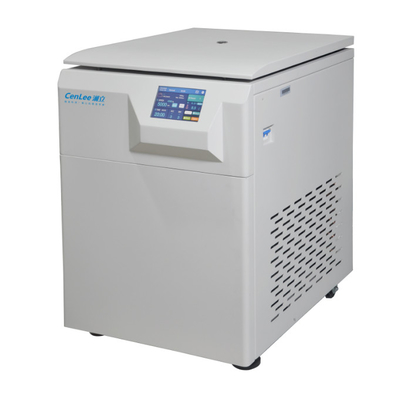

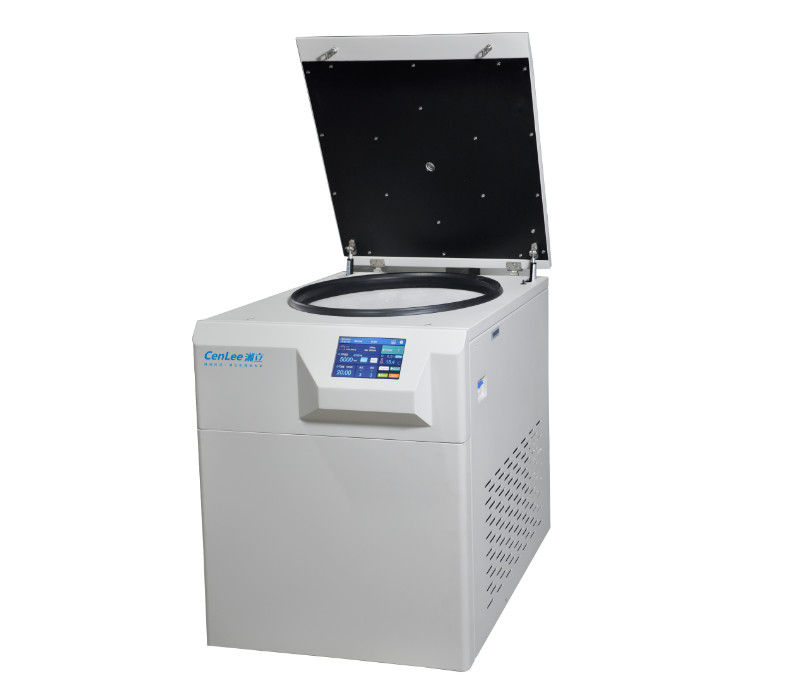

DL5M Floor Standing Low Speed Refrigerated Centrifuge 6000rpm 3000ml 4×750ml

DL5M Floor Standing Low Speed Refrigerated Centrifuge 6000rpm 3000ml 4×750ml

MOQ: 1PC
Price: US$3000-9999
Standard Packaging: by plywood box
Delivery Period: 5-8 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 500PCS/MONTH
Detail Information
Place of Origin
CN
Brand Name
CENLEE
Certification
CE
Model Number
DL5M
Minimum Order Quantity:
1PC
Price:
US$3000-9999
Packaging Details:
by plywood box
Delivery Time:
5-8 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Supply Ability:
500PCS/MONTH
High Light:

3000ml Low Speed Refrigerated Centrifuge

,

6000rpm Low Speed Refrigerated Centrifuge

,

DL5M Floor Standing Refrigerated Centrifuge

Product Description

DL5M 6000rpm 3000ml (4×750ml) Floor Standing Low-Speed Refrigerated Centrifuge

It’s widely used in radioimmunology, biochemistry, pharmaceutical and other industries.



Feature

1. Intelligent microcomputer control, system & function is more stable; Large LCD/ LCD touch screen, convenient to read, store various data and easy operation

2. Frequency conversion AC motor drive, FOC vector control system is more accurate, low noise, energy saving and environmental protection.

3. 10 kinds of uplift gear, 11 kinds of deceleration gear, three groups of damping shock absorption, using customized high-quality NR rubber shock absorption to avoid sample resuspension and achieve best centrifugation

4. Powder coating for machine shell, with uniform outer surface, anti-corrosion, scratch resistance, and the centrifugal cavity adopts #304 high-quality stainless steel material for long Gevity.

5. (Refrigeration type) Unique design and excellent rubber isolation ring which prevent condensate from entering the motor, effectively protect the motor, and extend the life of the motor.

6. (Refrigerated type) fluorine-free compressor unit (imported compressor), pre-cool the rotor in the static state, using environmentally friendly refrigerant, fast refrigeration, low noise, unique pre-cooling design, environmental protection and efficiency.

7. Compatible with Mechanical and electronic cover for high degree of reliability and safety

8. It is equipped with over-speed, over-temperature (refrigeration type), door cover self-locking, three-level protections to ensure the safety of people and machines.

9. Adapters in 5ml/7ml/10ml/15ml/30ml/50ml (ect) to meet a variety of needs, one machine for multiple purposes.

10.The parameters can be changed at any time during operation for instantaneous centrifugation and continuous centrifugation mode and without stopping machine

11. Good effect for temperature control, all rotors can be maintained at 4 °C at the highest speed (frozen type).



Technical parameter



Model DL5M Timing range 0-999min
Maximum speed 6000r/min Power supply AC 220V 50Hz 15A
Maximum RCF 5120×g Machine noise ≤60dB(A)
Maximum capacity 3000ml Dimensions 620x740x810mm
Speed Accuracy ±10r/min Net Weight 150kg
Power 1700W Packing size 680x780x1000mm
Temperature range -20℃~+40℃ Temperature accuracy ±1℃

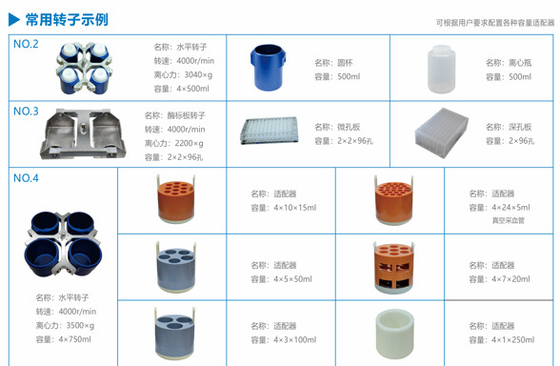

DL5M Rotor

Rotor type No. Capacity Max Speed(r/min) Max RCF(×g)
Main machine DL5M   6000 5120
Angle rotor NO.1 12×15ml 6000 5120
Swing rotor body NO.2 4×500ml 4000 3040
Enzyme Plate rotor 4×2×96 well 4000 3040
Square buckets 4xbuckets 4000 3040
Round cup 4×500ml 4000 3040
Hanging cup 4×24×5ml (Vacuum tube) 4000 3040
Hanging cup 4×37×7ml (Test tubes) 4000 3040
Enzyme Plate rotor body NO.3 2×2×96 well 4000 2200
Enzyme Plate rotor 2×2×96 well 4000 2200
Swing out rotor body NO.4 4×750ml 4000 3500
Round cup 4×750ml 4000 3500
Swing out rotor body NO.5 6×250ml 4000 3580
Round cup 6×250ml 4000 3580
Swing out rotor body NO.6 4×250ml 4200 3500
Round cup 4×250ml 4200 3500
