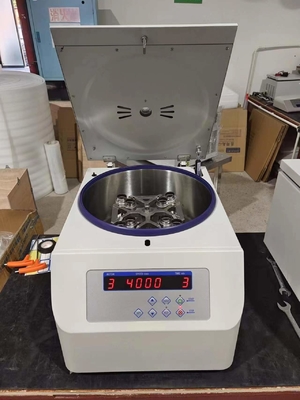

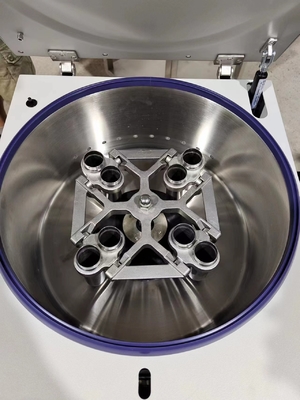

XL5A Horizontal Swing Out Rotor Low Speed Laboratory Centrifuge PRP

XL5A Horizontal Swing Out Rotor Low Speed Laboratory Centrifuge PRP

MOQ: 1 set
Price: negotiable

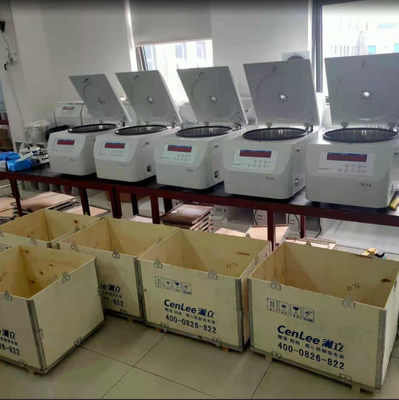

Standard Packaging: Wooden Case
Supply Capacity: 500 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
XL5A
Name:
Laboratory Centrifuge PRP
Max. RPM::
5000
Max. RCF::
4390 X G
Max. Capacity::
8 X 100ml
Temp. Control::
N/A
Width:
415mm
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
500 sets/month
High Light:

Low Speed Laboratory Centrifuge

,

Swing Out Rotor Laboratory Centrifuge

,

PRP Horizontal Laboratory Centrifuge

Product Description

XL5A Horizontal Swing Out Rotor Low Speed Laboratory Centrifuge PRP

XL5A Platelet Rich Plasma Prp centrifuge , Blood /Plasma centrifuge, Bechtop centrigue Low speed centrifuge, multi-tube rack automatic balance centrifuge

Low speed PRP plasma centrifuge



1. Intelligent microcomputer control,digital display (LED) or large-screen LCD display for easy reading parameter data and alarm information, parameters can be changed arbitrarily during operation without stopping.

2. Driven by variable frequency AC motor, accurate FOC vector control system, low noise, energy saving and environment protection

3. 9 speed-up and 10 speed-reduction gears, three sets of damping shock absorption, using customized high-quality NR rubber shock absorption to prevent samples from resuspending and separating.

4. The housing is powder-coated, with a uniform outer surface, corrosion-resistant and scratch-resistant.

5. The centrifugal cavity made of high-quality 304 stainless steel is durable.

6. The inner locking of the machine cover improves the safety of operation. The air conduction system effectively reduces the temperature inside the machine body, prolongs the service life of the control board and prevents the aging of the circuit.

7. Mechanical and electronic door locks makes high reliability.

8. Equipped with multiple protections such as over speed, door cover self-locking, three-level protective cover etc., with automatic calculation of RCF value, and automatic balance function to ensure personal and machine safety.

9. Proprietary airflow guide design, small temperature rise, effective protection of samples.

10. Displayed in seconds when the countdown time is less than one minute.

Specifications
Benchtop Low Speed Centrifuge, with rotor
Model XL5A
Max.Speed (r/min) 5000
Max. RCF (x g) 4390
Max. Capacity (ml) 8 x 100
Control Microprocessor
Drive DC Brushless Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 100-5000
Speed Control Accuracy (r/min) ±30
Timer Range(min) 1-99
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 5A, single phase

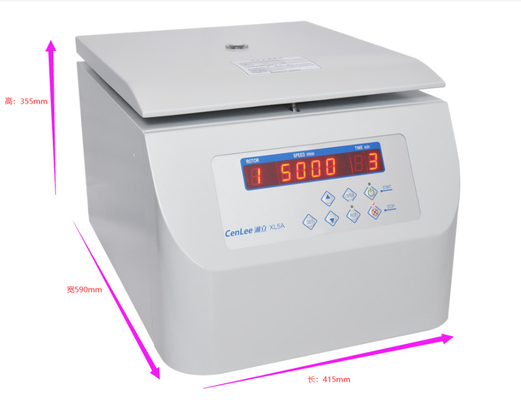

Dim. (W x D x H) mm 415 x 590 x 355
Weight (kg) 40
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 12 x 10 5000 4020 5-10 Available
Swing-out Rotor with tube holders 2 4 x 100 5000 4390 5-100 Available

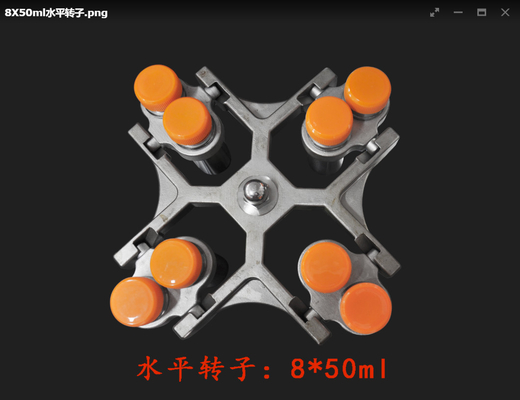

8 x 50 4000 2810 5-50 Available
4 x 50 5-50 Available

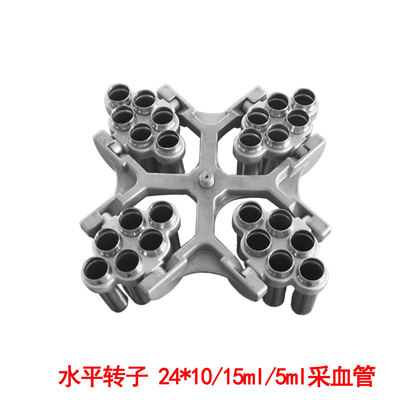

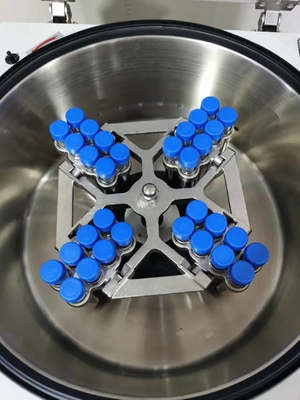

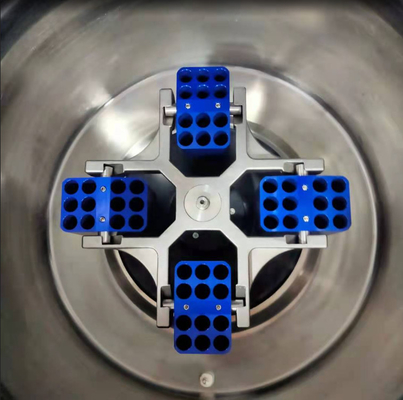

32 x 10/15 2-15 Available
16 x 10/15 2-15 Available
8 x 100 5-100 Available
Swing-out Rotor with tube holders 3 48/40 x 5 4000 2810 5 Unavailable

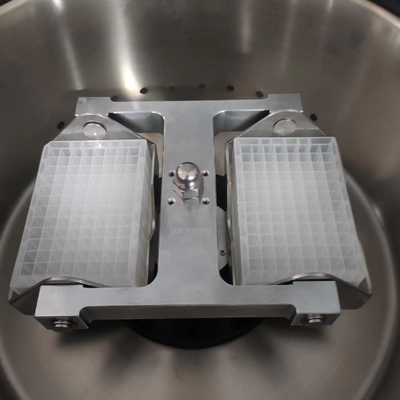

Microplate Rotor 4 2 x 2 x 96wells 4000 2300 0.2 Unavailable
