12 Cards Minigel Column Medical Centrifuge Machine Blood Gel Card Microprocessor

Place of Origin: China
Brand Name: Cenlee
Certification: ISO9001/13485，CE
Model Number: CTD-12K
Product Details
Place of Origin:
China
Brand Name:
Cenlee
Certification:
ISO9001/13485，CE
Model Number:
CTD-12K
Minimum Order Quantity:
1 set
Price:
negotiable
Standard Packaging:
Wooden Case
Supply Ability:
50 sets/month
Specifications
Name:
12 Cards Minigel Column Medical Centrifuge Machine Blood Gel Card Microprocessor
Max. RPM::
4000r/min
Max. RCF::
1790 X G
Max. Capacity::
12 Cards
Temp. Control::
N/A
Cards:
12 Cards
Highlight:

12 Cards Medical Centrifuge Machine

,

minigel column Medical Centrifuge Machine

,

Microprocessor gel card centrifuge

Product Description

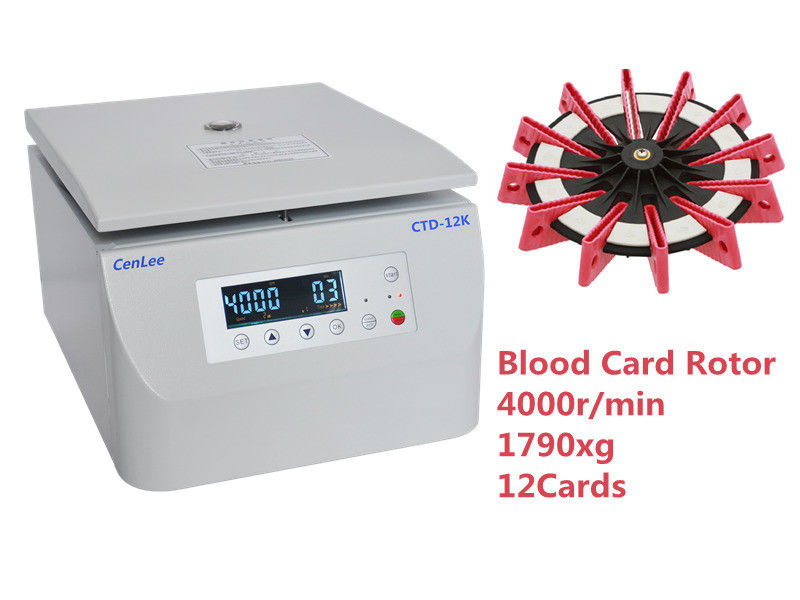

CTD-12K Blood Card Special Centrifuge Medical Centrifuge Machine



  • Mainly used for testing of blood serum, blood type, minigel column, immunodetection.
  • Microprocessor-based controlled and DC brushless motor drived with user-friendly operational panel.
  • In automatic RCF/PRM mode, you can set runs to a desired speed or g-force and moniter them in real time.
  • Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
  • Standard programs for blood type, serum testing have been prestored in it to standardize your clinical research and tests.
Specifications
Blood Card Centrifuge
Model CTD-12K CTD-24K
Max.Speed (r/min) 4000 4000
Max. RCF (x g) 1790 1790
Max. Capacity 12 cards 24 cards
Control Microprocessor Microprocessor
Drive DC Brushless Motor DC Brushless Motor
Speed Range (r/min) 100-4000 100-4000
Speed Control Accuracy (r/min) ±20 ±20
Timer Range(min) 1-99 1-99
Noise (dB) ≤ 55 ≤ 55
Power Supply V (Hz) 220/110 (50/60), single phase 220/110 (50/60), single phase
Dim. (W x D x H) mm 325 x 400 x 240 325 x 400 x 240
Weight (kg) 14 16
Rotors
Rotor Type Rotor No. Capacity

Max. Speed

(rpm)

Max. RCF

(x g)

 Main Unit

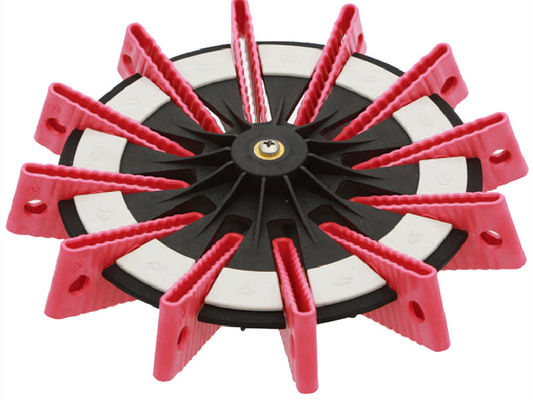

Blood Card Rotor 1 12 blood cards 4000 1790 CTD-12K
Blood Card Rotor 1 24 blood cards 4000 1790 CTD-24K
