TDL5B Swing Out Rotor Serum Fat Separator PRP Medical Centrifuge Machine Horizontal

TDL5B Swing Out Rotor Serum Fat Separator PRP Medical Centrifuge Machine Horizontal

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 50 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
TDL5B
Name:
Laboratory Centrifuge Machine Medical Centrifuge Machine
Function:
Fat ExtraCtion
Max. RPM::
5000r/min
Max. RCF::
4390 X G
Max. Capacity::
4 X 50ml
Temp. Control::
N/A
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
High Light:

PRP Medical Centrifuge Machine

,

Serum Fat Separator Centrifuge Machine

,

TDL5B Medical Centrifuge Machine

Product Description

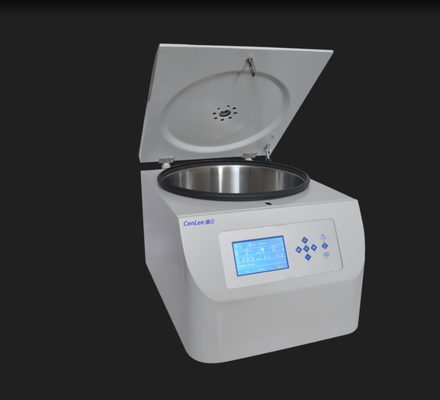

TDL5B Horizontal Swing Out Rotor Serum Fat Separator Machine Centrifuge PRP Medical Centrifuge Machine



MOST HOT SELLING Prp centrifuge, and the machine is widely used in Hospital/Clinical/Beauty center in home and abroad

  1. Microprocessor-based controlled with user-friendly operational panel and bright LED display. Separation protocols can be automatic stored.
  2. LCD touch screen for easy operation
  3. AC frequency motor drive
  4. Steel body, stainless steel chamber and imported key components for easy cleaning and durability. Multistage damping system for small vibration and low noise.
  5. Lid interlocking device greatly increases the operational safety. Air conduction system reduces much heat to protect the control board and avoid the aging of circuits.
  6. Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
  7. Unique air guide design for small temperature rise during separation to effectively protect samples.

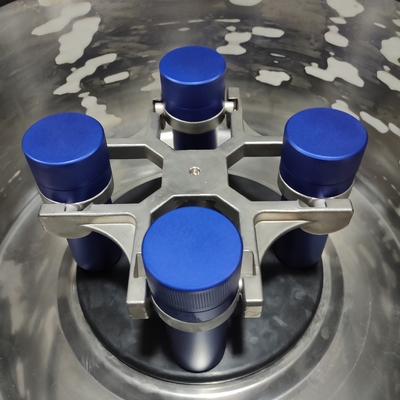

  8. swing-out rotor with Aluminum syringe is available
Specifications
Benchtop Low Speed Centrifuge, with rotor
Model TDL5B
Max.Speed (r/min) 5000
Max. RCF (x g) 4390
Max. Capacity (ml) 4 x 50
Control Microprocessor
Drive DC Brushless Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 100-5000
Speed Control Accuracy (r/min) ±30
Timer Range(min) 1-99
Noise (dB) ≤ 55
Power Supply V (Hz) 220/110 (50/60), 10A, single phase
Dim. (W x D x H) mm 415 x 560 x 355
Weight (kg) 44

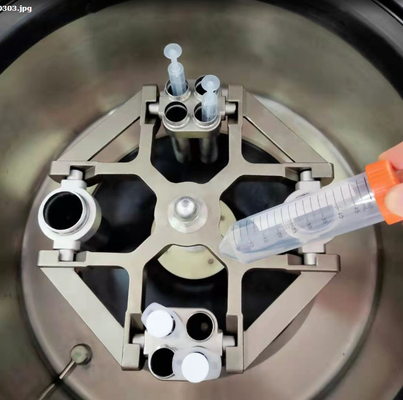

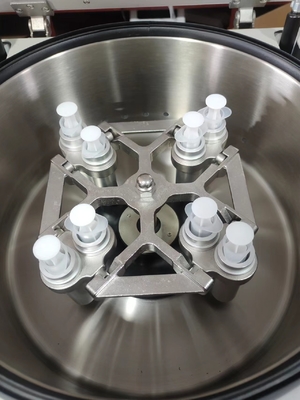

Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
PRP rotor 1 8 x 10/15 4000 2680 5-15 Available
PRP rotor 2 12 x 10/15 4000 2680 5-15 Available
Fat extration rotor 3 4 x 20 4000 2680 5-20 Available
Microplate Rotor 4 4 x 50 4000 2680 5-50 Available



Rotor with swing-out tube in 4*50ml syringe or 16*10ml syringe are available
