CenLee2300R Floor-type high-speed high-capacity refrigerated centrifuge

CenLee2300R Floor-type high-speed high-capacity refrigerated centrifuge

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 50 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
CENLEE2300R
Name:
CENLEE2300RLow Speed Large Capacity Centrifuge Blood Bank Centrifuge
Rotor Type:
Swing Out Rotor
Max. RPM::
23000r/min
Max. RCF::
33500 X G
Max. Capacity::
3000ml
Temp. Control::
N/A
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
High Light:

Horizontal Rotor Blood Bank Centrifuge

,

Blood Bank Centrifuge 3000ml

Product Description

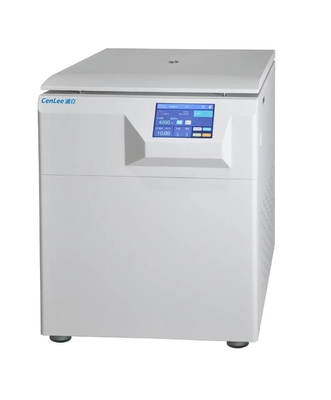

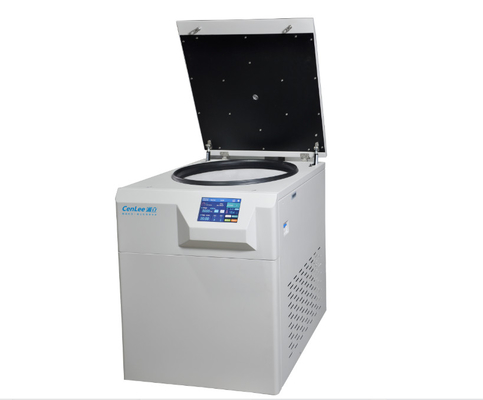

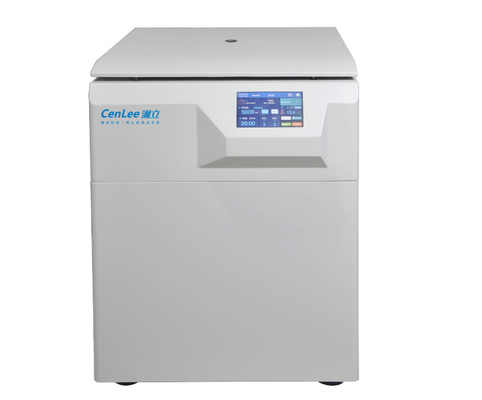

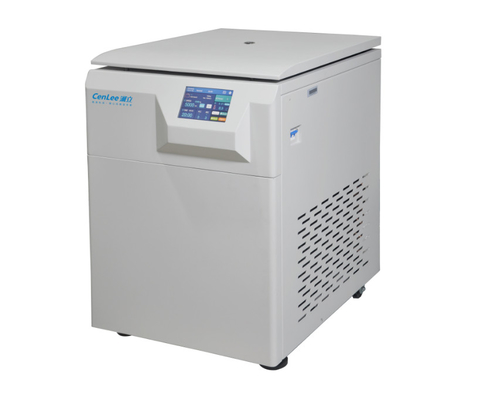

CenLee2300R Floor-type high-speed high-capacity refrigerated centrifuge

It’s widely used in radioimmunology, biochemistry, pharmaceutical, blood products and other industries.



Feature

1. Intelligent microcomputer control, system & function is more stable; Large LCD touch screen, convenient to read, store various data and easy operation

2. Frequency conversion AC motor drive, FOC vector control system is more accurate, low noise, energy saving and environmental protection.

3. It can not only be high-speed centrifugation, but also low-speed large-capacity centrifugation, and one machine is multi-functional.

4. Powder coating for machine shell, with uniform outer surface, anti-corrosion, scratch resistance, and the centrifugal cavity adopts #304 high-quality stainless steel material for long Gevity.

5. Rotor automatic identification technology, equipped with over-speed, over-temperature, door cover self-locking, stainless steel inner sleeve, three-level protective sleeve and other protection, to ensure the safety of people and machines

6.The parameters can be changed at any time during operation for instantaneous centrifugation and continuous centrifugation mode and without stopping machine



Technical parameter

Model CenLee2300R Timing range 0-999min
Maximum speed 23000r/min Power supply AC 220V 50Hz 16A
Maximum RCF 33500×g Machine noise ≤60dB(A)
Maximum capacity 3000ml Dimensions 620x740x810mm
Speed Accuracy ±10r/min Net Weight 150kg
Power 1700W Packing size 680x780x1000mm
Temperature range -20℃~+40℃ Temperature accuracy ±1℃

CENLEE2300R Rotor

Rotor type No. Capacity Max Speed(r/min) Max RCF(×g)
Main machine 23000R   23000 33500
Angle rotor NO.1 12×0.5ml 23000 26614
Angle rotor NO.2 12×1.5ml 21600 33500
Angle rotor NO.3 12×10ml 15000 19369
Angle rotor NO.4 6×50ml(Conical) 13000 18516
6×50ml(Round)

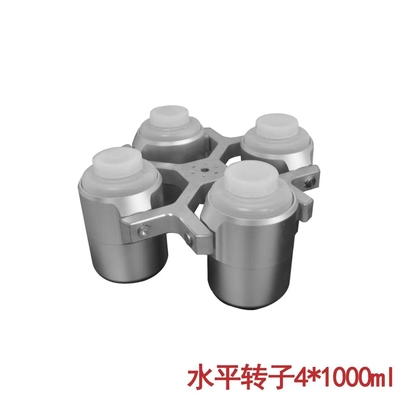

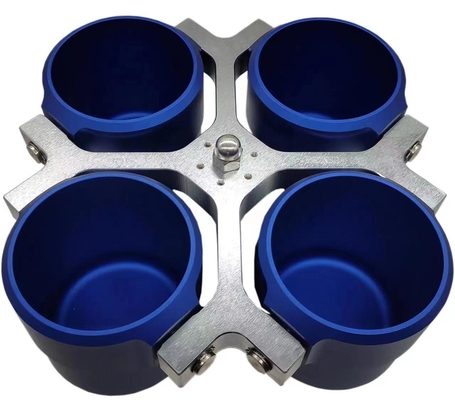

Swing out rotor body NO.5 4×750ml 4000 3500
Round cup 4×750ml
Swing out rotor NO.6 4×500ml 4000 3040
microplate 4×2×96 well
Swing out rotor 4×37×7ml
Swing out rotor 4×24×5ml(vacuum tube)
Square bucket Bucket x 4pcs
Angle rotor NO.7 24×1.5/2.2ml 16500 24958
microplate NO.8 2×2×96 well 4000 2200
Angle rotor NO.9 6×100ml 10000 11404
Angle rotor NO.10 4×250ml 10000 11960
