| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | Wooden Case |
| Supply Capacity: | 50 sets/month |
Technical Parameter
| Model | CTL550 | Timing range | 0~999min |
| Max speed | 5500r/min | Power supply | AC 220V 50Hz 10A |
| Max RCF | 5310×g | Machine noise | ≤58dB(A) |
| Max capacity | 2000ml (4×500ml) | Power | 400W |
| Speed Accuracy | ±20r/min | Dimensions | 460×590×405mm |
| Chamber diameter | Φ420 | Net Weight | 50kg |
CTL550 Rotor
| Rotor type | No. | Capacity | Max Speed (r/min ) | Max RCF(×g) |
| Main machine | CTL550 | 5500 | 5310 | |

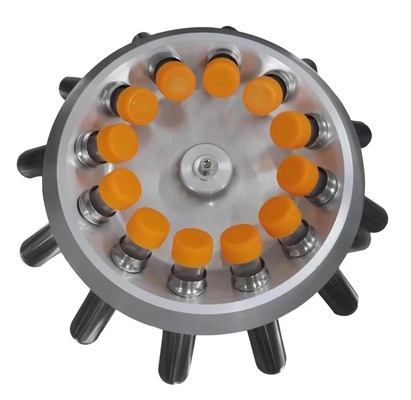

| Angle rotor | NO.1 | 12×15ml | 5500 | 5310 |

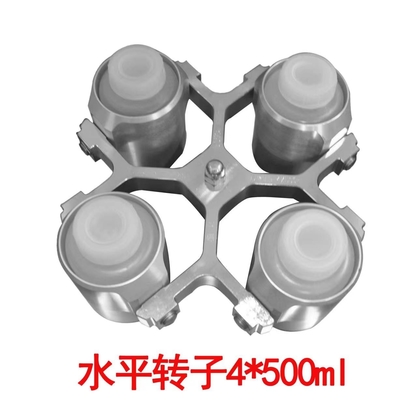

| Swing rotor | NO.2 | 4×500ml | 4000 | 3040 |
| Micro Plate rotor | 2×2×96 well | |||
| Swing cup | 4×24×7ml ( vacuum tube ) | |||
| Swing round bucket | 4×500ml | |||
| Adaptor | NO.2 | 4×300ml | 4000 | 3040 |
| 4×100ml | ||||
| 4×19×5ml | ||||
| 4×3×50ml (conical) | ||||
| 4×7×20ml | ||||
| 4×9×15ml (conical) | ||||

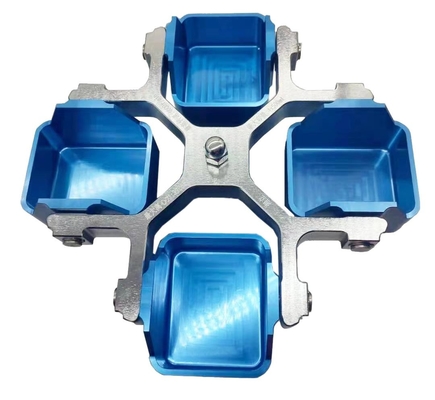

| Square buckets | 4x buckets | |||
| Adaptor | 4×10×15ml (conical) | |||
| 4×10×15ml | ||||
| 4×20×10ml | ||||
| 4×25×1.5ml | ||||
| 4×28×5ml | ||||
| 4×4×50ml (conical) | ||||
| 4×4×50ml | ||||
| 4×250ml | ||||
| Micro Plate rotor | NO.3 | 2×2×96 Well | 4000 | 2200 |
| Swing rotor | NO.4 | 4×100ml | 5000 | 4390 |
| Tubes | 4×100ml | |||
| Adaptor | 4×50ml (conical) | |||
| 4×50ml | ||||
| 4×30ml | ||||
| 4×20ml | ||||
| 4×15ml (conical) | ||||
| 4×15ml | ||||
| Adaptor | NO.4 | 4×3×5ml(vacuum tube) | 5000 | 4390 |
| 4×2×10ml | ||||
| 4×4×tube | ||||
| 4×3×1.5ml | ||||
| Swing rotor | NO.5 | 4×2×50ml | 4200 | 3100 |
| Tubes | 4×2×50ml | |||
| 4×2×100ml | ||||
| Adaptor | 8×50ml (conical) | |||
| 8×50ml | ||||
| 8×30ml | ||||
| 8×20ml | ||||
| 8×15ml (conical) | ||||
| 8×15ml | ||||
| 8×3×5ml(vacuum tube) | ||||
| 8×2×10ml | ||||
| 8×4×tube | ||||
| 8×3×1.5ml | ||||
| Tubes | 4×8×15ml | |||
| Adaptor | 4×8×10ml | |||
| 4×8×7ml | ||||
| 4×8×5ml | ||||
| Bucket | 4×16×5ml/7ml | |||
| 4×12×5ml/7ml |
