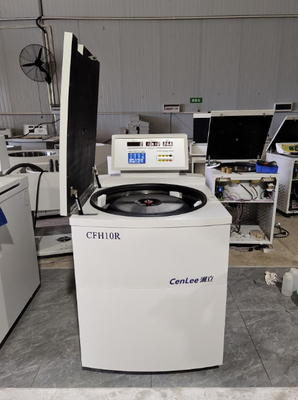

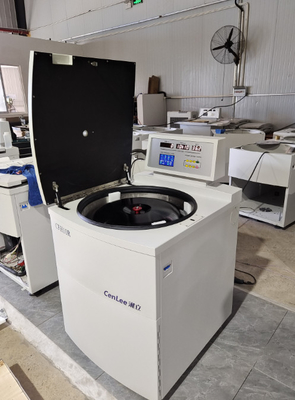

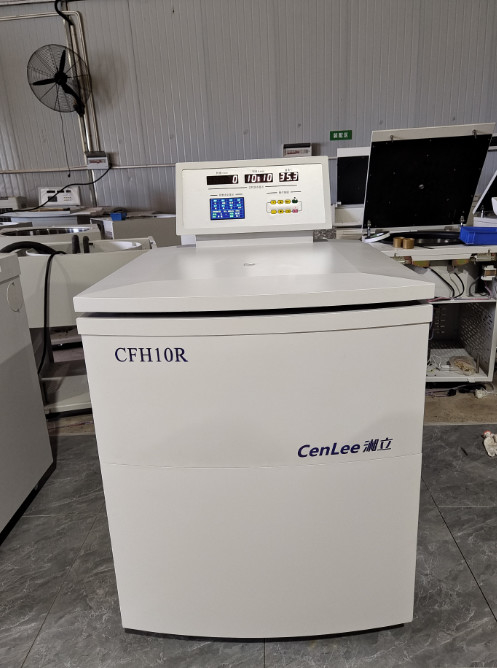

High Speed Floor Standing Refrigerated Centrifuge In10000rpm With Rotor Capacity 6000ml(6*1000ml)
Features
1. LCD and LED display, microprocessor control, hand touch panel, indicating setting parameters and actual parameters at the same time.
2. High torque brushless inverter motor drive,European imported bearings, stable operation and maintenance-free.
3. Imported drive system and automatic control system to ensure steady and reliable operation.
4. Over-temperature and over-speed protection, electronic locking, imbalance detection.
5. Can set 40 procedures, parameters can be modified during running.
6. 10 levels speed-up and speed-down control.
7. Pre-cooling design of centrifugal cavity, fast cooling.
8. Proprietary SCT speed control technology, fast lifting speed, time saving and high efficiency.
9. Unique SBT control technology and rotor design to reduce resuspension
Technical Parameter
| Model |
CFH10R |
Temperature accuracy |
±1℃ |
| Maximum speed |
10000r/min |
Timer range |
0-999min |
| Maximum RCF |
18300xg |
Voltage |
AC220V50Hz30A |
| Maximum capacity |
6000ml |
Power |
5.5KW |
| Speed Accuracy |
±20r/min |
Noise |
≤65dB(A) |
| Temperature range |
-20℃~+40℃ |
Dimensions |
820×710×1150mm |
| Gross Weight |
268kg |
CFH10R rotor
| Rotor type |
No. |
Capacity |
Max Speed(r/min) |
Max RCF(×g) |
| Main machine |
CFH10R |
|
10000 |
18300 |
| Angle rotor |
NO.1 |
6×300ml |
10000 |
18300 |
| Angle rotor |
NO.2 |
6×500ml |
8000 |
11680 |

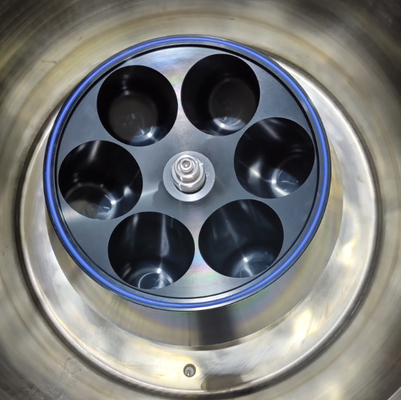

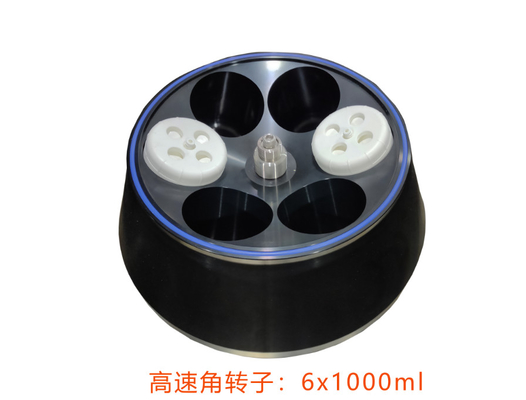

| Angle rotor |
NO.3 |
6×1000ml |
8000 |
12166 |
| Swing out rotor |
NO.4 |
6×1000ml |
4200 |
5100 |
| Swing out rotor |
NO.5 |
4×1000ml |
4200 |
4430 |
