Medical Centrifuge Machine
Created with Pixso.

RCF/PRM Mode DC Brushless Motor Drive Blood Card Medical Centrifuges Blood Plasma Samples Centrifuge

RCF/PRM Mode DC Brushless Motor Drive Blood Card Medical Centrifuges Blood Plasma Samples Centrifuge

Brand Name: Cenlee
Model Number: CTD-24K
MOQ: 1 set
Price: negotiable
Supply Ability: 50 sets/month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Name:
Cenlee Blood Card Medical Centrifuges 110V 24 Cards Blood Plasma
Max. RPM::
4000r/min
Max. RCF::
1790 X G
Max. Capacity::
24 Cards
Temp. Control::
N/A
Cards:
24
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
Highlight:

PRM Mode Medical Centrifuges

,

RCF Mode Medical Centrifuges

,

DC Brushless Plasma Samples Centrifuge

Product Description

RCF/PRM Mode DC Brushless Motor Drive Blood Card Medical Centrifuges,Blood Plasma Samples Centrifuge, Beauty Centrifuge



  1. Mainly used for testing of blood serum, blood type, mingle column, immunodetection.
  2. Microprocessor-based controlled and DC brushless motor drive with user-friendly operational panel.
  3. In automatic RCF/PRM mode, you can set runs to a desired speed or g-force and moniter them in real time.
  4. Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
  5. Standard programs for blood type, serum testing idea for your clinical research and tests.
Specifications
Blood Card Centrifuge
Model CTD-12K CTD-24K
Max.Speed (r/min) 4000 4000
Max. RCF (x g) 1790 1790
Max. Capacity 12 cards 24 cards
Control Microprocessor Microprocessor
Drive DC Brushless Motor DC Brushless Motor
Speed Range (r/min) 100-4000 100-4000
Speed Control Accuracy (r/min) ±20 ±20
Timer Range(min) 1-99 1-99
Noise (dB) ≤ 55 ≤ 55
Power Supply V (Hz) 220/110 (50/60), single phase 220/110 (50/60), single phase
Dim. (W x D x H) mm 325 x 400 x 240 325 x 400 x 240
Weight (kg) 14 16
Rotors
Rotor Type Rotor No. Capacity

Max. Speed

(rpm)

Max. RCF

(x g)

Main Unit

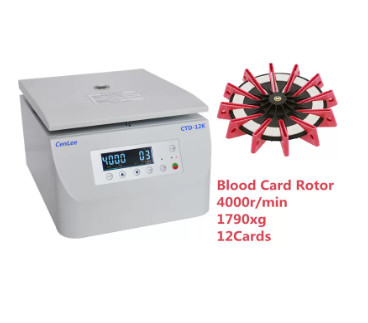

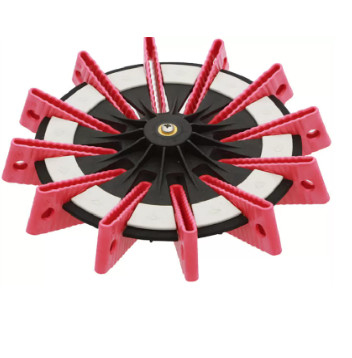

Blood Card Rotor 1 12 blood cards 4000 1790 CTD-12K
Blood Card Rotor 1 24 blood cards 4000 1790 CTD-24K
