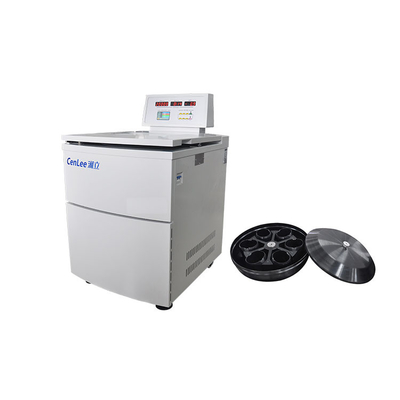

Large High Speed Refrigerated Centrifuge
Centrifuge 10000 rpm uses the principle of centrifugal sedimentation to separate, concentrate or purify cells (particles) with different densities in the solution under the action of centrifugal force.
Technical Parameter
| Model | CFH10R | Temperature accuracy | ±1℃ |
| Maximum speed | 10000r/min | Timer range | 0-999min |
| Maximum RCF | 18300xg | Voltage | AC220V50Hz30A |
| Maximum capacity | 6000ml | Power | 5.5KW |
| Speed Accuracy | ±20r/min | Noise | ≤65dB(A) |
| Temperature range | -20℃~+40℃ | Dimensions | 820×710×1150mm |
| Gross Weight | 268kg | ||
CFH10R centrifuge 10000 rpm Rotor
| Rotor type | No. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Main machine | CFH10R | 10000 | 18300 | |

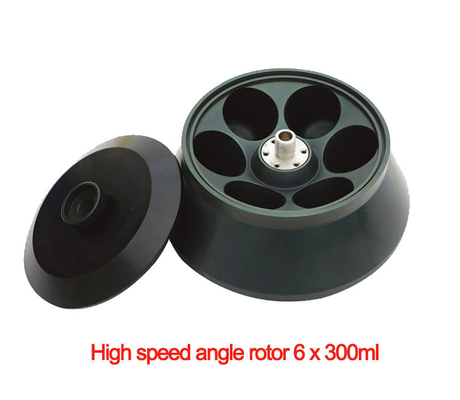

| Angle rotor | NO.1 | 6×300ml | 10000 | 18300 |
| Angle rotor | NO.2 | 6×500ml | 8000 | 11680 |
| Angle rotor | NO.3 | 6×1000ml | 8000 | 12166 |
| Swing out rotor | NO.4 | 6×1000ml | 4200 | 5100 |
| Swing out rotor | NO.5 | 4×1000ml | 4200 | 4430 |
Features
1. Touch panel, LED digital or LCD large screen liquid crystal display, parameters can be changed arbitrarily during operation.
2. Adopt high-power brushless frequency conversion speed motor, European imported ultra-high speed bearings, and equipped with the most advanced frequency conversion speed controller.
3. Adopting imported compressor unit (refrigerant R404a), the temperature can be adjusted arbitrarily, high temperature control precision , small vibration, low noise.
4. The operating program can be edited, stored and desirable: the user can set 9 programs for daily operation; 0-9 gear up/down rate, and 40 custom working modes can be stored.
5. The pre-cooling design of the centrifuge chamber has fast cooling, fast lifting speed, time-saving and high-efficiency.
6. System double safety door lock; over-temperature, over-speed, door self-locking, imbalance and other protection functions and fault self-diagnosis system.
7. Pulse function, short centrifugation, convenient for diverse centrifugation.
Product details:
6 X 500 ml angle rotor

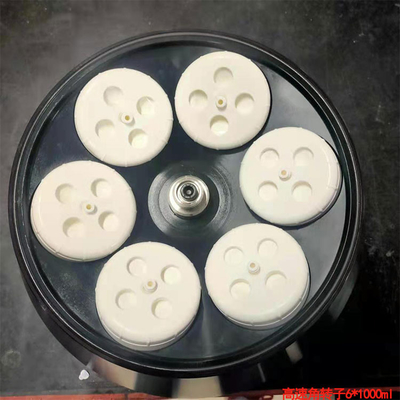

6 x 1000 ml angle rotor

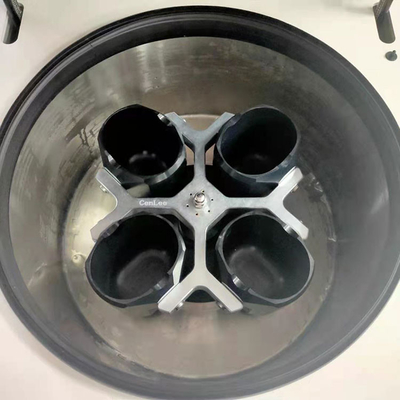

4 x 1000 ml swing out rotor
