products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Floor Standing Centrifuge
Created with Pixso.

64800xg 4L Floor Standing Centrifuge Superspeed 25000r/Min Imbalance Protection

64800xg 4L Floor Standing Centrifuge Superspeed 25000r/Min Imbalance Protection

Brand Name: Cenlee
Model Number: CFH2500R
MOQ: 1 set
Price: negotiable
Supply Ability: 50 sets/month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Name:
CFH2500R Superspeed Refrigerated Centrifuge Floor Standing Centrifuge
Protections:
Over-temperature Detection, Over-speed Detection,lid Lock System, Imbalance Protection
Max. RPM::
25000
Max. RCF::
64800 X G
Max. Capacity::
4 X 1000ml
Temp. Control::
-20oC-40oC
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
Highlight:

64800xg Floor Standing Centrifuge

,

4L Floor Standing Centrifuge

,

25000r/min high speed centrifuge

Product Description

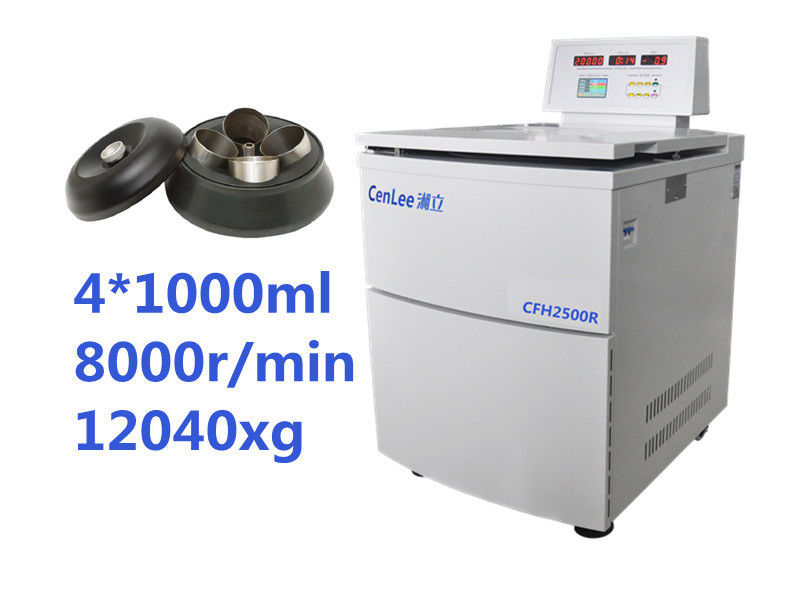

CFH2500R Superspeed Refrigerated Centrifuge Floor Standing Centrifuge



  • Controlled by microcomputer with user-friendly panel and LED and LCD dual display. run control by speed or RCF.
  • Drived by the high frequency maintenance – free motor with superspeed draft for stable running at high speed.
  • Unique damping system and CFC-free compressor combine to ensure small vibration and low noise.
  • Steel body and stainless steel centrifugal chamber for easy cleaning and durability.
  • Designed with various protection devices for maximum operational safety, such as over-temperature detection, over-speed detection,lid lock system, imbalance protection and life calculation of unit and rotors, etc.
  • Pre-cooling cools the chamber quickly. 10 pre-set acceleration/braking rates, or its time direct input ensures the best seperation even for the most delicate samples.
  • Protocols memory function can store up to 40 runs for your repetitive separation.
  • Hold on function for short and quick centrifugation.
  • Manual reset function. It can euipped with PC interface to achieve interconnection between the centiruge and computer for easy supervision.
Specifications
Superspeed Refrigerated Centrifuge, without rotor
Model CFH2500R
Max.Speed (r/min) 25000
Max. RCF (x g) 64800
Max. Capacity (ml) 4000
Control Microprocessor
Drive AC Frequency Conversion Motor with large torque
Accel/Decel Rates 10/10
Speed Range (r/min) 100-25000
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(hr:min:sec) 0-99:59:59
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 35A, 3 phase
Dim. (W x D x H) mm 710 x 820 x 1150
Weight (kg) 320
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes

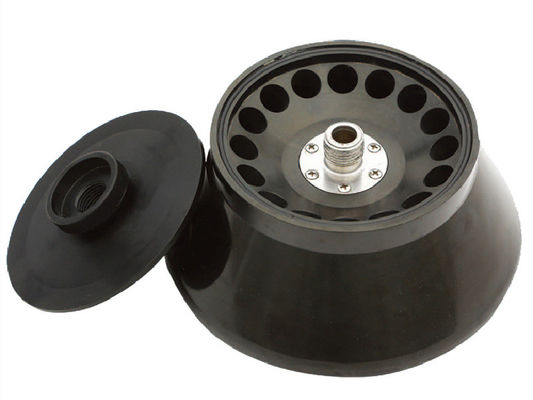

Fixed Angle Rotor 1 24 x 1.5/2.2 25000 64800 0.2-2.2 Available
Fixed Angle Rotor 2 18 x 10 23000 60460 10 N/A
Fixed Angle Rotor 3 8 x 50 21000 52356 50 N/A
Fixed Angle Rotor 4 6 x 250 14000 30070 250 N/A
Fixed Angle Rotor 5 6 x 500 10000 17700 500 N/A
Fixed Angle Rotor 6 4 x 1000 8000 12040 1000 N/A

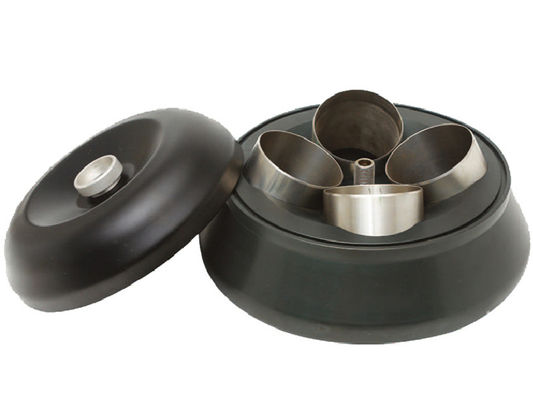

Swing-out Rotor(750ml) with round buckets 7 4 x 750 5000 5470 5-750 Available
Swing-out Rotor(500ml) with microplate carries 8 4 x 2 x 96wells 4000 3040 0.2 Available
Fixed Angle Rotor 9 12 x 50(conical) 14000 30070 50 N/A
