Superspeed Refrigerated Centrifuge Floor Standing Centrifuge 25000rmp

Place of Origin: China
Brand Name: Cenlee
Certification: ISO9001/13485，CE
Model Number: CFH2500R
Product Details
Place of Origin:
China
Brand Name:
Cenlee
Certification:
ISO9001/13485，CE
Model Number:
CFH2500R
Minimum Order Quantity:
1 set
Price:
negotiable
Standard Packaging:
Wooden Case
Supply Ability:
50 sets/month
Specifications
Name:
CFH2500R Superspeed Refrigerated Centrifuge Floor Standing Centrifuge
Accel/Decel Rates:
10/10
Max. RPM::
25000
Max. RCF::
64800 X G
Max. Capacity::
4 X 1000ml
Temp. Control::
-20oC-40oC
Highlight:

3PH Floor Standing Centrifuge

,

10 Accel Rate Floor Standing Centrifuge

,

25000RPM high speed centrifuge machine

Product Description

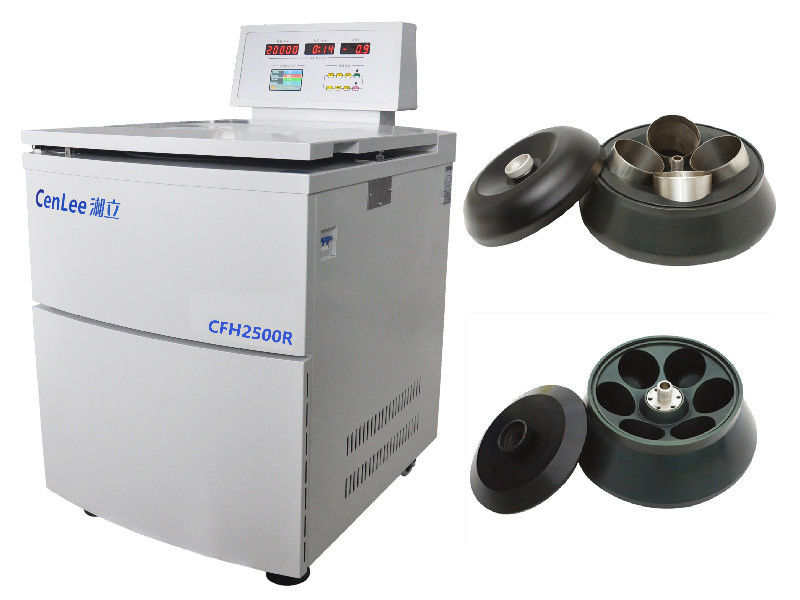

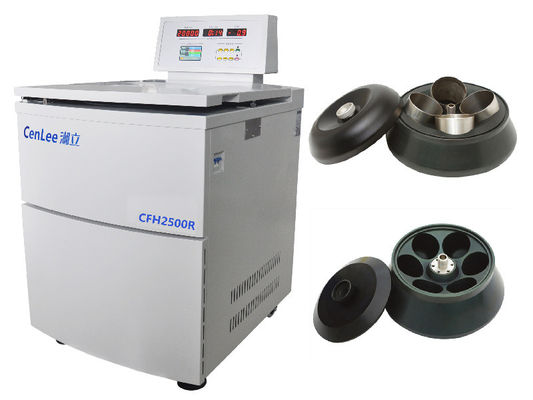

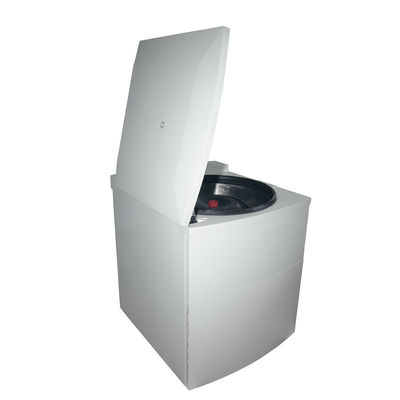

CFH2500R Superspeed Refrigerated Centrifuge Floor Standing Centrifuge



  1. Controlled by microcomputer with user-friendly panel and LED and LCD dual display. run control by speed or RCF.
  2. Drived by the high frequency maintenance – free motor with superspeed draft for stable running at high speed.
  3. Unique damping system and Non-CFC compressor (EU made) to ensure small vibration and low noise.
  4. Steel body and stainless steel centrifugal chamber for easy cleaning and durability.
  5. Designed with various protection devices for maximum operational safety, such as over-temperature detection, over-speed detection,lid lock system, imbalance protection and life calculation of unit and rotors, etc.
  6. Pre-cooling cools the chamber quickly. 10 pre-set acceleration/braking rates, or its time direct input ensures the best seperation even for the most delicate samples.
  7. Protocols memory function can store up to 40 runs for your repetitive separation.
  8. Hold on function for short and quick centrifugation.
  9. Manual reset function. It can euipped with PC interface to achieve interconnection between the centiruge and computer for easy supervision.
Specifications
Superspeed Refrigerated Centrifuge, without rotor
Model CFH2500R
Max.Speed (r/min) 25000
Max. RCF (x g) 64800
Max. Capacity (ml) 4000
Control Microprocessor
Drive AC Frequency Conversion Motor with large torque
Accel/Decel Rates 10/10
Speed Range (r/min) 100-25000
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(hr:min:sec) 0-99:59:59
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 35A, 3 phase
Dim. (W x D x H) mm 710 x 820 x 1150
Weight (kg) 320

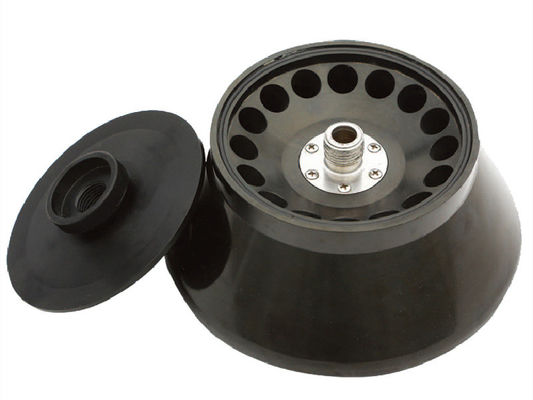

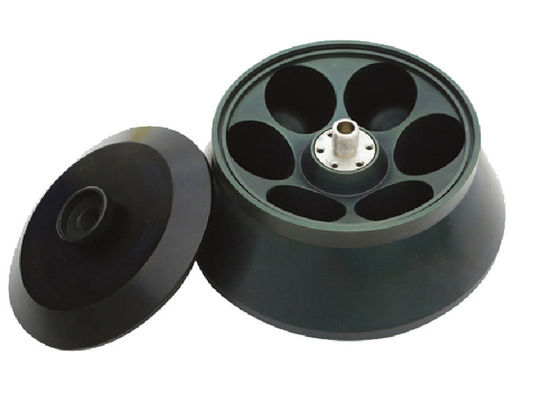

Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

 Adapters for smaller tubes
Fixed Angle Rotor 1 24 x 1.5/2.2 25000 64800 0.2-2.2 Available
Fixed Angle Rotor 2 18 x 10 23000 60460 10 N/A
Fixed Angle Rotor 3 8 x 50 21000 52356 50 N/A
Fixed Angle Rotor 4 6 x 250 14000 30070 250 N/A
Fixed Angle Rotor 5 6 x 500 10000 17700 500 N/A
Fixed Angle Rotor 6 4 x 1000 8000 12040 1000 N/A
Swing-out Rotor(750ml) with round buckets 7 4 x 750 5000 5470 5-750 Available
Swing-out Rotor(500ml) with microplate carries 8 4 x 2 x 96wells 4000 3040 0.2 Available
Fixed Angle Rotor 9 12 x 50(conical) 14000 30070 50 N/A
