Benchtop high speed refrigerated centrifuge machine 16000rpm

Benchtop high speed refrigerated centrifuge machine 16000rpm

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 200 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
CenLee16R
Name:
16R Benchtop High Speed Refrigerated Centrifuge
Weight (kg):
68
Max. RPM::
16600
Max. RCF::
21532 X G
Max. Capacity::
6 X 100ml
Temp. Control::
-20oC-40oC
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
200 sets/month
Highlight:

600ml Benchtop Centrifuge Machine

,

68kg High Speed Refrigerated Centrifuge

,

16600RPM High Speed Refrigerated Centrifuge

Product Description

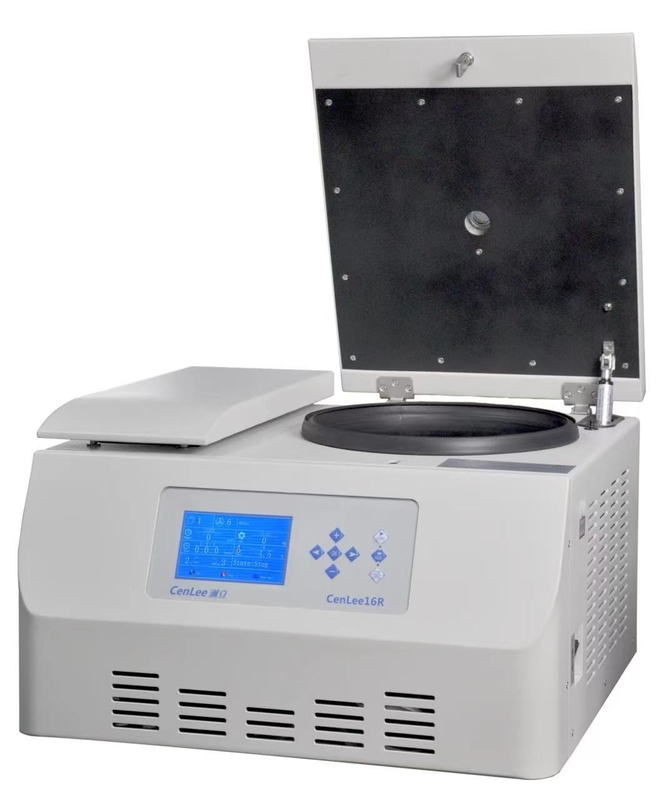

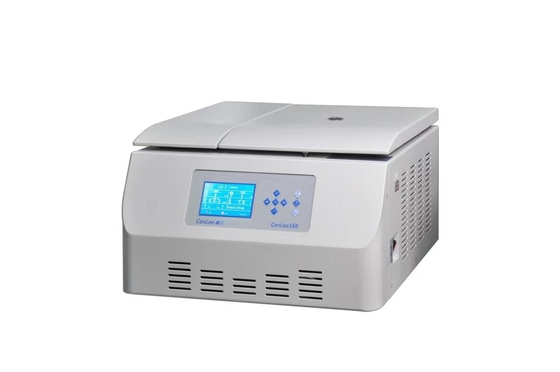

16R Benchtop High Speed Refrigerated Centrifuge

  1. Microprocessor-based controlled with user-friendly operational panel. Frequency converter motor drived for low noise and free maintanance.
  2. Easy to read digital display and automatic memory for protocols, easy for the repetitive operation.
  3. In automatic RCF/PRM mode, you can set runs to a desired speed or g-force.
  4. 9 accelaration and 10 braking rates (0 is for free brake) and 3-level damping system ensure the best seperation result.
  5. Liquid seeping prevention with unique rubber isolation gasket firmly seals the motor for protecting motor and electronic components.
  6. Low-noise output lower than 55db offer you a comfortable reseach environment.
  7. Powerful refrigeration system with imported environmental refrigerants ensure high temperature control accuracy. Pre-cooling design can give fast cooling for the chamber.

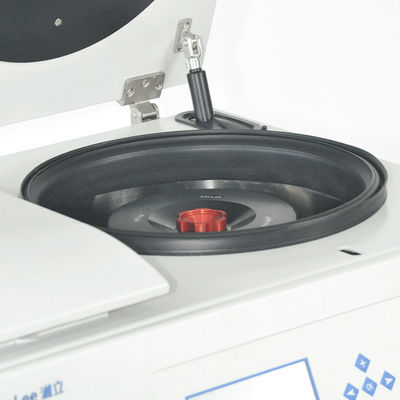

  8. Designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
Specifications
Benchtop High Speed Medium Capacity Refrigerated Centrifuge, with rotor
Model CenLee16R
Max.Speed (r/min) 16600
Max. RCF (x g) 21532
Max. Capacity (ml) 6 x 100
Control Microprocessor
Drive AC Frequency Conversion Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 300-20000
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(min:sec) 0-99:59
Noise (dB) ≤ 55
Power Supply V (Hz) 220/110 (50/60), 10A, single phase
Dim. (W x D x H) mm 550 x 530 x 360
Weight (kg) 68
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes

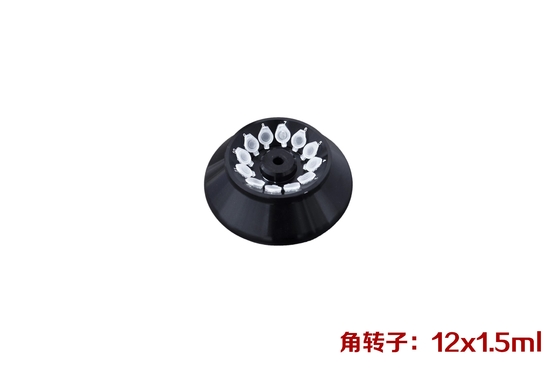

Fixed Angle Rotor 1 12 x 1.5/2.2 16600 19200 0.5-2.2 Available
Fixed Angle Rotor 2 12 x 5 15000 16099 0.5-5 Available
Fixed Angle Rotor 3 12 x 10 13000 16249 0.5-10 Available
Fixed Angle Rotor 4 8 x 15(conical) 11000 12580 0.5-15 Available
Fixed Angle Rotor 5 8 x 20 13000 17194 0.5-20 Available

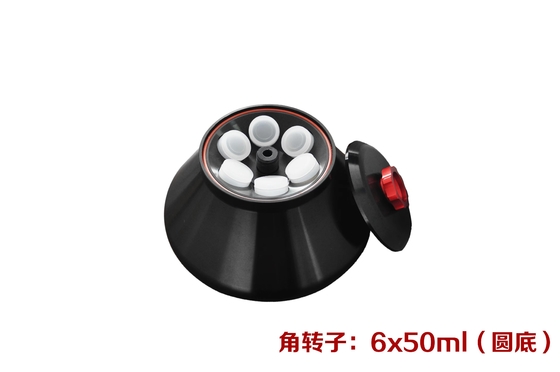

Fixed Angle Rotor 6 6 x 50 11000 13122 0.5-50 Available
Fixed Angle Rotor 7 24 x 1.5/2.2 15000 21532 0.5-2.2 Available
Fixed Angle Rotor 8 4 x 100 10000 10845 0.5-100 Available
Fixed Angle Rotor 9 48 x 0.5 12000 12650 0.5 Unavailable
Fixed Angle Rotor 10 6 x 100 10000 11404 0.5-100 Available
Fixed Angle Rotor 11 48 x 1.5/2.2 12000 15280 0.5-2.2 Available
