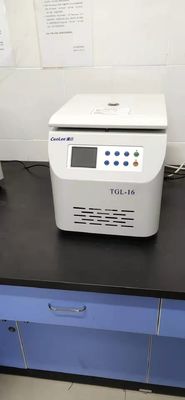

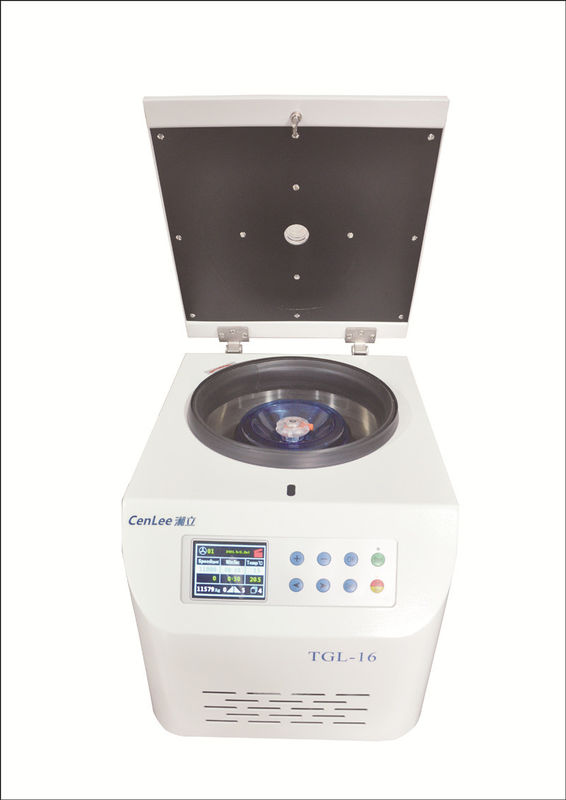

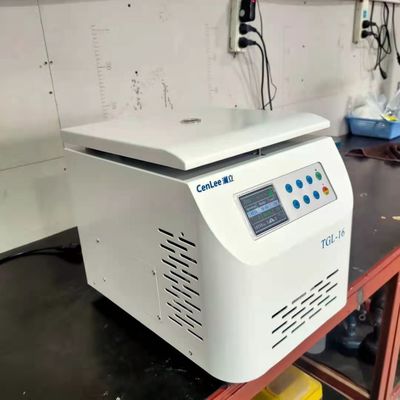

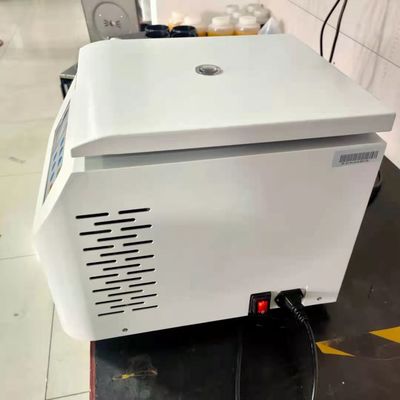

40oC 16000rpm Refrigerated Benchtop Centrifuge Microcentrifuge 295mm Width

40oC 16000rpm Refrigerated Benchtop Centrifuge Microcentrifuge 295mm Width

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 500 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
TGL-16
Name:
TGL-16 Benchtop High Speed Refrigerated Microcentrifuge Refrigerated Benchtop Centrifuge
Dim. (W X D X H) Mm:
295x 400 X 360
Max. RPM::
16000rpm
Max. RCF:
21532 X G
Max. Capacity:
24 X 2.2ml
Temp. Control::
-20oC-40oC
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
500 sets/month
High Light:

40oC Refrigerated Benchtop Centrifuge

,

16000rpm Refrigerated Benchtop Centrifuge

,

295mm Width refrigerated microcentrifuge

Product Description
TGL-16 Benchtop High Speed Refrigerated Microcentrifuge Refrigerated Benchtop Centrifuge
  • Microprocessor-based controlled and frequency conversion motor drived. Its motor is maitenance – free and run quietly even at high speeds.
  • A memory function for parameters is available for repetitive seperation operation.
  • Simply panel with Large LCD display for user-friendly operation. Both set paramenters and actural run conditions can be dispayed and modified in real time.
  • With unique damping system, 10 acceleration and braking rates to fast for efficient sample separation, or slow for protection of delicate samples.
  • Low-noise output lower than 55dB offer you a comfortable reseach environment.
  • Powerful refrigeration system with imported environmental refrigerants ensure high temperature control accuracy.
  • Designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
  • Automatic rotor recognization fuction ensures the maximum speed are not exceeded to protect the rotor and sample for safer seperation.
Specifications
Microlitre Refrigerated Centrifuge, with rotor
Model TGL-16
Max.Speed (r/min) 16000
Max. RCF (x g) 21532
Max. Capacity (place x ml) 24 x 1.5/2.2
Control Microprocessor
Drive AC Frequency Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 100-16000
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy ±1
Timer Range (min) 1-999
Noise (dB) ≤ 55
Power Supply V (Hz) 220/110V (50/60), 10A
Dim. (W x D x H) mm 295x 400 x 360
Weight (kg) 36
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 24 x 1.5/2.2 15000 21532 0.25-2.2 Available
Fixed Angle Rotor 2 12 x 1.5/2.2 16000 17800 0.25-2.2 Available
Fixed Angle Rotor 3 18 x 5 12000 10142 0.25-5 Available
Fixed Angle Rotor 4 4 x 8 x 0.2 strip 15000 13800 0.2 Unavailable
