Medical Centrifuge Machine
Created with Pixso.

8A Streamline Low Speed Centrifuges , Tabletype Laboratory Centrifuge Machine

8A Streamline Low Speed Centrifuges , Tabletype Laboratory Centrifuge Machine

Brand Name: Cenlee
Model Number: TD5G
MOQ: 1 set
Price: negotiable
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Name:
8A Streamline Low Speed Centrifuges , Tabletype Laboratory Centrifuge Machine
Max. RPM::
5000rpm
Max. RCF::
4020 X G
Max. Capacity::
300ml
Temp. Control::
N/A
Feature:
Streamline
Packaging Details:
Wooden Case
Supply Ability:
500 sets/month
Highlight:

8A Low Speed Centrifuges

,

streamline Low Speed Centrifuges

,

Tabletype Laboratory Centrifuge Machine

Product Description

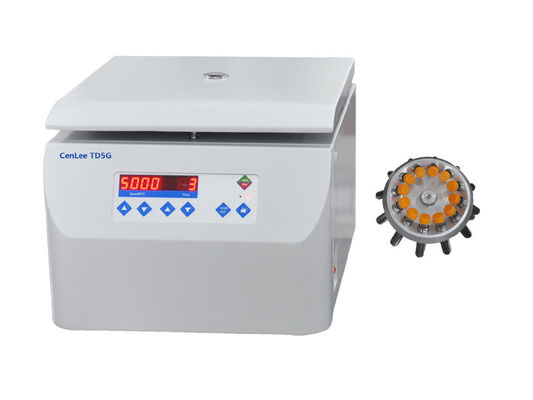

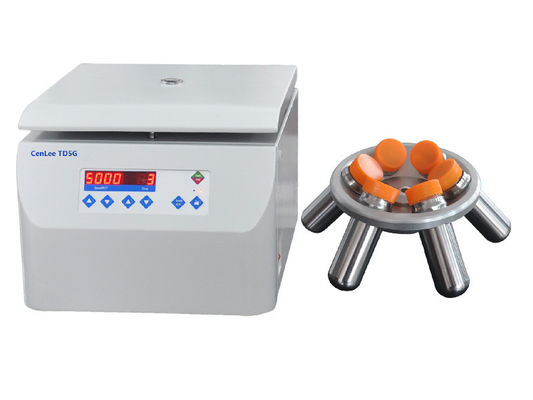

TD5G tabletype low speed centrifuge Laboratory Centrifuge Machine

  • Used  in biochemistry laboratories, clinical testing in hospitals and so on.
  • Microprocessor-based controlled and DC brushless motor drived for smooth running and low noise.
  • Steel boby with compact and streamline design and unique damping system for automatic balancing function.
  • User-friendly operational panel wich automatic RCF/RPM mode.
  • Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
  • Ventilated centrifuge for small temperature rise during seperation.
  • Various rotors designed for different capacity tubes for your option.
Specifications
Small Low Speed Centrifuge, with rotor
Model TD5G
Max.Speed (r/min)  5000
Max. RCF (x g) 4020
Max. Capacity (ml) 300
Control Microprocessor
Drive DC Brushless Motor
Speed Range (r/min)  100-5000
Speed Control Accuracy (r/min)  ±30
Timer Range(min) 1-99
Noise (dB) ≤ 60
Power Supply V (Hz) 220/110 (50/60), 8A, single phase
Dim. (W x D x H) mm 355 x 490 x 280
Weight (kg) 22

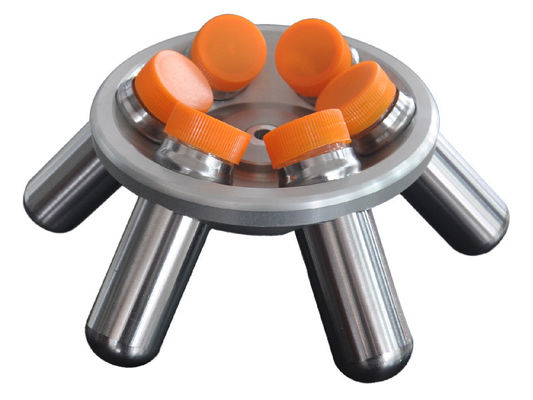

Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(r/min)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 6 x 50 5000 4020 1.5-50 Available
Fixed Angle Rotor 2 12 x 15 5000 4020 1.5-15 Available
