| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | 3-ply wooden case |
| Supply Capacity: | 500 sets per month |

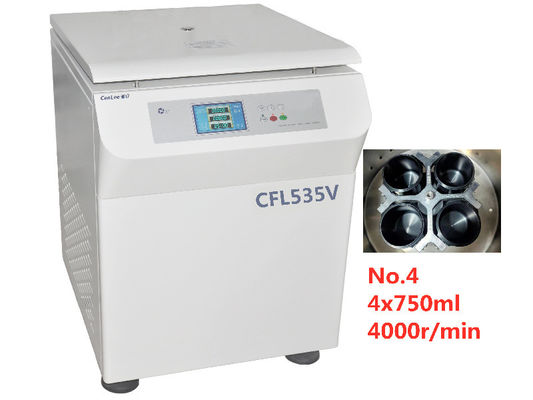

CFL535V Low Speed Large Capacity Centrifuge
1. Outstanding versatility for your wide applications
◆Broad rotor and adapter selection to spin all commonly used tubes, bottles and blood bags.
2. Advanced control system for excellent separation
◆Microprocessor controlled. With auto-memory function its data base can store the custom operational values up to 25 programs.
◆With short running function for your quick diversification centrifugation.
3. User-friendly operation and information rich display
◆ Parameters are quickly and effortlessly inputted through the uncomplicated keypad interface and displayed on the LCD panel. You can start it directly with RCF.
◆ You can input the parameters quickly by accessing stored programs.
◆ The LCD panel concurrently displays all experimentation parameters including diagnostic information as it occurs.
◆Once centrifugation has commenced, a real time graphic profile of the centrifugation status is displayed.
◆ During centrifugation the operator can change the set values including speed or RCF, time if needed.
4. Many detection functions for maximum operational safety
◆With many safety devices such as lid lock, over-speed, unbalanced, motor detection, furthermore maximum speed control and life span calculation on rotor.
◆The rotor can be autoclavable at 121℃ for sterilization.
5. Quality components for reliable and long-lasting work
◆Steel case, stainless steel chamber for easy cleaning.
◆AC frequency conversion motor with large torque for free maintenance and its stable running.
6. Low noise and tiny vibration
◆Special air guiding design with noise abating insulation and lower noise fan combine to reduce the audible operating noise.
◆Three levels damping system for reducing vibration ensures its steady operation.
Specifications:
| Low Speed Large Capacity Centrifuge , without rotor | |
| Model | CFL535V |
| Max.Speed (r/min) | 5350 |
| Max. RCF (x g) | 5030 |
| Max. Capacity (ml) | 3000(4 x 750) |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor with large torque |
| Accel/Decel | 9/10 rates |
| Programmability | 25 programs |
| Speed Range (r/min) | 100-5350 |
| Speed Control Accuracy (r/min) | ±20 |
| Timer Range(min:sec) | 0-99:59 |
| Noise (dB) | ≤ 55 |
| Power Supply V (Hz) | 220/110 (50/60), 15A, single phase |
| Dim. (W x D x H) mm | 550 x 660 x 810 |
| Weight (kg) | 120 |
Rotors & Adapters
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 12 x 15 | 5350 | 5030 | 1.5-15 | Available |
| Swing-out Rotor with round buckets | 2 | 4 x 500 | 4000 | 3040 | 1.5-500 | Available |
| Adapters | 4 x 1 x 300 | 300 | -- | |||
| 4 x 1 x 100 | 100 | -- | ||||
| 4 x 3 x 50 | 50 | -- | ||||
| 4 x 7 x 20 | 20 | -- | ||||
| 4 x 9 x 15 | 15 | -- | ||||
| 4 x 19 x 5 | 5 | -- | ||||
| Swing-out Rotor with round buckets | 4 x 2 x 96-hole micro plate | 4000 | 3040 | -- | -- | |
| Swing-out Rotor with rectangular baskets | 4pcs | 4000 | 3040 | -- | -- | |
| Adapters | 4 x 250 | 250 | -- | |||
| 4 x 4 x 50(conical) | 50 | -- | ||||
| 4 x 4 x 50 | 50 | -- | ||||
| 4 x 10 x 15(conical) | 15 | -- | ||||
| 4 x 10 x 15 | 15 | -- | ||||
| 4 x 20 x 10 | 10 | -- | ||||
| 4 x 28 x 5 | 5 | -- | ||||

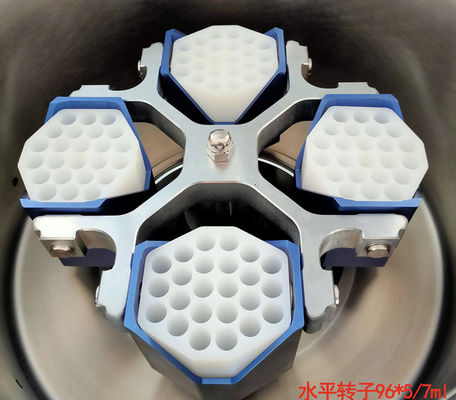

| Swing-out Rotor with Tube holders | 4 x24 x5 | 4000 | 3040 | 5 | Unavailable | |
| Swing-out Rotor with Tube holders | 4 x 37 x 7 | 4000 | 3040 | 7 | Unavailable | |
| Swing Plate Rotor with plate basket | 3 | 2 x 2 x PCR plate/MTP/DWP | 4000 | 2200 | 96-hole | Unavailable |
| Swing-out Rotor with round buckets | 4 | 4 x 750 | 4000 | 3500 | 15-750 | --- |
| Adapters | 4 x 1 x 500(conical) | 500 | -- | |||
| 4 x 1 x 500 | 500 | -- | ||||
| 4 x 1 x 300 | 300 | -- | ||||
| 4 x 2 x100 | 100 | -- | ||||
| 4 x4 x50(conical) | 50 | -- | ||||
| 4 x4 x50 | 50 | -- | ||||
| 4 x 10 x20 | 20 | -- | ||||
| 4 x 14 x 15(conical) | 15 | -- | ||||
| 4 x 19 x 15 | 15 | -- | ||||
| Swing-out Rotor with round buckets | 5 | 6 x 250 | 5000 | 3580 | 5-250 | Available |
| Adapters | 6 x 1 x 300 | 5000 | 5925 | 300 | -- | |
| 6 x 1 x 100 | 100 | -- | ||||
| 6 x 7 x 20 | 20 | -- | ||||
| 6 x 9 x 15 | 15 | -- | ||||
| 6 x 19 x 5 | 5 | -- | ||||
| Swing-out Rotor with round buckets | 6 | 4 x 250 | 4200 | 3500 | 1.5-250 | Available |
| Adapters | 4 x 1 x 100 | 100 | -- | |||
| 4 x 1 x 50(conical) | 50 | -- | ||||
| 4 x 1 x 50 | 50 | -- | ||||
| 4 x 4 x 15(conical) | 15 | -- | ||||
| 4 x 6 x 15 | 15 | -- | ||||
| 4 x 4 x 20 | 20 | -- | ||||
| 4 x 7 x 10 | 10 | -- | ||||
| 4 x10 x 5 | 5 | -- | ||||
| 4 x 8 x 1.5/2.0 | 1.5/2.0 | -- |
