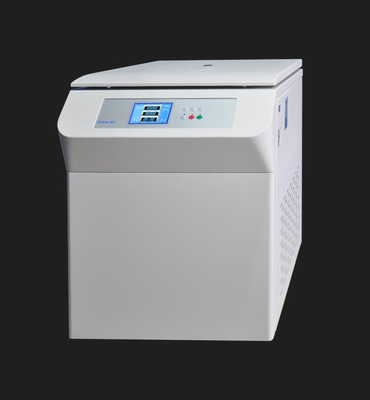

TMF96R large capacity Floor Type Refrigerated Centrifuge, blood bank centrifuge
100% Automatic cap off centrifug
Features
1. Microcomputer control,LCD display.
2. AC brushless frequency conversion motor drive with low noise.
3. The durable #304 food grade stainless steel centrifugal chamber
4. 100% automatic blood tube capping off for high efficiency contrast to cap removal manually.
5. Shock absorber to ensure good separation effect
6. CFC-free compressor unit (EU made compressor), fast cooling, low noise, unique pre-cooling design, environmental protection and high efficiency.
7.Multi protection for Over-speed, over-temperature, door lock self-locking, unbalance etc ; the rotor can be sterilized by high temperature and high pressure, instant and continuous centrifugation are available.
8. UP-Titanium and nano-silver mixed activated carbon filter, healthy and eco-friendly
Specifications
| Floor standing blood bank low speed refrigerated centrifuge, capping off blood tube centrifuge | ||
| Model | TMF96R (with refrigerator) | TMF96(without refrigerator) |
| Type | Floor standing | Benchtop |
| Max.Speed (r/min) | 4000 | 4000 |
| Max. RCF (x g) | 3166 | 3166 |
| Max Capacity (ml) | 72/96 Well(Φ13×75～100) | 72/96 Well(Φ13×75～100) |
| Control | Microprocessor | Microprocessor |
| Drive |
AC brushless frequency conversion motor |
AC brushless frequency conversion motor |
| Temp. Set Range (°C) | -20 ℃~+40℃ | / |
| Temp. Control Accuracy (°C) | ±1 | / |
| Timer Range(min) | 0-99min59s | 0-99min59s |
| Noise (dB) | ≤ 58 | ≤ 58 |
| Power Supply V (Hz) | 220/110 (50/60), 15A single phase | 220/110 (50/60), 10A single phase |
| Dim. (W x D x H) mm | 620 x 740 x 810mm | 550x660x790mm |
| Weight (kg) | 150 | 120kg |
