MOQ: | 1 set |
Standard Packaging: | carton |
Supply Capacity: | 500 sets per month |

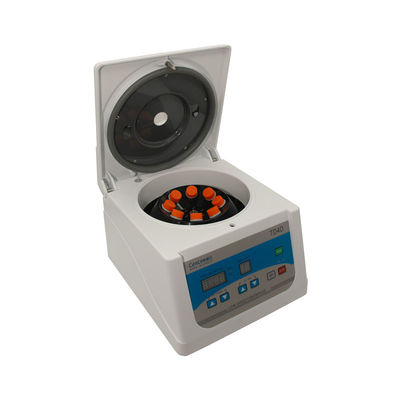

TD4D Platelet rich plasma Prp centrifuge Economical Small Veterinery Centrifuge, Blood /Plasma Medical centrifuge
Laboratory Use Blood Separator Hematocrit PRP Centrifuge with fixed rotor

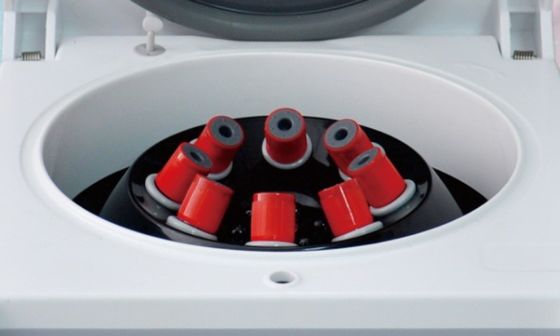

1. One fixed angle rotor which holds, 15ml centrifuge tubes, vacuum blood collection tubes of 16*100mm, 16* 75mm, 13*100mm and 13*75mm.
2. Metal chassis with 4 ruckers for its stability.
3. ABS housing and chamber for compact design.
4. Viewing port in the lid.
5. One-hand lid lock and lid dropping protection.
6. Microprocessor controlled for stable system function.
7. DC brushless motor drive.

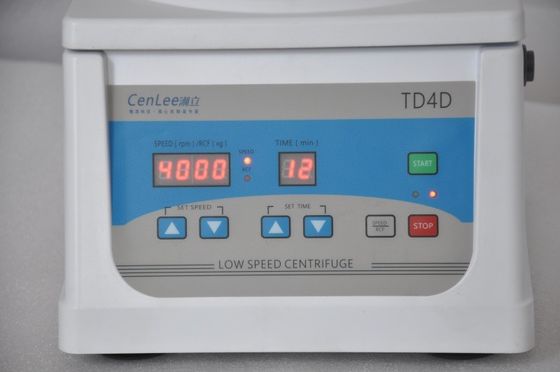

8. LED displat for speed or RCF, time and errors.
9. Easy operation with keypad.
TECHNICAL PARAMETER
Model | TD4D |
Max Speed | 4000r/min |
Max RCF | 2200×g |
Max Capacity | 8×15ml |
Speed Accuracy | ±20r/min |
Time Range | 0-99min |
Power Supply | AC 220-110V 50/60Hz 3A |
Noise | ≤60dB |
Dimension | 255×310×200(mm) |
Packaged Dimension | 390×350×300(mm) |
Weight | 5.5kgs |
Gross Weight | 7kgs |

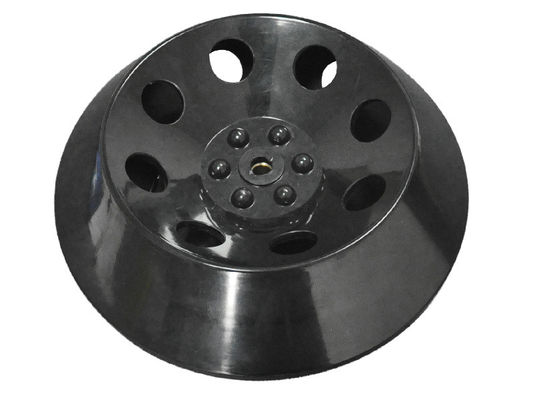

ROTORS
Type | Material | Capacity | Max Speed (r/min) | Max RCF(×g) |
Fixed Angle Rotor | Plastic | 8×15ml | 4000 | 2200 |
Fixed Angle Rotor | Plastic | 12×5ml | 4000 | 2200 |
![]() |
