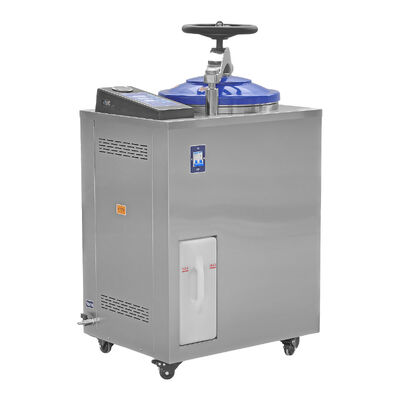

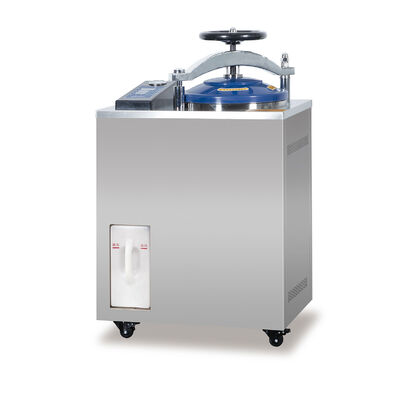

High Performance Laboratory Autoclave with Stainless Steel Inner Cylinder, Automatic Protection Functions, and Microcomputer Control

Brand Name:	Cenlee
Model Number:	DGL-X
MOQ:	1 set
Price:	Contact Grace Young get VIP price (+8618569474156)
Payment Terms:	VISA /T/T /Online Transfer/Apple pay/Credit card/Wechat/Alipay
Supply Ability:	in stock,fast shipping

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001/13485，CE

Name:

High Performance Autoclave For Research Institutions & Labs

Input Voltage Range:

110-220V

Volume:

35L,50L,75L,100L,150L

Rated Working Pressure:

0.22MPa

Rated Working Temperature:

134℃

Keyword:

Reliable Autoclave For Infection Control In Healthcare Settings

Sterilization Temperature Range:

116~134℃

Sterilization Time Range:

4~ 120 Min

Packaging Details:

carton or wooden box

Supply Ability:

in stock,fast shipping

Highlight:

Stainless Steel Inner Cylinder Laboratory Autoclave

Automatic Protection Functions Steam Sterilizer

Microcomputer Automatic Control Autoclave Sterilizer

Product Description

Laboratory Autoclave for Solid Waste & Liquid Sterilization

DGL Series X-Type Multifunctional Automatic Internal Cycle with Drying

Key Features

Self-inflating seal system

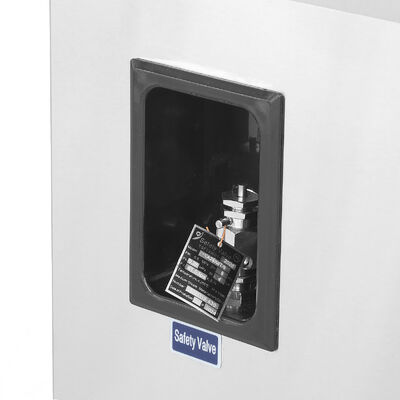

Comprehensive automatic protection: over-temperature, over-pressure, low water level, and anti-dry heating protection
Stainless steel inner cylinder or mesh basket construction
Buzzer notification and automatic shutdown upon sterilization completion
Automatic cold air discharge and steam internal circulation system

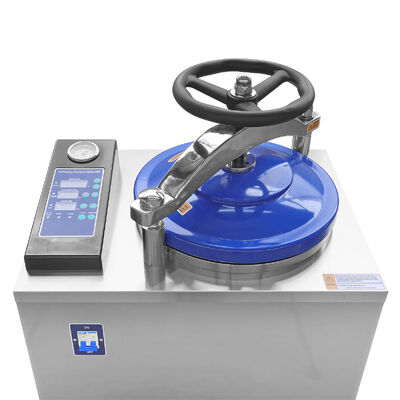

Handwheel translation structure for easy operation
High-quality stainless steel materials throughout
Integrated drying function for complete processing
Microcomputer automatic control with adjustable sterilization parameters
Safety interlock device for operator protection
Digital display with touch button interface
Standard test interface included
Steam internal circulation prevents external emissions for clean, dry environment
Optional external printer available
Optional automatic water intake function

Technical Specifications

Technical Parameters / Model	DGL-35X	DGL-50X	DGL-75X	DGL-100X
Volume	35L	50L	75L	100L
Power	2.5KW	3.5KW	4.5KW	4.5KW
Voltage	AC 110V 60HZ or AC 220V 50HZ
Design Pressure	-0.1-0.25MPa
Design Temperature	139℃
Rated Working Pressure	0.22MPa
Rated Working Temperature	134℃
Sterilization Temperature Range	116~134℃
Sterilization Time Range	4~120 min
Drying Time Range	0~240 min
Chamber Size (mm)	Φ300x450	Φ350x515	Φ400x585	Φ450x615
Bucket Dimension (mm)	Φ275x395	Φ325x235x2	Φ375x265x2	Φ425x275x2
Optional Basket Dimension (mm)	Φ270x380	Φ320x220x2	Φ370x250x2	Φ420x265x2
Outer Dimension (mm)	430x610x1030	500x675x1100	540x716x1165	575x748x1255
Packing Size LxWxH (mm)	670x520x1160	590x740x1230	790x610x1310	820x650x1380
Gross/Net Weight (kg)	90/74kg	125/97kg	145/114kg	161/129kg

Frequently Asked Questions

Can I get a discount?

Yes, please contact our sales manager Grace Young (Phone/Whatsapp/Wechat: +86 185 6947 4156)

Why choose CenLee?

CenLee is a professional laboratory centrifuge manufacturer with over 40 years of experience. To find the right centrifuge for your needs, please provide: test tube size, required RCF/RPM, temperature control requirements (cooling or heating), and rotor type preference (angle rotor or swing out rotor).

Are you a factory or trader?

We are a direct laboratory centrifuge manufacturer with 40+ years of manufacturing history.

Do you have any certificates?

Yes, we hold ISO9001, ISO13485, and CE certifications.

Do you offer warranty?

Yes, we provide one year warranty with lifetime maintenance support.

Do you accept small orders?

Yes, our minimum order quantity is one laboratory centrifuge unit.

What are your payment terms?

Multiple payment options available: credit card, T/T, L/C, Western Union, Paypal, Alipay. Payment terms vary by order quantity (30% down payment or 100% full payment).

Do you provide after-sales service?

Yes, we offer comprehensive after-sales support including operation videos.

Can you accommodate custom designs and logos?

Yes, OEM and ODM services are available for custom requirements.
