DGL-B series (Automatic Digital Display)
Product features

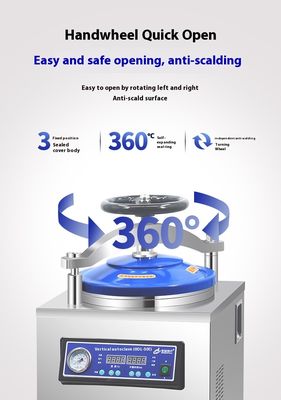

● Handwheel translation structure● High-quality stainless steel material
● Microcomputer automatic control with adjustable sterilization parameters

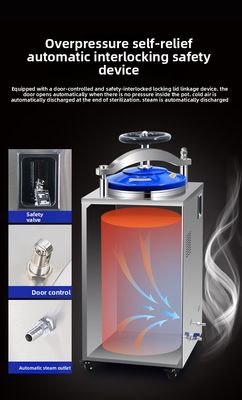

● Safety interlock device
● Digital display and mechanical buttons
● Equipped with a standard test interface
● Self-expanding seal
● Automatic protection functions:over-temperature protection,over-pressure self-relief protection,low water level protection,anti-dry heating protection ● Stainless steel inner cylinder (or mesh basket)
● Buzzer reminder upon completion of sterilization, with automatic shutdown

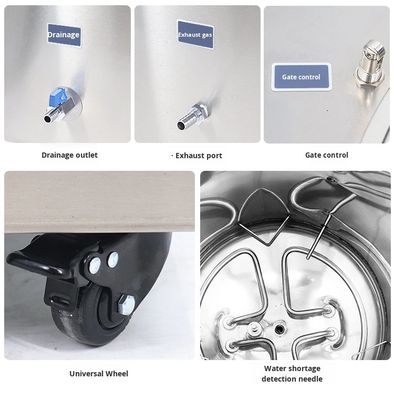

● Automatic discharge of cold air and automatic discharge of steam after sterilization
● Automatic water intake function is available as an option
Technical parameter
| Technical Parameters/Model | DGL-35B | DGL-50B | DGL-75B | DGL-100B |
| Volume | 35L | 50L | 75L | 100L |
| Power | 2.5KW | 3.5KW | 4.5KW | 4.5KW |
| Volta ge | AC 110V 60HZ or AC 220V 50HZ | |||
| Design pressure | 0.25MPa | |||
| Design temperature | 139℃ | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134℃ | |||
| Sterilization temperature range | 116~134℃ | |||
| Sterilization time range | 4~ 120 min | |||
| Drying time range | ||||
| Chamber Size(mm) | Φ300x450 | ф350x515 | Φ400x585 | Φ450x615 |
| Bucket dimension(mm) | Φ275x395 | Φ325x235x2 | Φ375x265x2 | Φ425x275x2 |
| (Optional)basket dimension(mm) | Φ270x380 | Φ320x220x2 | Φ370x250x2 | Φ420x265x2 |
| Outer dimension(mm) | 476x473x990 | 544x536x1100 | 586x576x1210 | 620x610x1275 |
| Packing size(LxWxH)(mm) | 520x560x1120 | 580x630x1230 | 670x620x1350 | 690x650x1410 |
| Gross/net weight(kg) | 74/62kg | 103/80kg | 115/90kg | 134/106kg |
