Precision Refrigerated Centrifuge with 10 Sets of Acceleration and Deceleration 5350RPM Max Speed and 5030xg Max RCF

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: CTL535R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
CTL535R
Minimum Order Quantity:
1
Specifications
Max Speed:
5350RPM
Max RCF:
5030xg
Material:
Steel
Size:
700x660x410
Weight:
95kg
Max capacity:
3000ml
Speed Accuracy:
10r/min
Temperature range:
-20~+40C
Power:
1100w
Noise:
55dBA
Rotor capacity:
4x750ml
Temperature accuracy:
±1℃
Timing range:
0-999min
Power supply:
AC 220V 50Hz 18A
Chamber diameter:
Φ420
Highlight:

10 Sets of Acceleration and Deceleration Refrigerated Centrifuge

,

5350RPM Max Speed Laboratory Centrifuge

,

5030xg Max RCF Blood Bank Centrifuge

Product Description
Precision Cold Centrifuge Machine CTL535R - Efficient Separation for Oils & Extracts
Key Features

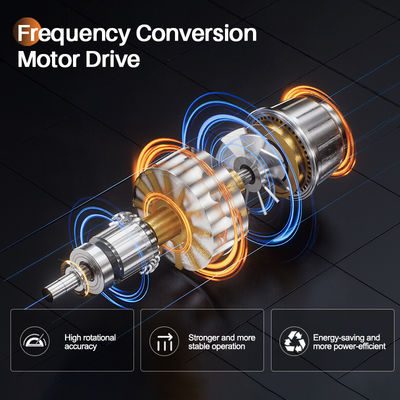

  • Microcomputer control with AC variable frequency motor drive for low noise, energy efficiency, and environmental protection
  • Instantaneous and continuous centrifugation with multiple memory centrifugal condition storage options
  • Large-screen LCD display with user-friendly interface and dual-purpose touch buttons
  • 10 sets of acceleration/deceleration settings with unique damping shock absorption system

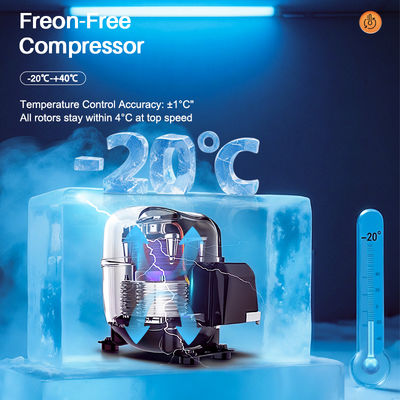

  • Powerful refrigeration system using imported eco-friendly refrigerants with high temperature control accuracy
  • Comprehensive safety protections including over speed, over temperature, and door cover self-locking
  • Real-time parameter adjustment during operation without stopping the machine
  • Consistent temperature control maintaining all rotors at 4℃ even at highest speeds
Ideal Applications
  • Food Industry: Separation of edible oils (olive, coconut, sunflower)
  • Biofuel Research: Purification of biodiesel and fatty acids
  • Pharmaceuticals: Isolation of plant-based bioactive compounds
  • Laboratories: Cell culture, lipid research, and protein extraction
Technical Specifications
Model CTL535R Temperature accuracy ±1℃
Maximum speed 5350r/min Timing range 0-999min
Maximum RCF 5030×g Power supply AC 220V 50Hz 18A
Maximum capacity 3000ml Machine noise ≤55dB(A)
Speed Accuracy ±20r/min Dimensions 700×660×410mm
Power 1100W Chamber diameter Φ420
Temperature range -20℃~+40℃ Net Weight 95kg
CTL535R Rotor Specifications
Rotor type No. Capacity Max Speed (r/min) Max RCF (×g)
Main machine CTL535R 5350 5030
Angle rotor NO.1 6×50ml 5350 5030
Swing rotor NO.2 4×500ml 4000 3040
Swing rotor NO.3 4×750ml 4000 3500
Swing rotor NO.5 4×250ml 4200 3500
Micro plate rotor NO.7 2×2×96 Well 4000 2200

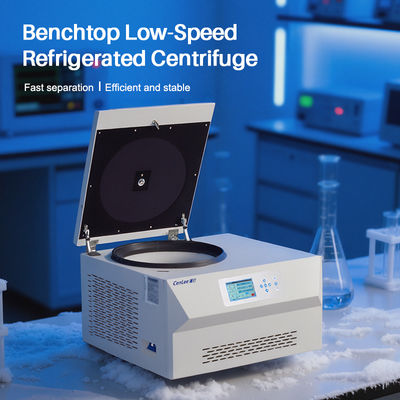

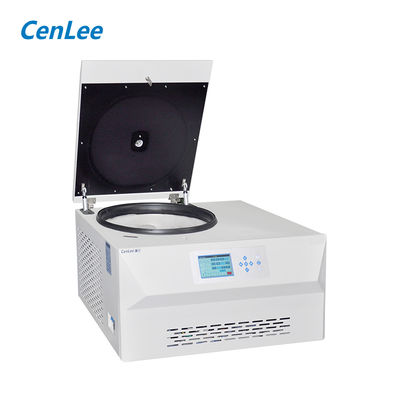

Precision Cold Centrifuge Machine CTL535R front view

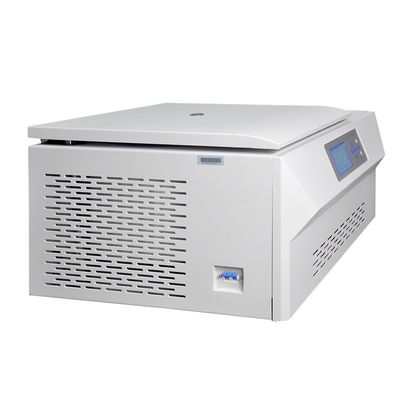

Precision Cold Centrifuge Machine CTL535R side view
