CenLee20R 20500r/min Max Speed Refrigerated Laboratory Centrifuge with 29200×g Max RCF and 9 Speed-up and 10 Speed-down Gears

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: Cenlee20R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
Cenlee20R
Minimum Order Quantity:
1
Specifications
Max speed:
20500r/min
Max RCF:
29200×g
Max capacity:
600ml
Sample range:
0.5ml-100ml
Speed accuracy:
±20r/min
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Power supply:
AC 220V 50Hz 10A
Machine noise:
≤55dB(A)
Power:
1200W
Chamber diameter:
Φ280
Acc/Dec time:
25~30s
Dimensions:
550×530×360mm
Weight:
68kg
Timing range:
0-999min
Highlight:

20500r/min Max Speed Refrigerated Centrifuge

,

29200×g Max RCF Laboratory Centrifuge

,

9 Speed-up and 10 Speed-down Gears High Speed Centrifuge

Product Description
CenLee20R 20500rpm High Speed Refrigerated Laboratory Centrifuge Machine
Product Overview

The CENLEE20R is a benchtop high-speed refrigerated laboratory centrifuge designed for precision separation tasks. Featuring microcomputer control and advanced safety features, this equipment delivers reliable performance for demanding laboratory applications.

Key Features
  1. Microcomputer control with touch panel interface and high torque frequency conversion AC motor drive
  2. Large-screen LCD display with automatic parameter memory function
  3. RCF/speed rpm conversion for convenient setting adjustments
  4. 9 speed-up and 10 speed-reduction gears with three groups of damping shock absorption
  5. Unique rubber isolation ring design prevents condensation water from entering the motor
  6. Special spring taper sleeve for easy rotor installation and removal
  7. Environmentally friendly fluorine-free compressor unit with imported compressor
  8. Comprehensive safety protections including over speed, over temperature, and door cover self-locking
Technical Specifications
Model CenLee20R Timing range 0-999min
Maximum speed 20500r/min Power supply AC 220V 50Hz 10A
Maximum RCF 29200×g Machine noise ≤55dB(A)
Maximum capacity 600ml Power 1200W
Sample range 0.5ml-100ml Chamber diameter Φ280
Speed Accuracy ±20r/min Acc/Dec fastest time 25~30s
Temperature range -20℃~+40℃ Dimensions 550×530×360mm
Temperature accuracy ±1℃ Weight 68kg
Rotor Specifications
Rotor type No. Capacity Max Speed(r/min) Max RCF(×g)
Main machine CenLee20R 20500 29200
Angle rotor NO.1 12×1.5/2.2ml 20500 29200
Angle rotor NO.2 12×5ml 16500 19480
Angle rotor NO.3 12×10ml 15000 19369

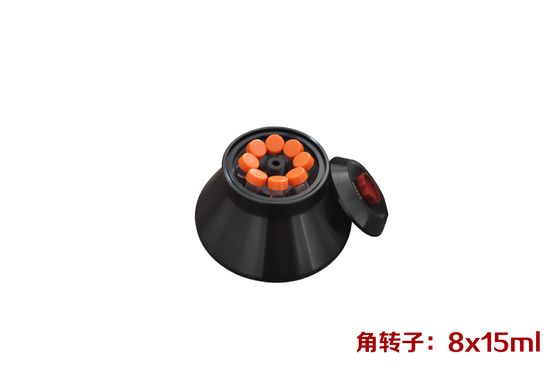

Angle rotor NO.4 8×15ml (Cone form bottom) 12000 14972
Angle rotor NO.5 8×20ml 15000 22898

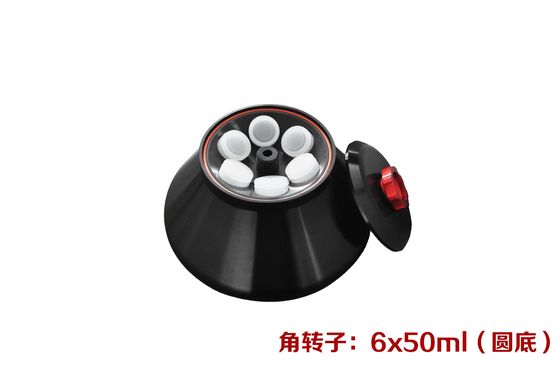

Angle rotor NO.6 6×50ml (Round bottom) 13000 18516
Angle rotor 6×50ml (Cone form bottom)
Angle rotor NO.7 24×1.5/2.2ml 16800 25875
Angle rotor NO.8 4×100ml 12000 15616
Angle rotor NO.9 6×100ml 12000 16421
Angle rotor NO.10 48×0.5ml 13000 16410
Angle rotor NO.11 48×1.5/2ml 13000 17933
Enzyme Plate rotor NO.12 2×2×48 Well 3000 1400

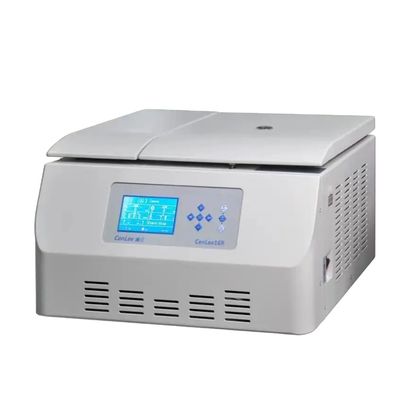

CenLee20R Laboratory Centrifuge front view
CenLee20R Laboratory Centrifuge side view
