CFL6R Floor Type Large Capacity Refrigerated Centrifuge with Touch Panel and Frequency Converted Motor

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: CFL6R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
CFL6R
Minimum Order Quantity:
1
Specifications
Max speed:
6000r/min
Max capacity:
6000ml
Max RCF:
6680×g
Speed accuracy:
±20r/min
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Power:
5.5KW
Power supply:
AC 220V 50Hz20A
Machine noise:
≤65dB(A)
Dimensions:
830×720×1250mm
Net weight:
268kg
Motor drive:
Frequency Converted Motor
Acc/Dec time:
Can Be Customized
Timing range:
0-999min
Rotor capacity:
6×300ml, 6×500ml, 6×1000ml
Highlight:

Floor Type Refrigerated Centrifuge

,

Touch Panel Laboratory Centrifuge

,

Frequency Converted Motor Blood Bank Centrifuge

Product Description
CFL6R Floor Type Large Capacity Refrigerator Laboratory Centrifuge Machine
This centrifuge is widely used in clinical medicine, biochemistry, immunology, genetic engineering, and other fields. It serves as a conventional instrument for rapid centrifugation of small volume samples in laboratories such as scientific research institutions and public hospitals.
Product Advantages
  • Flexible anti-friction system reduces wind resistance and accelerates time to maximum speed
  • Eco-friendly R404a refrigerant, fluorine-free high efficiency refrigeration
  • 6L large capacity separation capability
  • Customizable stainless steel panel control box meeting pharmaceutical industry GMP requirements
  • Ideal for radioimmunoassay, biochemistry, pharmaceutical applications, and blood product separation/purification
Key Features
  • Touch panel with LED digital or LCD display allowing parameter adjustments during operation
  • High-power brushless frequency conversion motor with European imported ultra-high speed bearings
  • Imported compressor unit (R404a refrigerant) with precise temperature control (±1℃), low vibration, and noise
  • Programmable operation with 9 preset programs, 0-9 gear up/down rate, and 40 custom working modes
  • Pre-cooling chamber design for fast cooling and efficient operation
  • Dual safety door lock with comprehensive protection systems (over-temperature, over-speed, imbalance detection)
  • Pulse function for short centrifugation cycles
Technical Specifications
Model CFL6R Cryogen R404a
Maximum speed 6000r/min Acc/Dec time Customizable
Maximum RCF 6680×g Timing range 0-999min
Maximum capacity 6000ml Power 5.5KW
Speed Accuracy ±20r/min Power supply AC 220V 50Hz 20A
Temperature range -20℃~+40℃ Machine noise ≤65dB(A)
Temperature accuracy ±1℃ Dimensions 830×720×1250mm
Motor drive Frequency converted motor Net Weight 268kg

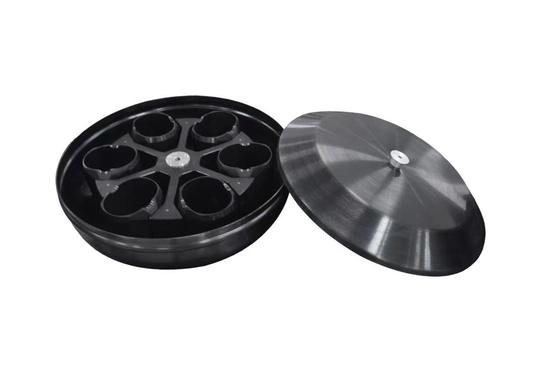

CFL6R Rotor Specifications
Rotor type No. Capacity Max Speed (r/min) Max RCF (×g)
Main machine CFL6R 6000 6680
Angle rotor NO.1 6×300ml 6000 5650
Angle rotor NO.2 6×500ml 6000 6680
Swing out rotor NO.3 6×1000ml 4200 5100

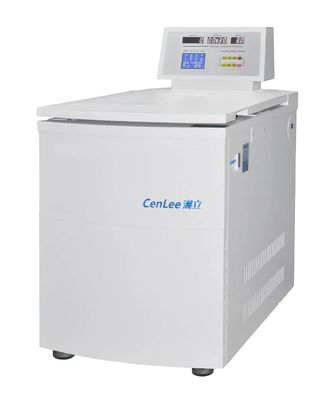

CFL6R Floor Type Large Capacity Refrigerator Laboratory Centrifuge Machine

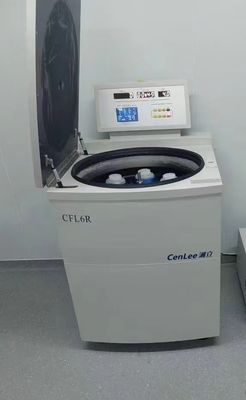

CFL6R Floor Type Large Capacity Refrigerator Laboratory Centrifuge Machine side view
