CTL535R Microcomputer Control Energy Saving Environmental Protection Refrigerated Centrifuge for Blood Bank and Laboratory Use

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: CTL535R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
CTL535R
Minimum Order Quantity:
1
Specifications
Max speed:
8000 Rpm
Max capacity:
6x2400ml
Max RCF:
14336
Temperature accuracy:
±1℃
Timing range:
0-999min
Power supply:
AC 220V 50Hz 18A
Machine noise:
≤55dB(A)
Dimensions:
700×660×410mm
Chamber diameter:
Φ420
Net weight:
95kg
Speed accuracy:
±20r/min
Power:
1100W
Temperature range:
-20℃~+40℃
Rotor max speed:
5350 Rpm
Rotor max RCF:
5030×g
Highlight:

Microcomputer Control Refrigerated Centrifuge

,

Energy Saving Blood Bank Centrifuge

,

Environmental Protection Laboratory Centrifuge

Product Description
CTL535R 4×750ml Large Capacity Tabletop Low Speed Cooling Centrifuge (Refrigerated)
Product Description
CTL535R Desktop Low-Speed Refrigerated Centrifuge
Features
  • Microcomputer control with AC variable frequency motor drive for low noise, energy saving, and environmental protection
  • Instantaneous centrifugation and continuous centrifugation with multiple memory centrifugal condition storage and program operation functions

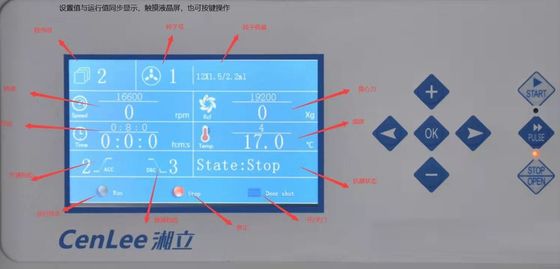

  • Large-screen LCD display with humanized interface and dual-purpose touch buttons showing set/actual values and running rotor capacity
  • 10 sets of acceleration/deceleration settings with unique damping shock absorption system
  • Powerful refrigeration system using imported eco-friendly refrigerants with high temperature control accuracy
  • Multiple safety protections including over speed, over temperature, door cover self-locking, unbalanced detection, stainless steel inner sleeve, and three-level protective sleeve
  • Countdown timer displays in seconds when less than one minute; parameters can be changed during operation without stopping
  • Excellent temperature control maintains all rotors at 4℃ at maximum speed
Technical Parameters
Model CTL535R Temperature Accuracy ±1℃
Maximum Speed 5350r/min Timing Range 0-999min
Maximum RCF 5030×g Power Supply AC 220V 50Hz 18A
Maximum Capacity 3000ml Machine Noise ≤55dB(A)
Speed Accuracy ±20r/min Dimensions 700×660×410mm
Power 1100W Chamber Diameter Φ420
Temperature Range -20℃~+40℃ Net Weight 95kg
CTL535R Rotor Specifications
Rotor Type No. Capacity Max Speed (r/min) Max RCF (×g)
Main machine CTL535R 5350 5030
Angle rotor NO.1 6×50ml 5350 5030
Swing rotor NO.2 4×500ml 4000 3040
Test cup: 4×500ml
Adapter: 4×19×5ml, 4×9×15ml
Adapter NO.2: 4×7×20ml, 4×3×50ml, 4×300ml, 4×100ml
Swing cup: 4×24×5ml(vacuum tube), 4×37×7ml(vacuum tube)
Micro plate rotor: 4×2×96 Well
Square buckets: 4x Buckets
Adapter: 4×250ml, 4×4×50ml (cone form bottom), 4×4×50ml (Round bottom), 4×25×1.5ml, 4×10×15ml (cone form bottom), 4×10×15ml (Round bottom), 4×20×10ml, 4×28×5ml
Swing rotor NO.3 4×750ml 4000 3500
Swing test cup: 4×750ml
Adaptor: 4×500ml (cone form bottom), 4×300ml, 4×500ml, 4×2×100ml, 4×10×20ml
Adaptor NO.4: 4×4×50ml (cone form bottom), 4×4×50ml, 4×14×15ml (cone form bottom), 4×19×15ml, 4×24×7ml, 4×37×5ml
Swing rotor NO.5 4×250ml 4200 3500
Swing test cup: 4×250ml
Adaptor: 4×7×10ml, 4×10×5ml, 4×4×20ml, 4×100ml, 4×6×15ml, 4×4×15ml (cone form bottom)
Adaptor NO.6: 4×50ml (cone form bottom), 4×50ml, 4×8×1.5ml
Micro plate rotor NO.7 2×2×96 Well 4000 2200
CTL535R 4×750ml Large Capacity Tabletop Low Speed Cooling Centrifuge Technical diagram of CTL535R Centrifuge
