CenLee20R 20500rpm Refrigerated Laboratory Centrifuge with Microcomputer Control and 6x100ml Capacity

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: Cenlee20R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
Cenlee20R
Minimum Order Quantity:
1
Specifications
Max speed:
20500rpm
Max capacity:
6x100ml
Maximum RCF:
29200×g
Power supply:
AC 220V 50Hz 10A
Machine noise:
≤55dB(A)
Power:
1200W
Chamber diameter:
Φ280
Speed accuracy:
±20r/min
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Dimensions:
550×530×360mm
Weight:
68kg
Timing range:
0-999min
Acc/Dec time:
25~30s
Sample range:
0.5ml-100ml
Highlight:

Microcomputer Control Refrigerated Centrifuge

,

6x100ml Capacity Laboratory Centrifuge

,

20500rpm High Speed Centrifuge

Product Description
CenLee20R 20500rpm Tabletop High Speed Laboratory Centrifuge Refrigerated
The CENLEE20R Benchtop High Speed Refrigerated Centrifuge offers precision performance for laboratory applications with advanced features for efficient sample processing.
Key Features
  • Microcomputer control with touch panel interface and high torque frequency conversion AC motor drive for quiet, precise operation
  • Large-screen LCD display with automatic parameter memory function
  • RCF/speed rpm conversion for convenient setting adjustments
  • 9 speed-up and 10 speed-reduction gears with three groups of damping shock absorption
  • Unique rubber isolation ring design prevents condensation water from entering the motor
  • Special spring taper sleeve for easy, direction-free rotor installation
  • Fluorine-free compressor unit with imported compressor for environmentally friendly operation
  • Comprehensive safety protections including over speed, over temperature, and door cover self-locking
Technical Specifications
Model CenLee20R Timing range 0-999min
Maximum speed 20500r/min Power supply AC 220V 50Hz 10A
Maximum RCF 29200×g Machine noise ≤55dB(A)
Maximum capacity 600ml Power 1200W
Sample range 0.5ml-100ml Chamber diameter Φ280
Speed Accuracy ±20r/min Acc/Dec fastest time 25~30s
Temperature range -20℃~+40℃ Dimensions 550×530×360mm
Temperature accuracy ±1℃ Weight 68kg
Rotor Specifications
Rotor type No. Capacity Max Speed(r/min) Max RCF(×g)
Main machine CenLee20R 20500 29200
Angle rotor NO.1 12×1.5/2.2ml 20500 29200
Angle rotor NO.2 12×5ml 16500 19480
Angle rotor NO.3 12×10ml 15000 19369
Angle rotor NO.4 8×15ml (Cone form bottom) 12000 14972
Angle rotor NO.5 8×20ml 15000 22898
Angle rotor NO.6 6×50ml (Round bottom) 13000 18516
Angle rotor 6×50ml (Cone form bottom)
Angle rotor NO.7 24×1.5/2.2ml 16800 25875
Angle rotor NO.8 4×100ml 12000 15616
Angle rotor NO.9 6×100ml 12000 16421
Angle rotor NO.10 48×0.5ml 13000 16410
Angle rotor NO.11 48×1.5/2ml 13000 17933
Enzyme Plate rotor NO.12 2×2×48 Well 3000 1400

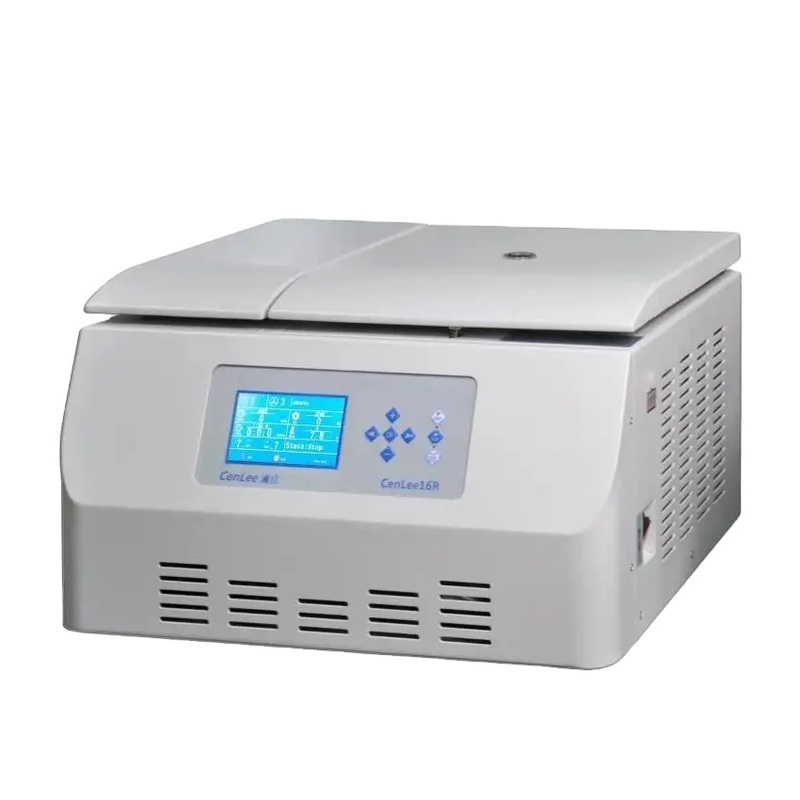

CenLee20R Centrifuge main unit view CenLee20R Centrifuge operational view
