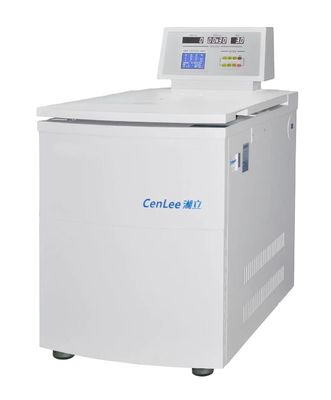

Large Capacity (6x1000ml) Floor Standing Refrigerated Centrifuge with Touch Panel Control and Pre-cooling Design

Name: Large Capacity (6x1000ml) Floor Standing Refrigerated Centrifuge with Touch Panel Control and Pre-cooling Design
Brand: Changsha CenLee Technology Co., Ltd,
SKU: CFL6R
Price: 50,000,001.00 USD
Availability: InStock

Brand Name:	Cenlee
Model Number:	CFL6R
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Hunan, China

Max Speed:

6000r/min

Max Capacity:

6000ml

Max RCF:

6680×g

Speed Accuracy:

±20r/min

Temperature Range:

-20℃~+40℃

Temperature Accuracy:

±1℃

Power:

5.5KW

Power Supply:

AC 220V 50Hz20A

Machine Noise:

≤65dB(A)

Dimensions:

830×720×1250mm

Net Weight:

268kg

Motor Drive:

Frequency Converted Motor

Refrigerant:

R404a

Timing Range:

0-999min

Rotor Capacity:

6×1000ml

Highlight:

Touch Panel Control Refrigerated Centrifuge

Pre-cooling Design Blood Bank Centrifuge

Low Noise Laboratory Centrifuge

Product Description

CFL6R Large Capacity (6x1000ml) Floor Standing Refrigerated Serum Centrifuge for FBS

This high-capacity refrigerated centrifuge is designed for clinical medicine, biochemistry, immunology, genetic engineering, and other laboratory applications. Ideal for scientific research institutions and public hospitals, it provides rapid centrifugation of small volume samples with exceptional performance.

Key Advantages

Flexible anti-friction system reduces wind resistance and accelerates time to maximum speed
Eco-friendly R404a refrigerant for fluorine-free, high-efficiency refrigeration
6L large capacity separation capability
Customizable stainless steel panel control box meeting pharmaceutical industry GMP requirements
Ideal for radioimmunoassay, biochemistry, pharmaceuticals, and blood product separation/purification

Advanced Features

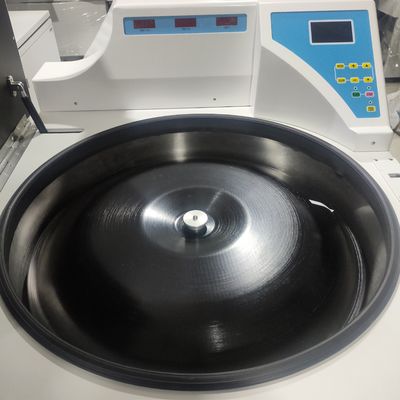

Touch panel with LED digital or LCD display allowing parameter adjustments during operation
High-power brushless frequency conversion motor with European imported ultra-high speed bearings
Advanced frequency conversion speed controller for precise operation
Imported compressor unit (R404a refrigerant) with adjustable temperature, high precision control, and low vibration/noise
Programmable operation with storage for 9 programs and 40 custom working modes
Pre-cooling chamber design for fast cooling and efficient operation
Comprehensive safety system including door lock, over-temperature/speed protection, and self-diagnosis
Pulse function for short centrifugation cycles

Technical Specifications

Parameter	Value	Parameter	Value
Model	CFL6R	Cryogen	R404a
Maximum speed	6000r/min	Acc/Dec time	Customizable
Maximum RCF	6680×g	Timing range	0-999min
Maximum capacity	6000ml	Power	5.5KW
Speed Accuracy	±20r/min	Power supply	AC 220V 50Hz20A
Temperature range	-20℃~+40℃	Machine noise	≤65dB(A)
Temperature accuracy	±1℃	Dimensions	830×720×1250mm
Motor drive	Frequency converted motor	Net Weight	268kg

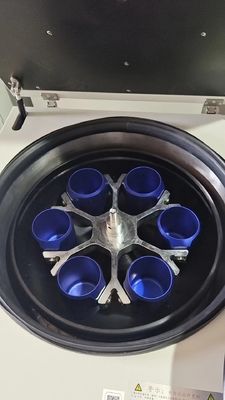

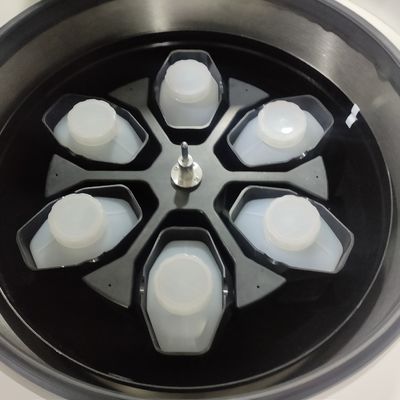

CFL6R Rotor Specifications

Rotor type	No.	Capacity	Max Speed (r/min)	Max RCF (×g)
Main machine	CFL6R		6000	6680
Angle rotor	NO.1	6×300ml	6000	5650
Angle rotor	NO.2	6×500ml	6000	6680
Swing out rotor	NO.3	6×1000ml	4200	5100
