CFL535R Intelligent Microcomputer Control Refrigerated Centrifuge with AC Brushless Motor and Stainless Steel Chamber

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: CFL535R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
CFL535R
Minimum Order Quantity:
1
Specifications
Max speed:
5350r/min
Max capacity:
3000ml
Max RCF:
5030×g
Timing range:
0-999min
Power supply:
AC 220V 50Hz 15A
Machine noise:
≤55dB(A)
Dimensions:
620×740×810mm
Speed accuracy:
±20r/min
Net weight:
150kg
Chamber diameter:
Φ450
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Power:
1700W
Motor type:
AC Brushless Frequency Conversion
Chamber material:
304 Stainless Steel
Highlight:

Intelligent Microcomputer Control Refrigerated Centrifuge

,

AC Brushless Motor Laboratory Centrifuge

,

Stainless Steel Chamber Blood Bank Centrifuge

Product Description
CFL535R Large Capacity 3000ml (4x750ml) Floor Standing Refrigerated Laboratory Centrifuge
This refrigerated centrifuge is designed for clinical medicine, biochemistry, immunology, genetic engineering, and other scientific fields. It serves as an essential laboratory instrument for rapid centrifugation of small volume samples in research institutions and hospitals.
CFL535R Low Speed Large Capacity Refrigerated Centrifuge Features
  1. Intelligent microcomputer control with AC brushless frequency conversion motor drive
  2. Instant centrifugation and continuous centrifugation modes
  3. 9 speed-up gears and 10 speed-reduction gears with three sets of damping shock absorption using high-quality NR rubber
  4. Premium 304 stainless steel centrifugal chamber
  5. Unique rubber isolation ring design prevents condensation water from entering the motor
  6. Fluorine-free compressor unit (imported) with quick cooling capability and environmental refrigerants
  7. Multiple safety protections including over speed, over temperature, door cover self-locking, and three-level protective cover
  8. Compatible with various capacity adapters (5ml to 50ml) for versatile applications
  9. Widely used in radioimmunity, biochemistry, pharmaceutical, and related industries
Technical Specifications
Model CFL535R Timing Range 0-999min
Maximum Speed 5350r/min Power Supply AC 220V 50Hz 15A
Maximum RCF 5030×g Machine Noise ≤55dB(A)
Maximum Capacity 3000ml Dimensions 620×740×810mm
Speed Accuracy ±20r/min Net Weight 150kg
Power 1700W Chamber Diameter Φ450
Temperature Range -20℃~+40℃ Temperature Accuracy ±1℃
CFL535R Rotor Specifications
Rotor Type No. Capacity Max Speed (r/min) Max RCF (×g)
Main Machine CFL535R 5350 5030
Angle Rotor NO.1 12×15ml 5350 5030
Swing Rotor Body NO.2 4×500ml 4000 3040
Enzyme Plate Rotor 4×2×96 well 4000 3040
Square Buckets 4xbuckets 4000 3040
Round Cup 4×500ml 4000 3040
Hanging Cup 4×24×5ml (Vacuum tube) 4000 3040
Hanging Cup 4×37×7ml (Test tubes) 4000 3040
Enzyme Plate Rotor Body NO.3 2×2×96 well 4000 2200
Swing Out Rotor Body NO.4 4×750ml 4000 3500
Swing Out Rotor Body NO.5 6×250ml 4000 3580
Swing Out Rotor Body NO.6 4×250ml 4200 3500

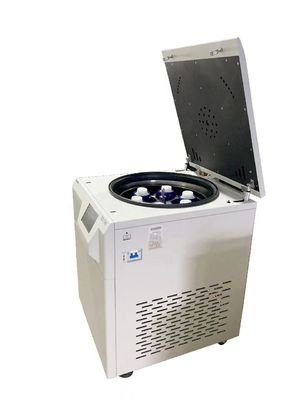

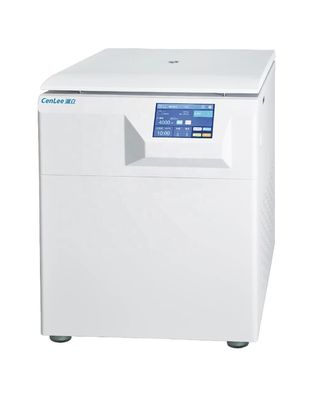

CFL535R Large Capacity Refrigerated Centrifuge
CFL535R Centrifuge Technical View
