TGL-16M 16000rpm High Speed Centrifuge with 21532xg Fixed Angle Rotor and 60ml Capacity Refrigerated Laboratory Centrifuge

Place of Origin: Hunan, China
Brand Name: CENLEE
Model Number: TGL-16
Product Details
Place of Origin:
Hunan, China
Brand Name:
CENLEE
Model Number:
TGL-16
Minimum Order Quantity:
1
Price:
$1,000
Specifications
Max speed:
16000rpm
Max RCF:
21532*g
Max capacity:
60ml
Speed accuracy:
±20r/min
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Power supply:
AC 220V 50Hz 10A
Power:
700W
Machine noise:
≤55dB(A)
Chamber diameter:
Φ250
Fastest Acc/Dec time:
13~30s
Dimensions:
295*400*360mm
Net weight:
36kg
Timing range:
0-99min
Rotor capacity:
24*1.5/2.2ml, 12*1.5/2.2ml, 12*5ml, 4*8*0.2ml PCR Tubes
Highlight:

16000rpm High Speed Centrifuge

,

21532xg Refrigerated Centrifuge

,

60ml Capacity Laboratory Centrifuge

Product Description
TGL-16M 16000rpm Fixed Angle Rotor Table Type High Speed Centrifuge Refrigerated
The TGL-16M is a high-speed refrigerated centrifuge with a maximum speed of 16000rpm, designed for laboratory applications requiring precise temperature control and high centrifugal force.
Technical Specifications
Model TGL-16 Timing Range 0-99min
Maximum Speed 16000r/min Power Supply AC 220V 50Hz 10A
Maximum RCF 21532×g Machine Noise ≤55dB(A)
Maximum Capacity 60ml Power 700W
Speed Accuracy ±20r/min Chamber Diameter Φ250
Temperature Range -20℃~+40℃ Fastest Acc/Dec Time 13~30s
Temperature Accuracy ±1℃ Dimensions 295*400*360mm
Net Weight 36kg

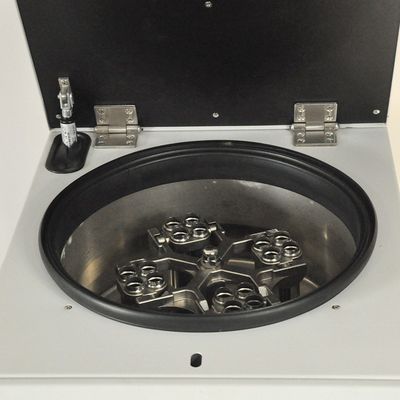

Rotor Specifications
Rotor Type No. Capacity Max Speed (r/min) Max RCF (×g)
Main Machine TGL-16 16000 21532
Angle Rotor NO.1 24*1.5/2.2ml 15000 21532
Angle Rotor NO.2 12*1.5/2.2ml 16000 17800
Angle Rotor NO.3 12*5ml 12000 10142
Angle Rotor NO.4 4*8*0.2ml PCR tubes 15000 13800

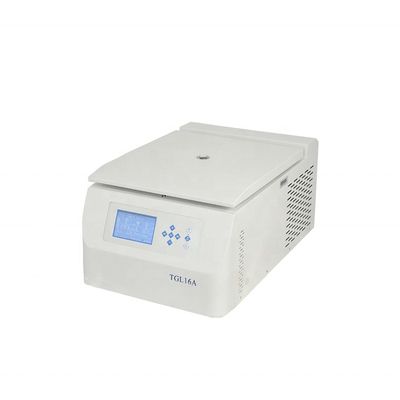

TGL-16M High Speed Centrifuge Refrigerated - Front View

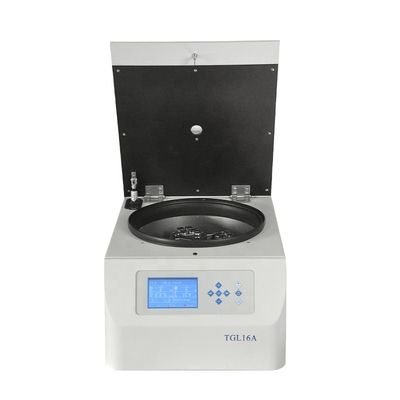

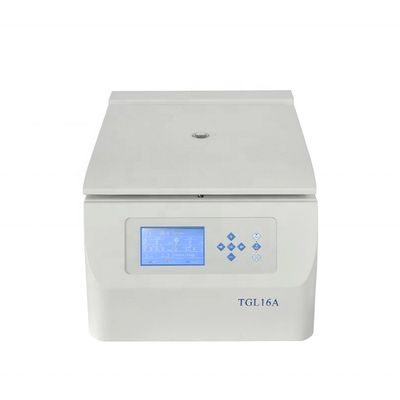

TGL-16M High Speed Centrifuge Refrigerated
TGL-16M High Speed Centrifuge Refrigerated - Technical Diagram
TGL-16M Technical Specifications Diagram
