CFH10R 10000rpm Brushless Motor Laboratory Centrifuge with 6x1000ml Capacity and Refrigerated Function

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: CFH10R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
CFH10R
Minimum Order Quantity:
1
Specifications
Max speed:
10000r/min
Max RCF:
18300xg
Power supply:
AC220V50Hz30A
Max capacity:
6000ml
Motor type:
Brushless Motor
Speed accuracy:
±20r/min
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Timer range:
0-999min
Power:
5.5KW
Noise level:
≤65dB(A)
Dimensions:
820×710×1150mm
Gross weight:
268kg
Rotor types:
Swing Out Rotor, Angle Rotor
Angle rotor capacity:
6×100ml
Highlight:

10000rpm Laboratory Centrifuge

,

6x1000ml Capacity Refrigerated Centrifuge

,

Brushless Motor Blood Bank Centrifuge

Product Description
CFH10R 10000rpm Laboratory Centrifuge Machine
The CFH10R 10000rpm laboratory centrifuge machine utilizes the principle of centrifugal sedimentation to separate, concentrate or purify cells (particles) with different densities in solution under centrifugal force.
CFH10R 10000rpm Laboratory Centrifuge Machine
Technical Specifications
Model CFH10R Temperature accuracy ±1℃
Maximum speed 10000r/min Timer range 0-999min
Maximum RCF 18300xg Voltage AC220V50Hz30A
Maximum capacity 6000ml Power 5.5KW
Speed Accuracy ±20r/min Noise ≤65dB(A)
Temperature range -20℃~+40℃ Dimensions 820×710×1150mm
Gross Weight 268kg
Rotor Specifications
Rotor type No. Capacity Max Speed(r/min) Max RCF(×g)
Main machine CFH10R 10000 18300

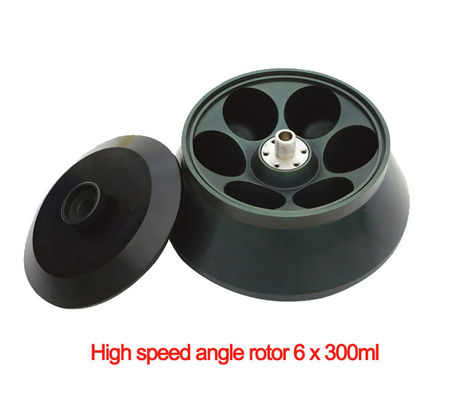

Angle rotor NO.1 6×300ml 10000 18300
Angle rotor NO.2 6×500ml 8000 11680
Angle rotor NO.3 6×1000ml 8000 12166
Swing out rotor NO.4 6×1000ml 4200 5100
Swing out rotor NO.5 4×1000ml 4200 4430
Key Features
  • Touch panel with LED digital or LCD display allowing parameter adjustments during operation
  • High-power brushless frequency conversion motor with European ultra-high speed bearings
  • Imported compressor unit (R404a refrigerant) for precise temperature control with minimal vibration and noise
  • Programmable operation with storage for 9 programs and 40 custom working modes
  • Pre-cooling chamber design for fast cooling and efficient operation
  • Dual safety door lock with comprehensive protection systems (over-temperature, over-speed, imbalance)
  • Pulse function for short centrifugation cycles
Product Images

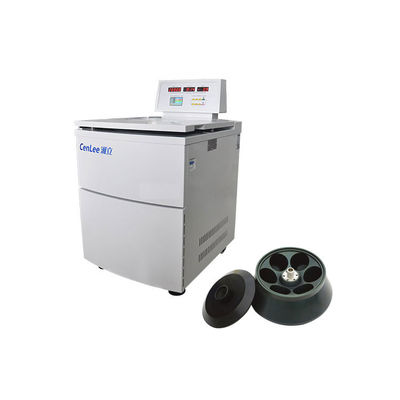

CFH10R 10000rpm Laboratory Centrifuge Machine
CFH10R 10000rpm Laboratory Centrifuge Machine

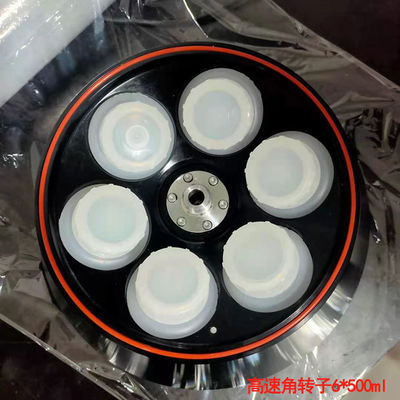

6 X 500 ml angle rotor

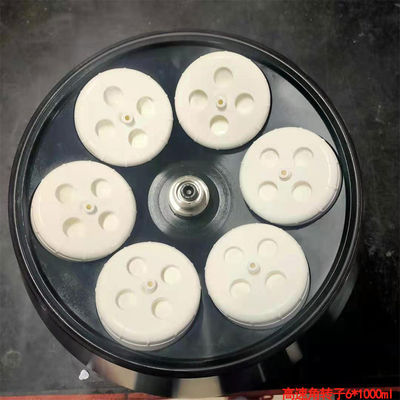

6 x 1000 ml angle rotor

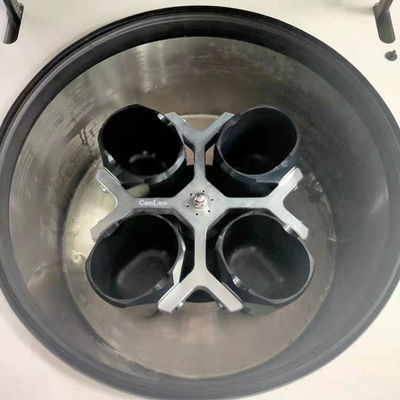

4 x 1000 ml swing out rotor
Package
CFH10R 10000rpm Laboratory Centrifuge Machine package
About Hunan CenLee Scientific Instrument Co., Ltd

Located in Changsha, China's laboratory centrifuge production center, we have specialized in manufacturing laboratory centrifuges including refrigerated centrifuges, blood centrifuges, high speed centrifuges, PRP medical centrifuges, and 10000 rpm centrifuges for over 40 years.

Our core philosophy is "CenLee Technology- Improve your Precision in Wisdom Lab". We focus on intelligent optimization and new technology integration, holding several core patents. Our 10000rpm laboratory centrifuges are widely used in bio-chemistry education, agriculture science, pharmaceutical research, petrochemical industry, and forensic investigation.

Frequently Asked Questions
FAQ about CFH10R 10000rpm Laboratory Centrifuge Machine
Q: Are you manufacturer or trader?
A: Cenlee has been specialized in manufacturing laboratory centrifuges for more than 40 years.
Q: Do you accept small orders?
A: Yes, our MOQ is one set 10000rpm laboratory centrifuge.
Q: What's the delivery time for 10000rpm laboratory centrifuge?
A: 1~7 days after payment received. (According to the order, maybe longer.)
Q: Is there any discount on the price?
A: We offer competitive pricing with quantity discounts available.
Q: Can you accept customer's designs?
A: Yes, we offer ODM/OEM services with technical support.
Q: Do you have after-sales service?
A: Yes, we provide comprehensive after-sales support including operation videos.
