GL-21M 21000rpm High Speed Refrigerated Centrifuge with Microprocessor Control and CFC-free Refrigeration for Blood Bank Applications

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: GL21M
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
GL21M
Minimum Order Quantity:
1
Price:
$6,900-7,500
Specifications
Max Speed:
21000 R/min
Max RCF:
48900 X G
Max Capacity:
3000 Ml
Control Type:
Microprocessor
Drive Type:
AC Frequency Conversion Motor
Accel/Decel Rates:
10/10
Programmability:
40 Programs
Refrigeration System:
CFC-free With R404a
Speed Range:
100-21000 R/min
Speed Accuracy:
±20 R/min
Temp Range:
-20 To +40 °C
Temp Accuracy:
±1 °C
Timer Range:
0-99:59:59
Noise Level:
≤ 65 DB
Power Supply:
220/110 V (50/60 Hz), 35A, 3 Phase
Dimensions:
860 X 730 X 1200 Mm
Weight:
300 Kg
Highlight:

21000rpm Refrigerated Centrifuge

,

Microprocessor Control High Speed Centrifuge

,

CFC-free Refrigeration Floor Standing Centrifuge

Product Description
GL-21M 21000rpm Ultra High Speed Centrifuge Floor Style Continuous Separation Rotor Centrifuge Refrigerator
High Performance Refrigerated Centrifuge
  • High purity separation and extraction of biological samples
  • Ideal for processing blood, cells, proteins, enzymes, and viruses
  • User-friendly LED/LCD display for intuitive operation
  • Non-CFC compressor imported from EU for enhanced safety and reliability
  • Advanced shock absorption system ensures quiet operation
  • Memory function stores up to 40 user-defined programs
  • Integrated pre-cooling system for temperature-sensitive samples
Technical Specifications
Model GL21M
Max. Speed (r/min) 21000
Max. RCF (x g) 48900
Max. Capacity (ml) 3000
Control System Microprocessor
Drive System AC Frequency Conversion Motor with large torque
Acceleration/Deceleration Rates 10/10
Program Storage 40 programs
Refrigeration System Environmental CFC-free with R404a refrigerant
Speed Range (r/min) 100-21000
Speed Control Accuracy (r/min) ±20
Temperature Range (°C) -20 to +40
Temperature Accuracy (°C) ±1
Timer Range 0-99:59:59
Noise Level (dB) ≤ 65
Power Requirements 220/110V (50/60Hz), 35A, 3 phase
Dimensions (W x D x H) mm 860 x 730 x 1200
Weight (kg) 300

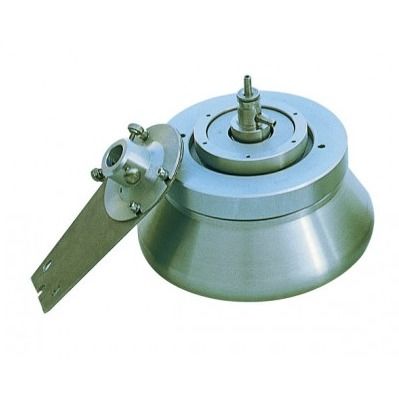

Available Rotor Configurations
Rotor Type Rotor No. Max. Capacity (place x ml) Max. Speed (rpm) Max. RCF (x g) Tube Size (Range, ml) Adapters for smaller tubes
Fixed Angle Rotor 1 16 x 1.5/2.2 21000 48900 0.2-2.2 Available
Fixed Angle Rotor 1 16 x 10 21000 48900 0.2-10 Available
Fixed Angle Rotor 2 6 x 50 20000 43000 0.2-50 Available
Fixed Angle Rotor 3 8 x 50 15000 27720 0.2-50 Available
Fixed Angle Rotor 4 8 x 100 13000 19830 0.2-100 Available
Fixed Angle Rotor 5 4 x 300 11000 19300 0.2-300 Available
Fixed Angle Rotor 6 6 x 300 10000 18300 0.2-300 Available
Fixed Angle Rotor 7 6 x 500 8000 11680 0.2-500 Available
Continous Rotor 8 1 x 1800 14000 21710 0-1800 Unavailable
Continous Rotor 9 1 x 3000 8000 9450 0-3000 Unavailable
Intermittent Rotor 10 1 x 1000 17000 31390 0-1000 Unavailable
Intermittent Rotor 11 1 x 1200 12000 19350 0-1200 Unavailable
Intermittent Rotor 12 1 x 3000 10000 14890 0-3000 Unavailable
Vertical Rotor 13 16 x 5 20000 38340 0.2-5 Available
Vertical Rotor 14 8 x 30 18000 32650 0.2-30 Available
Microplate Rotor 15 2 x 2 x 96wells 4000 2300 0.2 Available
Swing-out Rotor(500ml) with round buckets 16 4 x 500 5000 5470 5-500 Available
Swing-out Rotor with tube holders 17 4 x 50 5000 4390 5-50 Available
Swing-out Rotor with tube holders 18 4 x 8 x 15 4000 3160 5-15 Available
Swing-out Rotor with tube holders 19 4 x 2 x 50 4000 2950 5-50 Available
Product Images

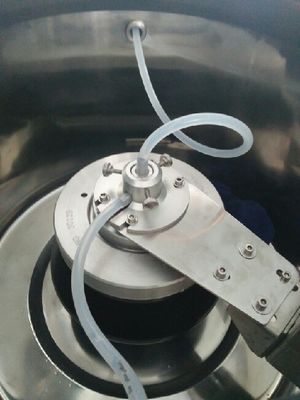

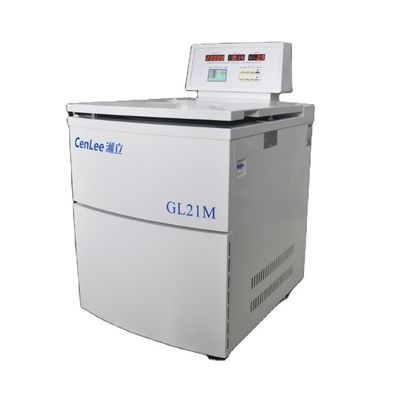

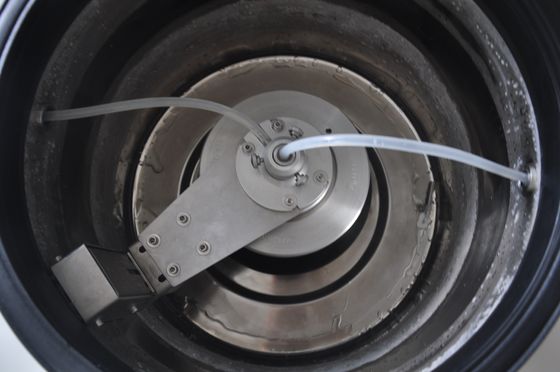

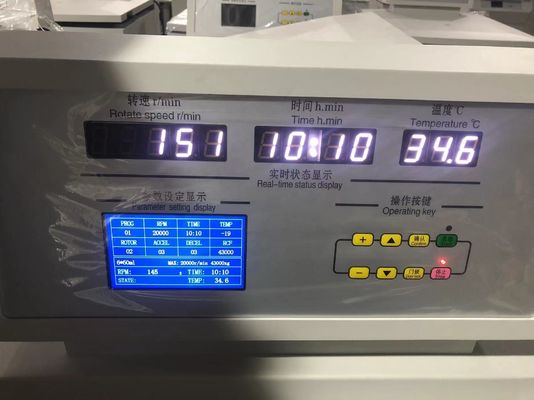

GL-21M Centrifuge front view with control panel GL-21M Centrifuge side view showing rotor chamber
