Floor Standing Refrigerated Centrifuge with -20°C to +40°C Cooling Low Noise ≤65dB and Stainless Steel Panel for Blood Bank Applications

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: CFL8R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
CFL8R
Minimum Order Quantity:
1
Specifications
Max speed:
8000r/min
Max capacity:
6x2400ml
Max RCF:
14336×g
Speed accuracy:
±20r/min
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Power:
6.6KW
Power supply:
AC 220V 50Hz 30A
Noise level:
≤65dB(A)
Dimensions:
960×860×1200mm (L×W×H)
Gross weight:
500kg
Rotor type:
CFL8R
Angle rotor capacity:
6×1000ml
Swing rotor capacity:
6×2400ml
Timing range:
1 Min~99h59S
Highlight:

Refrigerated Blood Bank Centrifuge

,

Low Noise Floor Standing Centrifuge

,

Stainless Steel Panel Centrifuge

Product Description
CFL8R 6 x 240 ml Floor type Preparative large-capacity blood bank refrigerated centrifuge
Product Overview
The CFL8R floor-standing refrigerated centrifuge delivers exceptional performance for processing blood bags and large sample volumes with precision temperature control from -20°C to +40°C.
Key Features
  • High-capacity processing: Accommodates 6 x 2400 ml or 12x400ml blood bag systems with vibration-dampened operation
  • Optimized separation: Delivers superior running performance for best separation results with minimal noise
  • Versatile rotor system: Compatible with extensive range of carriers and adapters for various tube types and blood bag systems without rotor changes
  • GMP-compliant design: Stainless steel control panel customizable to meet pharmaceutical industry requirements
  • Broad application: Ideal for radioimmunoassay, biochemistry, pharmaceutical applications, and blood product separation/purification
Additional Specifications
  • Available with internal or external cooling for GMP and clean-room environments
  • Non-wind shielded rotor for optimal sample temperature control
  • 6 placed x 1000ml/2400ml capacity
  • LED/LCD control panel for intuitive operation
  • 1-year manufacturer warranty
Technical Parameters
Model CFL8R ACC/DEC 1~10 level
Maximum speed 8000r/min Timing range 1 min~99h59S
Maximum RCF 14336×g Power 6.6KW
Maximum capacity 6×2400ml Power supply AC 220V 50Hz 30A
Speed Accuracy ±20r/min Noise ≤65dB(A)
Temperature range -20℃~+40℃ Dimensions 960×860×1200mm (L×W×H)
Temperature accuracy ±1℃ Gross weight 500kg
CFL8R Rotor Specifications
Rotor type No. Capacity Max Speed(r/min) Max RCF(×g)
Main machine CFL8R 8000 14336
Angle rotor NO.1 6×1000ml 8000 14336
Swing out rotor NO.2 6×2400ml 4600 7060
Swing out rotor NO.3 6×2×1000ml 4200 5900

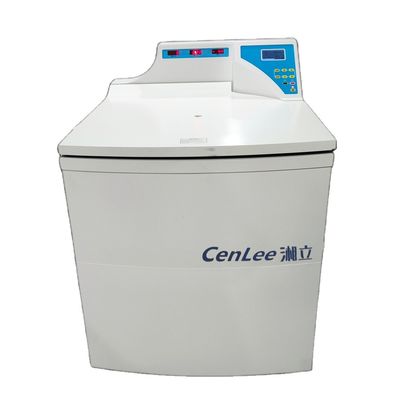

CFL8R floor type refrigerated centrifuge main view

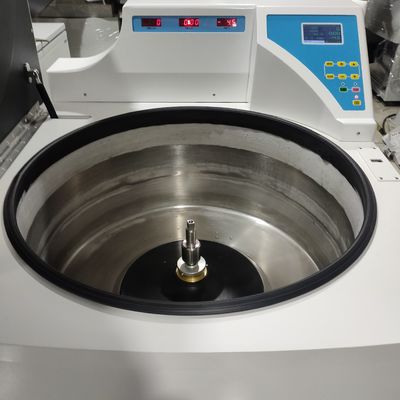

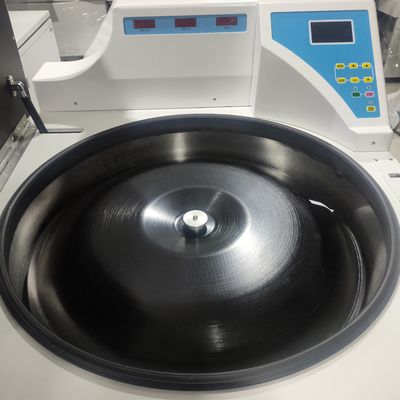

CFL8R centrifuge operational view showing control panel
