CFL6R Floor Standing Refrigerated Centrifuge with Eco-friendly R404a Refrigerant, Stainless Steel Panel, and GMP Compliance for Blood Bank and Laboratory Use

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: CFL6R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
CFL6R
Minimum Order Quantity:
1
Specifications
Max speed:
6000r/min
Max RCF:
6680×g
Max capacity:
6000ml
Speed accuracy:
±20r/min
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Power:
5.5KW
Power supply:
AC 220V 50Hz20A
Machine noise:
≤65dB(A)
Dimensions:
830×720×1250mm
Net weight:
268kg
Motor drive:
Frequency Converted Motor
Rotor type:
Angle Rotor, Swing Out Rotor
Rotor capacity:
6×300ml, 6×500ml, 6×1000ml
Rotor speed:
6000r/min, 4200r/min
Highlight:

Eco-friendly R404a Refrigerant Centrifuge

,

Stainless Steel Panel Centrifuge

,

GMP Compliance Blood Bank Centrifuge

Product Description

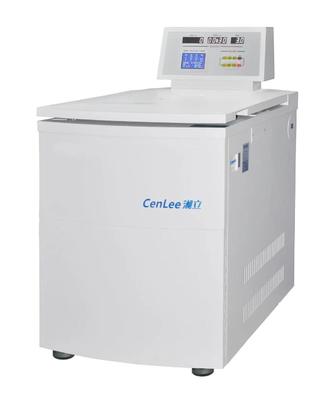

CFL6R Floor Standing Large Capacity (6x1000ml) Refrigerated Centrifuge
The CFL6R is a preparative large-capacity refrigerated centrifuge designed for high-performance separation applications in various industries.
Product Advantages
  • Flexible anti-friction system reduces wind resistance for faster acceleration to maximum speed
  • Eco-friendly R404a refrigerant system for fluorine-free, high-efficiency refrigeration
  • 6L large capacity separation capability
  • Customizable stainless steel panel control box meeting pharmaceutical industry GMP requirements
  • Ideal for radioimmunoassay, biochemistry, pharmaceutical applications, and blood product separation/purification
Key Features
  • User-friendly touch panel with LED digital or LCD display for real-time parameter adjustment
  • High-power brushless frequency conversion motor with European ultra-high speed bearings
  • Advanced frequency conversion speed controller for precise operation
  • Imported compressor unit with precise temperature control (±1℃), low vibration and noise
  • Programmable operation with storage for 9 user-defined programs and 40 custom working modes
  • Pre-cooling chamber design for fast cooling and efficient operation
  • Comprehensive safety system including double door lock, over-temperature/speed protection, and self-diagnosis
  • Pulse function for short centrifugation cycles
Technical Specifications
Model CFL6R Cryogen R404a
Maximum speed 6000r/min Acc/Dec time Customizable
Maximum RCF 6680×g Timing range 0-999min
Maximum capacity 6000ml Power 5.5KW
Speed accuracy ±20r/min Power supply AC 220V 50Hz 20A
Temperature range -20℃~+40℃ Noise level ≤65dB(A)
Temperature accuracy ±1℃ Dimensions 830×720×1250mm
Motor drive Frequency converted motor Net weight 268kg

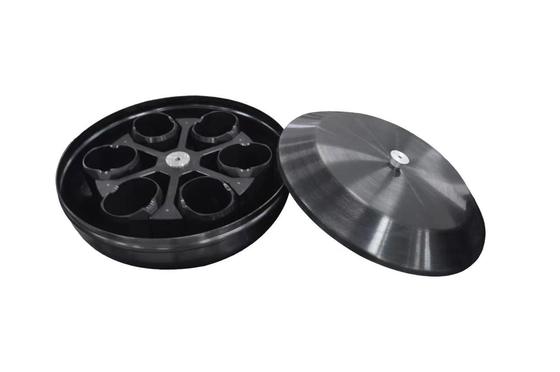

CFL6R Rotor Specifications
Rotor type No. Capacity Max Speed (r/min) Max RCF (×g)
Main machine CFL6R 6000 6680
Angle rotor NO.1 6×300ml 6000 5650
Angle rotor NO.2 6×500ml 6000 6680
Swing out rotor NO.3 6×1000ml 4200 5100
