CFH10R Floor Standing High Speed Refrigerated Centrifuge with 18300xg RCF 40 Procedures and 10 Levels Speed Control

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: CFH10R
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
CFH10R
Minimum Order Quantity:
1
Specifications
Max speed:
10000r/min
Max RCF:
18300xg
Max capacity:
6000ml
Speed accuracy:
±20r/min
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Timer range:
0-999min
Voltage:
AC220V50Hz30A
Power:
5.5KW
Noise level:
≤65dB(A)
Dimensions:
820×710×1150mm
Gross weight:
268kg
Angle rotor capacity:
6×300ml, 6×500ml, 6×1000ml
Swing rotor capacity:
6×1000ml, 4×1000ml
Speed levels:
10 Levels
Highlight:

18300xg Refrigerated Centrifuge

,

40 Procedures High Speed Centrifuge

,

10 Levels Speed Control Laboratory Centrifuge

Product Description

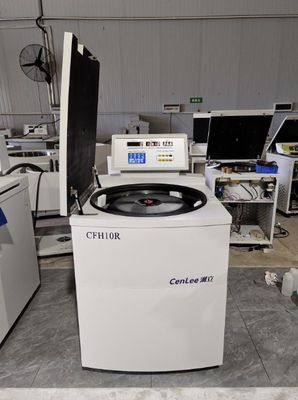

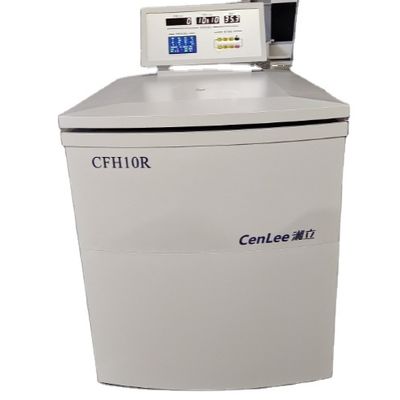

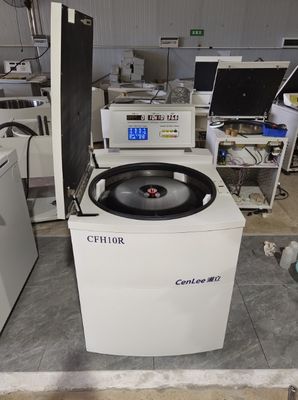

CFH10R Floor Standing High Speed Refrigerated Centrifuge Machine
10000rpm Large Capacity 6x1000ml
The CFH10R is a high-speed, large capacity refrigerated centrifuge designed for demanding laboratory applications requiring precision and reliability.
Key Features
  • LCD and LED display with microprocessor control and touch panel interface
  • High torque brushless inverter motor with European imported bearings for stable, maintenance-free operation
  • Advanced imported drive system and automatic control system for reliable performance
  • Comprehensive safety features including over-temperature, over-speed protection, and imbalance detection
  • Programmable operation with 40 preset procedures and real-time parameter adjustment
  • 10-level speed control for precise acceleration and deceleration
  • Pre-cooling centrifugal cavity design for rapid temperature reduction
  • Proprietary SCT speed control technology for fast operation and high efficiency
  • Unique SBT control technology and rotor design to minimize resuspension
Technical Specifications
Model CFH10R Temperature Accuracy ±1℃
Maximum Speed 10000r/min Timer Range 0-999min
Maximum RCF 18300xg Voltage AC220V 50Hz 30A
Maximum Capacity 6000ml Power 5.5KW
Speed Accuracy ±20r/min Noise Level ≤65dB(A)
Temperature Range -20℃~+40℃ Dimensions 820×710×1150mm
Gross Weight 268kg

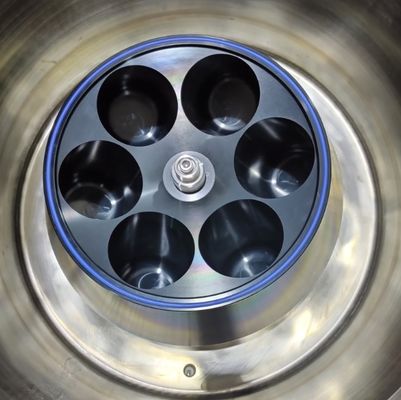

CFH10R Rotor Configurations
Rotor Type No. Capacity Max Speed (r/min) Max RCF (×g)
Main machine CFH10R 10000 18300
Angle rotor NO.1 6×300ml 10000 18300
Angle rotor NO.2 6×500ml 8000 11680

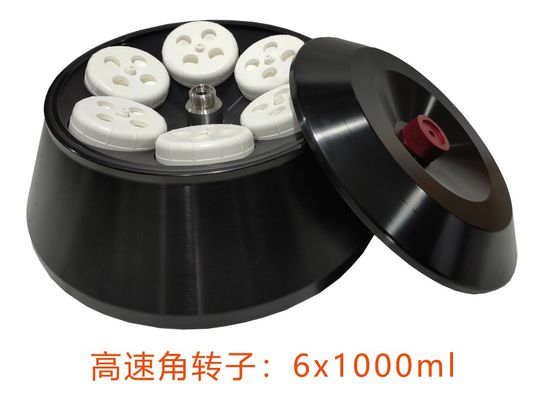

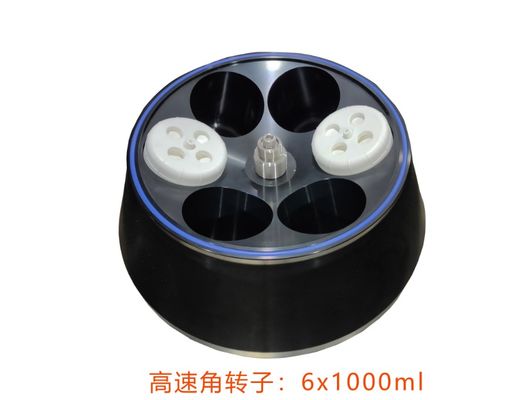

Angle rotor NO.3 6×1000ml 8000 12166
Swing out rotor NO.4 6×1000ml 4200 5100
Swing out rotor NO.5 4×1000ml 4200 4430
