High Speed 16000r/min Cold Tabletop Centrifuge with 21532*g and 12*5 ml Capacity for Laboratory Usage

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: TGL16
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
TGL16
Minimum Order Quantity:
1
Specifications
Max speed:
16000r/min
Max RCF:
21532*g
Power supply:
100-240V
Max capacity:
12*5 Ml
Motor type:
Brushless Motor
Speed accuracy:
±20r/min
Rotor type:
Angle Rotor
Rotor capacity:
24*1.5/2ml
Timing range:
0-99min
Machine noise:
≤55dB(A)
Power:
700W
Chamber diameter:
Φ250
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Net weight:
36kg
Highlight:

16000r/min Tabletop Centrifuge

,

21532*g Laboratory Centrifuge

,

12*5 ml Capacity Refrigerated Centrifuge

Product Description
High Speed Cold Tabletop Centrifuges

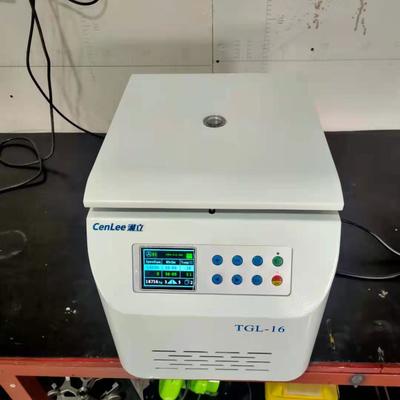

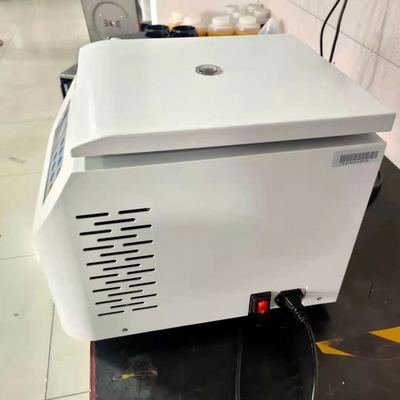

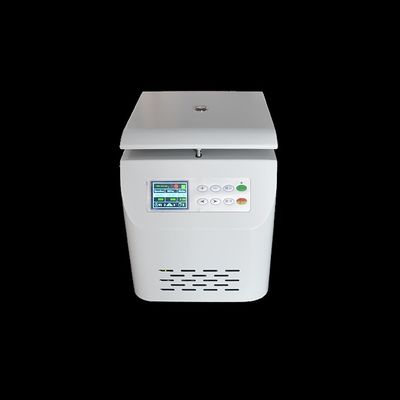

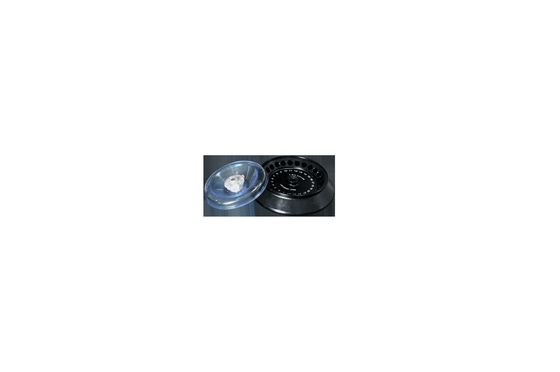

High speed cold tabletop centrifuge - front view High speed cold tabletop centrifuge - side view High speed cold tabletop centrifuge - control panel High speed cold tabletop centrifuge - rotor detail
Technical Specifications
Model TGL-16 Timing Range 0-99min
Maximum Speed 16000r/min Power Supply AC 220V 50Hz 10A
Maximum RCF 21532×g Machine Noise ≤55dB(A)
Maximum Capacity 60ml Power 700W
Speed Accuracy ±20r/min Chamber Diameter Φ250
Temperature Range -20℃~+40℃ Fastest Acc/Dec Time 13~30s
Temperature Accuracy ±1℃ Dimensions 295*400*360mm
Net Weight 36kg
TGL-16 Rotor Specifications
Rotor Type No. Capacity Max Speed (r/min) Max RCF (×g)
Main machine TGL-16 16000 21532
Angle rotor NO.1 24*1.5/2.2ml 15000 21532
Angle rotor NO.2 12*1.5/2.2ml 16000 17800
Angle rotor NO.3 12*5ml 12000 10142
Angle rotor NO.4 4*8*0.2ml PCR tubes 15000 13800

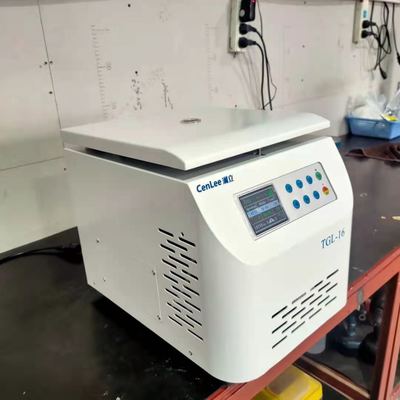

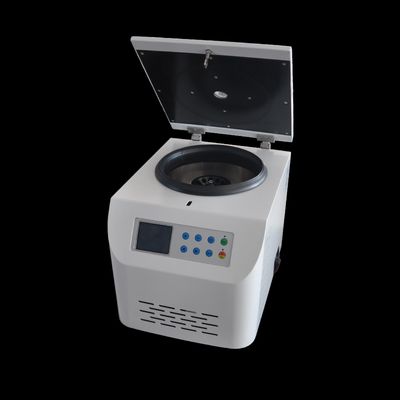

High speed cold tabletop centrifuge - operation view High speed cold tabletop centrifuge - interior view High speed cold tabletop centrifuge - display detail High speed cold tabletop centrifuge - rotor assembly
