Floor Standing Large Capacity Refrigerated Centrifuge with Swinging 6 Buckets 6037×g and 4x1000ml Capacity for Blood Bank

Place of Origin: Hunan, China
Brand Name: Cenlee
Model Number: Cenlee5FR
Product Details
Place of Origin:
Hunan, China
Brand Name:
Cenlee
Model Number:
Cenlee5FR
Minimum Order Quantity:
1
Specifications
Max speed:
6000r/min
Max RCF:
6037×g
Power supply:
AC 220V
Max capacity:
4000ml
Speed accuracy:
±20r/min
Power:
1700W
Temperature range:
-20℃~+40℃
Temperature accuracy:
±1℃
Machine noise:
≤65 DB (A)
Dimensions:
620×740×810 Mm
Net weight:
150 Kg
Chamber diameter:
Φ500
Motor type:
Brushless Motor
Rotor type:
Swing Out Rotor
Timing range:
0-999 Min
Highlight:

Swinging 6 Buckets Refrigerated Centrifuge

,

6037×g Blood Bank Centrifuge

,

4x1000ml Laboratory Centrifuge

Product Description
Floor Standing Large Capacity Refrigerated Swinging 6 Buckets Centrifuge

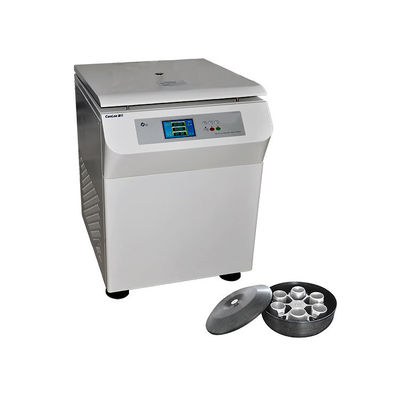

Floor standing refrigerated centrifuge main unit
Technical Parameters
Model CenLee5FR Timing range 0-999 min
Maximum speed 6000r/min Power supply AC 220V
Maximum RCF 6037×g Machine noise ≤65 dB (A)
Maximum capacity 4000ml Dimensions 620×740×810 mm
Speed Accuracy ±20r/min Net Weight 150 kg
Power 1700W Chamber diameter Φ500
Temperature range -20℃~+40℃ Temperature accuracy ±1℃
Cenlee5FR Rotor Specifications
Rotor type Rotor number Capacity Maximum speed (r/min) Maximum RCF (×g)
Main machine CenLee5FR 6000 6037
Angle rotor NO.1 6x50ml 6000 5120
Swing rotor body (max speed 4000r/min without hood) NO.2 4x1000ml 5000 6037
Swing round cup NO.2 4x1000ml 5000 6037
Adapter NO.2 4x500ml, 4x300ml, 4x3x100ml, 4x5x50ml, 4x14x15ml, 4x37x7ml, 4x24x5ml, 4x28x1.5ml, 4x200ml (Blood bag), 4x250ml 5000 6037
Swing rotor body (max speed 4000r/min without hood) NO.3 6x500ml 5000 5925
Square bucket rotor Six buckets Various adapter configurations 5000 5925
Product Details
Close-up view of centrifuge components

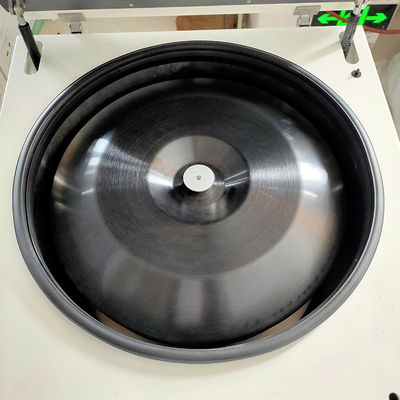

Centrifuge interior view

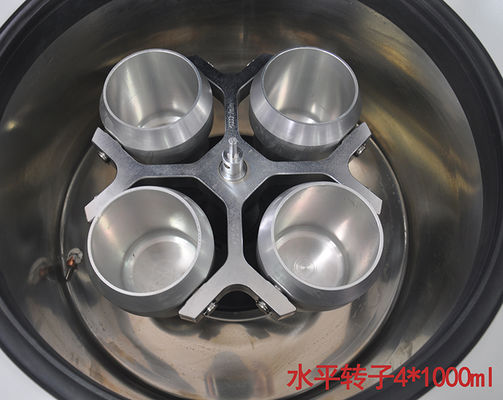

4x1000ml swinging buckets configuration
4x1000ml swinging buckets

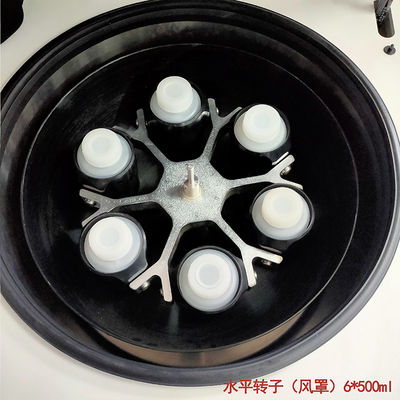

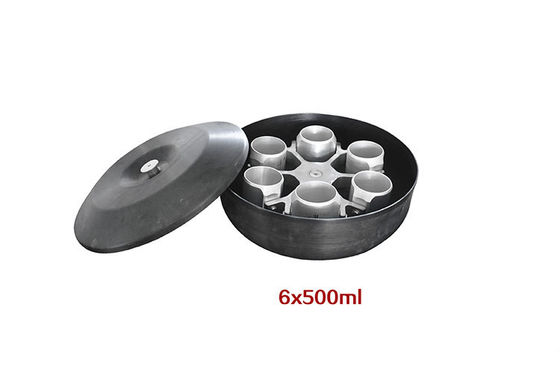

6x500ml swing out 6 buckets configuration
6x500ml swing out 6 buckets

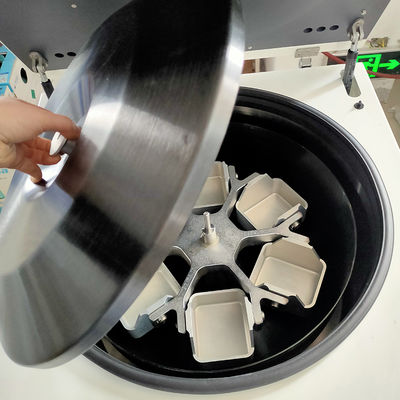

Swinging 6 buckets with hood
Swinging 6 buckets with hood
4x30x5ml adapter configuration
4x30x5ml adapter configuration
6x4x50ml adapter configuration
6x4x50ml adapter configuration
6x10x15ml adapter configuration
6x10x15ml adapter configuration
Package Details
Centrifuge packaging overview
Centrifuge packaging side view
Centrifuge packaging detail
Centrifuge packaging label
