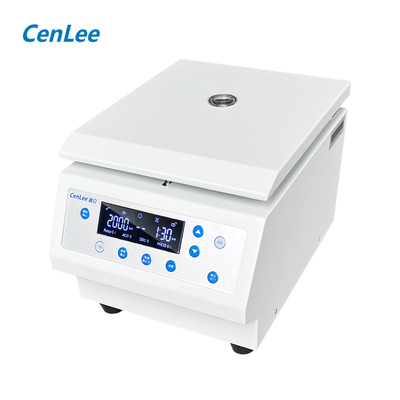

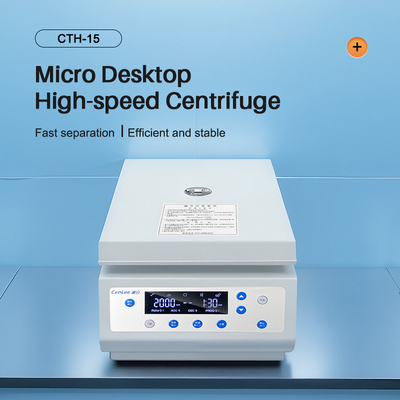

CTH-15 Micro High-Speed Centrifuge 16500rpm 21532xg Compact Lab Centrifuge with Multi-Rotor Options
Features:

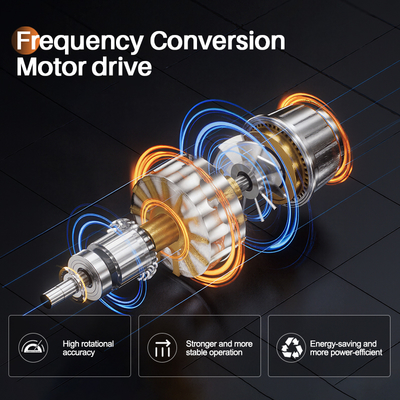

1. Microcomputer control, AC frequency conversion motor drive, low noise, energy saving and environmental protection, small body size, parameters can be changed at any time during operation, no need to stop.
2. Fast rising speed, only 13 seconds to the highest speed. Both instantaneous centrifugation and continuous centrifugation can be selected, Multi program can be saved.

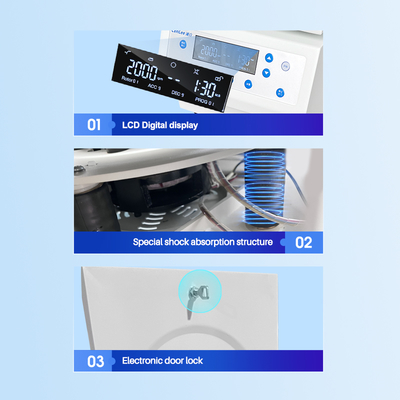

3. Large LCD screen, Setting data and the actual data together with the running rotor capacity can be display at the same time, easy operation
4.10 group acceleration and deceleration settings, unique vibration absorptive system to achieve best centrifugal effect
5. Low noise - 55dB or lower, good experience effect.

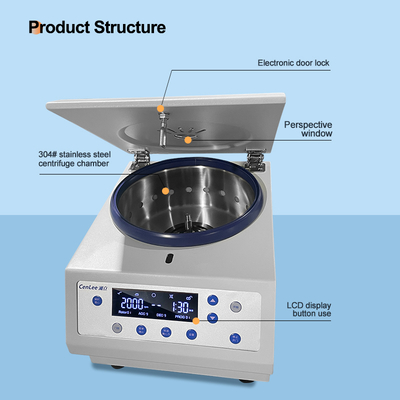

6. Equipped with over-speed, door cover self-locking, stainless steel inner sleeve, three-level protective sleeve and other protections to ensure the safety of people and machines.
7. The countdown time is less than one minute, displayed in seconds, and supports program-controlled loading to meet the precise separation needs of different industries.
Technical parameter
| Model | CTH-15 | Timing range | 1min-99min |
| Maximum speed | 16500r/min | Power supply | AC 220V 50Hz 10A |
| Maximum RCF | 21532×g | Machine noise | ≤65dB(A) |
| Maximum capacity | 24x1.5/2.0ml | Dimensions | 240×320×220(mm) |
| Speed Accuracy | ±10r/min | Net Weight | 11kg |
CTH-15 Rotor
| Rotor type | No. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Main machine | CTH-15 | 15000 | 21380 | |
| Fixed angle rotor | NO.1 | 24×1.5/2.2ml | 15000 | 21380 |
| Adaptor | NO.2 | 18x5ml | 15000 | 21380 |
| Fixed angle rotor | NO.3 | 24×1.5/2.2ml | 15000 | 21380 |
| Fixed angle rotor | NO.4 | 8×4x0.2ml/PCR | 15000 | 21380 |
| Capillary | NO.5 | 24xCapillary tubes | 12000 | 13800 |
Located in Changsha, laboratory centrifuge production centre, We Hunan CenLee Scientific Instrument Co., Ltd, manufacture lab centrifuge such as refrigerated centrifuge, blood centrifuge, high speed centrifuge, PRP medical centrifuge etc for more than 40 years.
We focus on intelligent optimization and new technology integration for centrifuge, applied several core patents already. Achieved great progress for customize product and efficiency improvement, especially the safety and reliability promotion, with these achievements we powered our brand competitiveness, successfully listed in the top-level suppliers for life science centrifuge application.
Our product widely used in following field: bio-chemistry high education, agriculture science, bio-chemistry scientific research, biological pharmacy, petrochemical industry, evidence investigation, etc.
Our core philosophy is “CenLee Technology- Improve your Precision in Wisdom Lab”.
1. How can I choose the suitable one of centrifuge?
Dear customer, please tell me the information as below, then we can recommend you suitable model.
a, please tell me your usage of centrifuge.
b, let me know how many max speed and max volume of you need.
c, please tell us the size of tubes you using.
d, let us know the whether you need refrigerated function or not.
2.Can I get some samples?
We are honored to send you our samples and according to our company’s rule.
3.How about the delivery time?
For Sample order will be prepared within 5 Days.
For bulk order, normally,it needs 20-30days, it is based on your QTY
4.Can you do custom-made?
OEM, ODM both welcomed. We also can help you to design.
Silk print your logo on the product; Customized Carton box;
Design and produce based on your Idea and draft
5.How about your after service?
a, Any Inquiries will be replied within 24 hours
b, Professional manufacturer, Quality issue, competitive price
c, All products will be strictly quality checked and well-packed before shipping
d,The free warranty period for the equipment is 12 months from the date of installation.
e,If the equipment fails during normal use, our company will promptly repair it free of charge and replace the corresponding accessories free of charge (except for human failure and force majeure).
6. Can you tell me your main customers?
Sorry we could not tell you except customer’s permission. At the same time,your information also will be protected.
