| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | carton |
| Supply Capacity: | 500 sets per month |

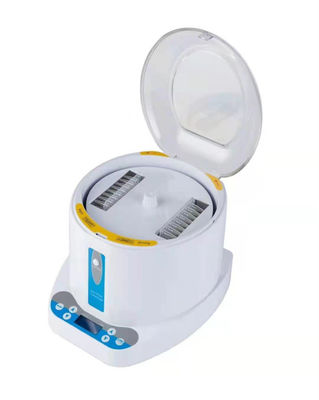

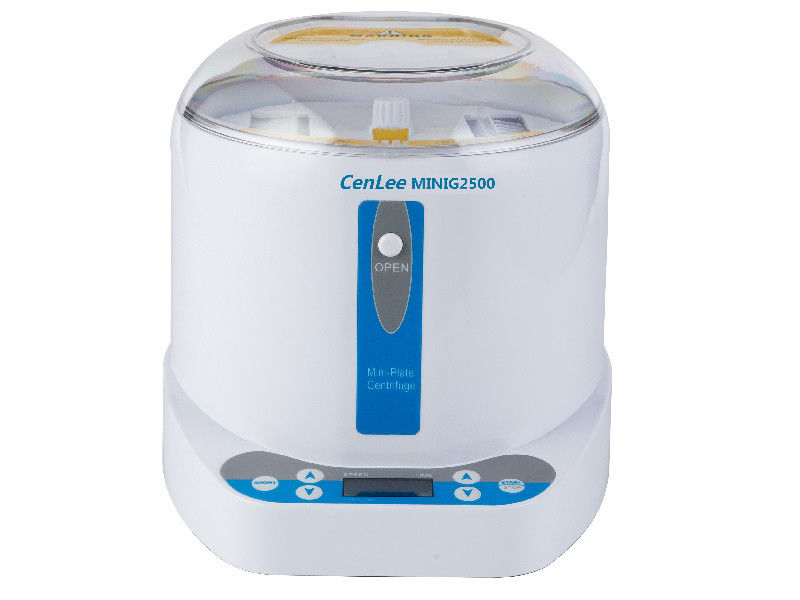

MINIG2500 Micro plate spiner mini benchtop plate centrifuge PCR
1. Advanced Control System, Excellent separation
◆ kinds of Accel/Decel modes can be selected, or directly set up the time of Accel/Decel; User can set up the operate parameter by themselves, to achieve the best centrifugal result.
◆ Short running function, easy to diversification centrifugation.
◆ Proprietary SCT speed control technical, high efficiency.
◆ Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.
2. High Safety, Ease of use
◆ Automatic rotor identification system, no need to select rotor No.
◆Over temperature, over speed, door and unbalanced protection.
◆Steel body, Stainless steel chamber, Steel Protective sleeve.
◆ Can take the rotor with aerosol-tight lid for use with hazardous samples.
3. User-friendly operation,Information rich display
◆ Bright LED display, the Program, Accel/Decel modes, RPM/RCF, Time, and Temperature are all easy to set up.
◆Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, can be store and use 40 kinds of self-defining operating modes directly by user-self
4. Quality parts, Reliable and long-lasting
◆Brushless induction motor with high torque, supper speed driving shaft, Freon-free compressor from Europe.
◆super duraluminium alloys from Aluminum Corporation of China Limited (CHALCO).
5. Low noise, small vibration
◆Noise abating insulation including lower noise fans combine to reduce the audible operating noise to ≤58 dB.
◆Two levels system for reducing vibration ensure its stable operation.
6. Liquid Seeping Prevention
◆A unique and reliable rubber isolation gasket firmly seals the motor and drive shaft to prevent liquid from seeping into the motor and electronic components.
Technical Parameters:
| Model | MiniG2500 |
| Max.Speed (r/min) | 3000 |
| Max. RCF (x g) | 600 |
| Max. Capacity (places x ml) | 2 x PCR plates/Micro-plates |
| Timer Range (sec/min) | 1-99 |
| Control | Microprocessor |
| Drive | Brushless Motor |
| Display | LCD |
| Speed Range (r/min) | 500-3000 |
| Speed Control Accuracy (r/min) | ±20 |
| Noise (dB) | ≤ 60 |
| Power Supply V (Hz) | 220/110V (50/60) |
| Dim. (W x D x H) mm | 230 x 195 x 195 |
| Weight (kgs) | 5.5 |
