Brand Name: | CenLee |
Model Number: | CenLee16K |
MOQ: | 1 set |
Price: | negotiable |
Supply Ability: | 50 sets/month |
Tabletop high Speed Centrifuge is widely used in the field of clinical medicine, biochemistry, genetic engineering, immunology etc. It is a popular with clinic and reached lab.
PRODUCT FEATURES •

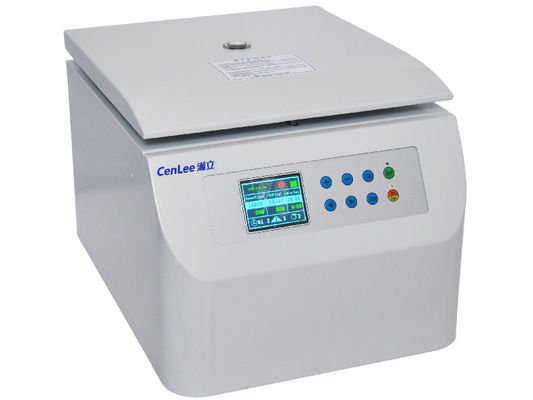

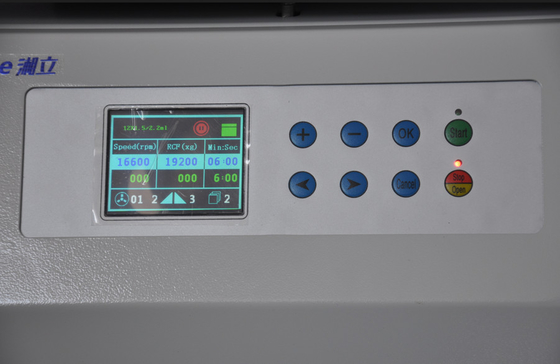

Intelligent microcomputer control , LCD or LED digital display is convenient to read and store various parameters .
• The parameters can be changed arbitrarily during operation without stopping the machine .
• 9 speed-up and 10 speed-reduction gears , three groups of damping shock absorption , instantaneous and continuous centrifugation available .
• Unique design and excellent rubber isolation ring can prevent condensation water from entering the motor, protecting the motor effectively.
•The special spring taper sleeve is used to connect the rotor and the main shaft . It is convenient and simple to install and unload the rotor, without direction , expand the contact area , safe and reliable .
• Equipped with multiple protections such as over speed , over temperature , door cover self-locking , unbalanced , stainless steel inner sleeve , and three-level protective sleeve to ensure the safety of people and machines .
Cenlee 16K laboratory centrifuge uses the principle of centrifugal sedimentation to separate, concentrate or purify cells (particles) with different densities in the solution under the action of centrifugal force.

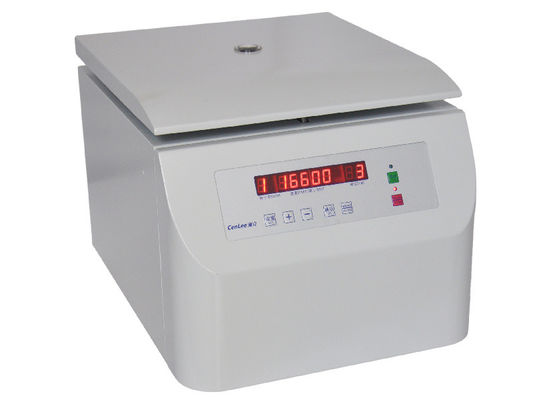

LED digital display
Technical Parameter
Model | CenLee 16K | Timing range | 0-99min |
Maximum speed | 16600r/min | Power supply | AC 220V 50Hz 10A |
Maximum RCF | 21532×g | Machine noise | ≤55dB(A) |
Maximum capacity | 400ml | Power | 400W |
Sample range | 0.5ml-100ml | Chamber diameter | Φ280 |
Speed Accuracy | ±20r/min | Acc/Dec fastest time | 25~30s |
Net Weight | 28kg | Dimensions | 360×470×320mm |

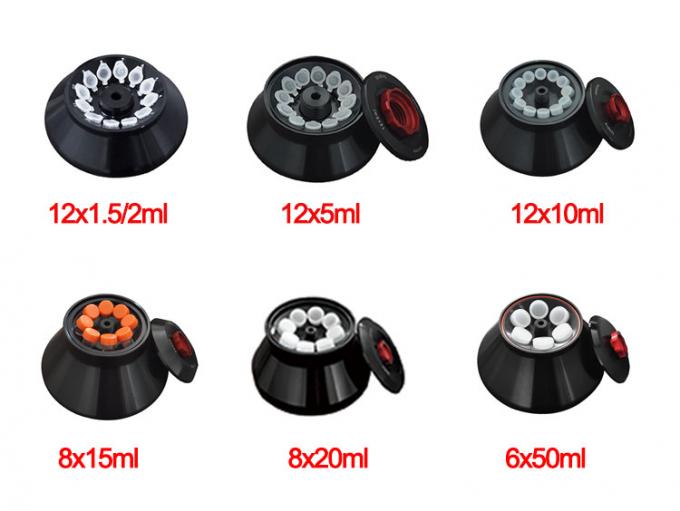

Cenlee 16K laboratory centrifuge Rotor options
Rotor type | No. | Capacity | Max Speed(r/min) | Max RCF(×g) |
Main machine | CenLee16K | 16600 | 21532 | |
Angle rotor | NO.1 | 12×1.5/2.2ml | 16600 | 19200 |
Angle rotor | NO.2 | 12×5ml | 15000 | 16099 |
Angle rotor | NO.3 | 12×10ml | 13000 | 16249 |
Angle rotor | NO.4 | 8×15ml (Tip) | 11000 | 12580 |
Angle rotor | NO.5 | 8×20ml | 13000 | 17194 |
Angle rotor | NO.6 | 6×50ml (Round) | 11000 | 13122 |
Angle rotor | NO.7 | 6×50ml (Tip) | 11000 | 13122 |
Angle rotor | NO.8 | 24×1.5/2.2ml | 15000 | 21532 |
Angle rotor | NO.9 | 4×100ml | 10000 | 10845 |
Angle rotor | NO.10 | 48×0.5ml | 12000 | 12650 |
Angle rotor | NO.11 | 48×1.5ml/2.2ml | 12000 | 12650 |
Enzyme Plate rotor | NO.12 | 2×2×48 Well | 3000 | 1400 |
Product details:

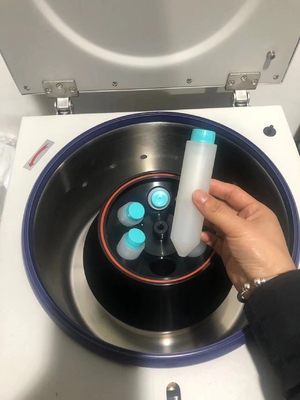

Real shoot in client's lab
Inside
Angle rotor with adapter
50ml to 15ml adapter
