Clinical Benchtop Centrifuge
Created with Pixso.

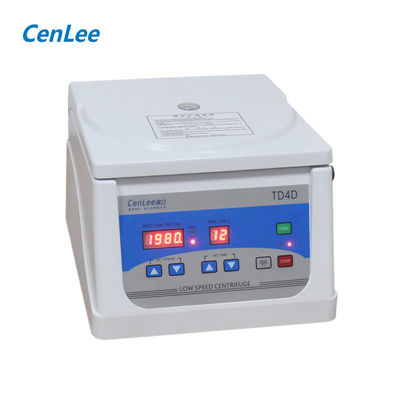

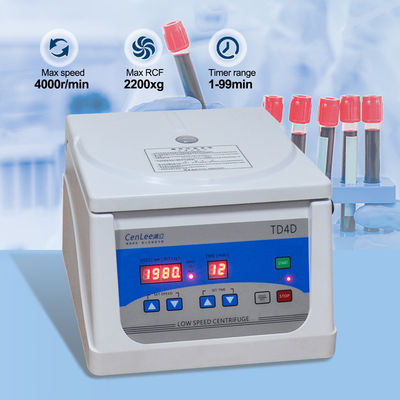

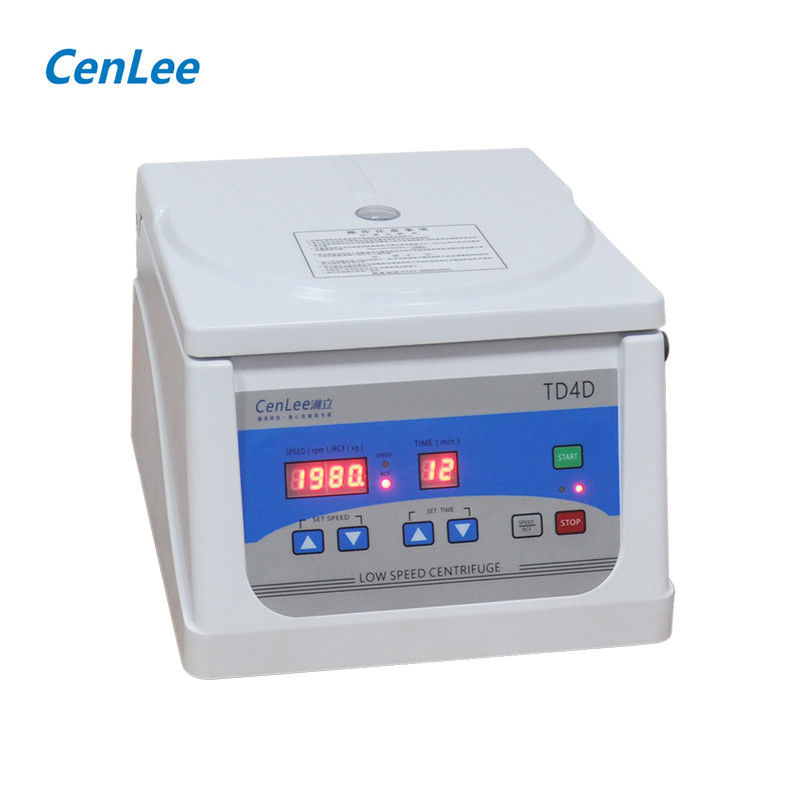

TD4D Automatic Balancing Centrifuge Air-Cooled Equipped with DC Brushless Motor

TD4D Automatic Balancing Centrifuge Air-Cooled Equipped with DC Brushless Motor

Brand Name: CenLee
Model Number: TD4D
MOQ: 1 SET
Price: negotiable
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Packaging Details:
wooden case
Supply Ability:
500 sets per month
Highlight:

Air-Cooled Centrifuge

,

DC Brushless Motor Centrifuge

,

Automatic Balancing Centrifuge

Product Description
TD4D Automatic Balancing centrifuge Air-cooled centrifuges with DC brushless motor



Product Features

  • Microcomputer-controlled, driven by a DC brushless motor, ensuring smooth operation, low noise, and an enhanced user experience.
  • Plastic casing with a sleek and aesthetically curved design, equipped with a special damping system and automatic balancing function.

  • Enables easy conversion and setting between rpm and rcf readings for convenient operation.

  • Features multiple protection functions, including overspeed protection, as well as instant and continuous centrifugation modes. Automatic fault alarm ensures safety and reliability.

  • Air-cooled centrifuge design effectively reduces temperature rise during operation.

  • Allows real-time parameter adjustments without the need to stop the machine.

Specifications
Small Low Speed Centrifuge, with rotor
Model TD4D
Max.Speed (r/min) 4000
Max. RCF (x g) 2200
Max. Capacity (ml) 8 x 10/15/20ml
Control Microprocessor
Drive DC Brushless Motor
Speed Range (r/min) 100-4000
Speed Control Accuracy (r/min) ±10
Timer Range(min) 1-99
Noise (dB) ≤ 60
Power Supply V (Hz) 220/110 (50/60), 3A, single phase
Dim. (W x D x H) mm 255 x 310 x 200
N.W (kg) 5KG
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 8 x 15 4000 2200 5-15 Available
Fixed Angle Rotor 12 x 5 4000 2200 5 Unavailable
