Blood Bank Refrigerated Centrifuge
Created with Pixso.

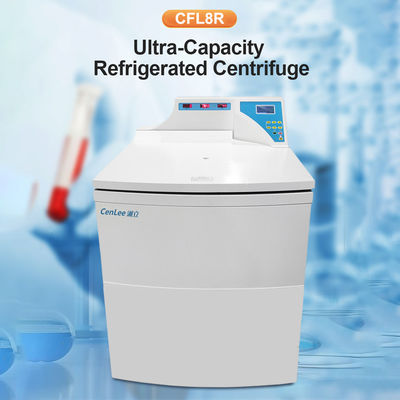

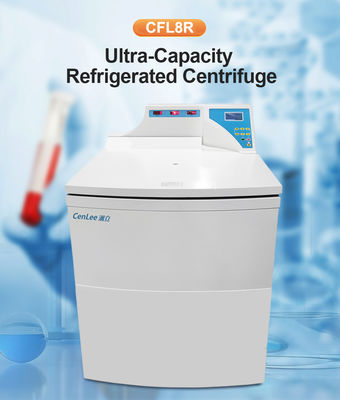

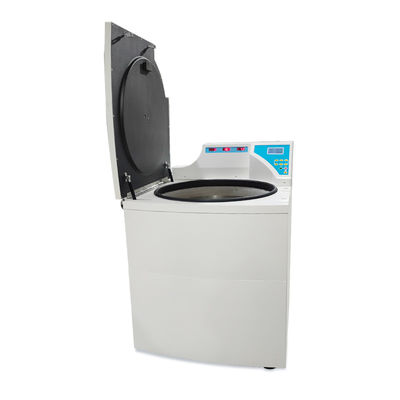

CFL8R Microcomputer Controlled 14.4L low Speed Refrigerated Centrifuge with R404a Refrigerants and Ultra-high Capacity

CFL8R Microcomputer Controlled 14.4L low Speed Refrigerated Centrifuge with R404a Refrigerants and Ultra-high Capacity

Brand Name: Cenlee
Model Number: CFL8R
MOQ: 1 set
Price: negotiable
Supply Ability: 500 sets per month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Feature:
Ultra-high Capacity
Rotor Type:
Swing Out Rotor Or Angle Rotor
Refrigeration:
R404a Refrigerants
Control:
Microcomputer
Max. Capacity:
4x2400ml
Packaging Details:
Wooden Case
Supply Ability:
500 sets per month
Highlight:

14.4L Refrigerated Centrifuge

,

Microcomputer Controlled Refrigerated Centrifuge

,

Ultra-high Capacity Refrigerated Centrifuge

Product Description

14.4L Ultra-high capacity refrigerated centrifuge low speed Refrigerated Centrifuge



  • Utilizes advanced international digital control circuitry to ensure more precise and stable centrifuge speed. Equipped with a high-power variable  frequency speed-regulating motor and an advanced frequency converter, guaranteeing a longer service life for the entire machine.
  • Features an imported environmentally friendly fluorine-free refrigeration unit (refrigerant R404a), allowing adjustable temperature with high precision and low noise.
  • Large capacity: Accommodates 6×2400ml or 12×400ml blood bags in a single run, compatible with various separators.
  • Dual LED/LCD display: The left digital screen shows real-time chamber parameters, enabling clear long-distance observation of speed, centrifugal force, temperature, and centrifugation time; the right color LCD screen features a fully Chinese operating system.
  • Programmable, storable, and retrievable operation programs; users can set up to 30 programs for daily use. Offers 1~10 adjustable acceleration/deceleration rates, allowing flexible customization of the centrifugation process. Includes various centrifuge bottles (cup sleeves) for optimal results, with automatic RCF calculation.
  • Stainless steel chamber, automatic electronic dual-latch door lock. Equipped with multiple safety protections such as over-temperature, over-speed, electronic door lock, and imbalance detection. Features a triple-layer protective casing for enhanced safety, ensuring the security of both personnel and equipment.
Specifications
Floorstanding Superlarge Capacity Refrigerated Centrifuge, without rotor
Model CFL8R
Max.Speed (r/min) 8000
Max. RCF (x g) 14336xg
Max. Capacity (ml) 14400
Control Microprocessor
Drive AC Frequency Conversion Motor with large torque
Accel/Decel Rates 10/10
Programmability 40 programs
Refrigeration Environmental CFC-free Refrigeration System with R404a refrigerant
Speed Range (r/min) 100-8000
Speed Control Accuracy (r/min) ±10
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(hr:min:sec) 1min~99h59min
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 30A, 3 phase
Dim. (W x D x H) mm 960 x 860 x 1200
Weight (kg) 500

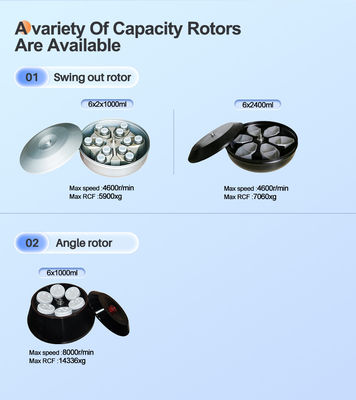

Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 6 x 1000 8000 14336 0.2-1000 Available
Swing-out Rotor with wind shield 2 6 x 2400 4600 7060 0.2-2400 Available
Swing-out Rotor with wind shield 3 6 x 2 x 1000 4200 5900 0.2-1000 Available



CFL8R Microcomputer Controlled 14.4L low Speed Refrigerated Centrifuge with R404a Refrigerants and Ultra-high Capacity 0



CFL8R Microcomputer Controlled 14.4L low Speed Refrigerated Centrifuge with R404a Refrigerants and Ultra-high Capacity 1



CFL8R Microcomputer Controlled 14.4L low Speed Refrigerated Centrifuge with R404a Refrigerants and Ultra-high Capacity 2



CFL8R Microcomputer Controlled 14.4L low Speed Refrigerated Centrifuge with R404a Refrigerants and Ultra-high Capacity 3



CFL8R Microcomputer Controlled 14.4L low Speed Refrigerated Centrifuge with R404a Refrigerants and Ultra-high Capacity 4

FAQ:



1. How can I choose the suitable one of centrifuge?

Dear customer, please tell me the information as below, then we can recommend you suitable model.

a, please tell me your usage of centrifuge.

b, let me know how many max speed and max volume of you need.

c, please tell us the size of tubes you using.

d, let us know the whether you need refrigerated function or not.



2.Can I get some samples?

We are honored to send you our samples and according to our company’s rule.



3.How about the delivery time?

For Sample order will be prepared within 5 Days.

For bulk order, normally,it needs 20-30days, it is based on your QTY



4.Can you do custom-made?

OEM, ODM both welcomed. We also can help you to design.

Silk print your logo on the product; Customized Carton box;
Design and produce based on your Idea and draft



5.How about your after service?

a, Any Inquiries will be replied within 24 hours

b, Professional manufacturer, Quality issue, competitive price

c, All products will be strictly quality checked and well-packed before shipping

d,The free warranty period for the equipment is 12 months from the date of installation.

e,If the equipment fails during normal use, our company will promptly repair it free of charge and replace the corresponding accessories free of charge (except for human failure and force majeure).



6. Can you tell me your main customers?

Sorry we could not tell you except customer’s permission. At the same time,your information also will be protected.
