Blood Bank Refrigerated Centrifuge
Created with Pixso.

CFL8R 6x2400ml Ultra-high Capacity Refrigerated Centrifuge For Central Blood Station And Biological Products Field

CFL8R 6x2400ml Ultra-high Capacity Refrigerated Centrifuge For Central Blood Station And Biological Products Field

Brand Name: CenLee
Model Number: CFL8R
MOQ: 1 SET
Price: negotiable
Supply Ability: 500 sets per month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Feature:
Pre-cooling Design
Rotor Type:
Swing Out Rotor Or Angle Rotor
Refrigeration:
R404a Refrigerants
Control:
Microcomputer
Max. Capacity:
4x2400ml
Packaging Details:
wooden case
Supply Ability:
500 sets per month
Highlight:

Ultra-high capacity refrigerated centrifuge

,

2400ml refrigerated centrifuge

,

Central Blood Station refrigerated centrifuge

Product Description

6x2400ml Ultra-high capacity refrigerated centrifuge for Central Blood Station and biological products field



  • Microprocessor control, user-friendly operationl panel, LED and LCD dual display, running protocols can be stored automatically, RCF value can be set directly to start runs.
  • High frequency brushless motor, equipped with super speed motor shaft ensures its smooth running.
  • Multistage damping system and CFC-free compressor from Europe offers tiny vibration, low noise and environmental protection.
  • Steel body, stainless steel chamber and imported key components for easy cleaning and durability. Designed with various protection devices for maximum operational safety, such as lid lock system, over-speed detection, over-temperature detection, working life caculation for unit and rotors and so on.
  • Pre-cooling design can give fast cooling for the chamber. Proprietary speed control technology ensure its fast acceleration and deceleration for high efficiency.
  • Ten(0-9) acceleration and deceleration rates can be called or directly set desired time for accel/decel, and it can store up to 40 runs for repetitive operation.
  • Unique braking control technique and rotor design can effectively avoid suspension to ensure getting maximum specimen.
  • Super large capacity of 14.4L to maximize your thoughput, e.g. it can process 12 triple or quadruple bloodbags of 400ml or 24 triple bloodbags of 200ml at one run.
  • Hold on function for short and quick centrifugation
Specifications
Floorstanding Superlarge Capacity Refrigerated Centrifuge, without rotor
Model CFL8R
Max.Speed (r/min) 8000
Max. RCF (x g) 14336
Max. Capacity (ml) 14400
Control Microprocessor
Drive AC Frequency Conversion Motor with large torque
Accel/Decel Rates 10/10
Programmability 40 programs
Refrigeration Environmental CFC-free Refrigeration System with R404a refrigerant
Speed Range (r/min) 100-8000
Speed Control Accuracy (r/min) ±10
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(hr:min:sec) 1min~99h59min
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 30A, 3 phase
Dim. (W x D x H) mm 960 x 860 x 1200
Weight (kg) 500
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 6 x 1000 8000 14336 0.2-1000 Available
Swing-out Rotor with wind shield 2 6 x 2400 4600 7060 0.2-2400 Available
Swing-out Rotor with wind shield 3 6 x 2 x 1000 4200 5900 0.2-1000 Available

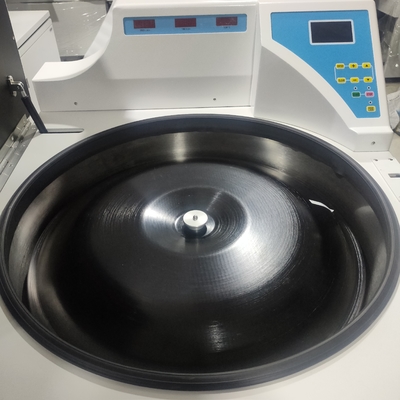

CFL8R 6x2400ml Ultra-high Capacity Refrigerated Centrifuge For Central Blood Station And Biological Products Field 0

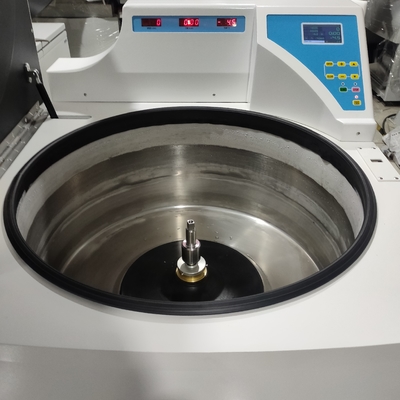

CFL8R 6x2400ml Ultra-high Capacity Refrigerated Centrifuge For Central Blood Station And Biological Products Field 1

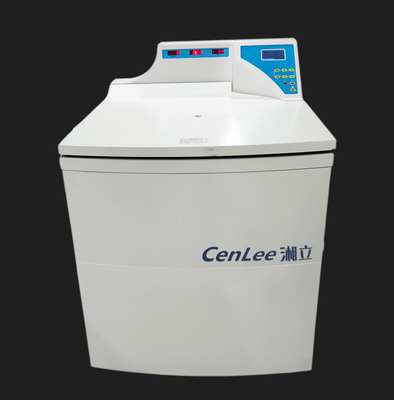

CFL8R 6x2400ml Ultra-high Capacity Refrigerated Centrifuge For Central Blood Station And Biological Products Field 2

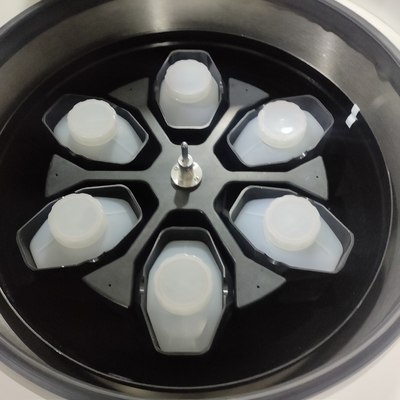

CFL8R 6x2400ml Ultra-high Capacity Refrigerated Centrifuge For Central Blood Station And Biological Products Field 3

FAQ:



1. How can I choose the suitable one of centrifuge?

Dear customer, please tell me the information as below, then we can recommend you suitable model.

a, please tell me your usage of centrifuge.

b, let me know how many max speed and max volume of you need.

c, please tell us the size of tubes you using.

d, let us know the whether you need refrigerated function or not.



2.Can I get some samples?

We are honored to send you our samples and according to our company’s rule.



3.How about the delivery time?

For Sample order will be prepared within 5 Days.

For bulk order, normally,it needs 20-30days, it is based on your QTY



4.Can you do custom-made?

OEM, ODM both welcomed. We also can help you to design.

Silk print your logo on the product; Customized Carton box;
Design and produce based on your Idea and draft



5.How about your after service?

a, Any Inquiries will be replied within 24 hours

b, Professional manufacturer, Quality issue, competitive price

c, All products will be strictly quality checked and well-packed before shipping

d,The free warranty period for the equipment is 12 months from the date of installation.

e,If the equipment fails during normal use, our company will promptly repair it free of charge and replace the corresponding accessories free of charge (except for human failure and force majeure).



6. Can you tell me your main customers?

Sorry we could not tell you except customer’s permission. At the same time,your information also will be protected.
