Mini Benchtop Centrifuge
Created with Pixso.

Low Speed Centrifuge Swing Out Rotor Horizontal Centrifuge PRP

Low Speed Centrifuge Swing Out Rotor Horizontal Centrifuge PRP

Brand Name: Cenlee
Model Number: CTL420 Horizontal centrifuge PRP
MOQ: 1 set
Price: negotiable
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Name:
CTL420 Prp Centrifuge Centrifuge
Max. RPM::
4200
Max. RCF::
2760 X G
Max. Capacity::
240ml
Temp. Control::
N/A
Noise (dB):
≤ 60
Packaging Details:
carton
Supply Ability:
500 sets/month
Highlight:

Swing Out Rotor Horizontal Centrifuge

,

PRP Horizontal Centrifuge

,

PRP Low Speed Centrifuge

Product Description

Low Speed Centrifuge Swing Out Rotor Horizontal Centrifuge PRP



  1. Used in biochemistry laboratories, clinical testing in hospitals and so on.
  2. Microprocessor-based controlled and DC brushless motor drived for smooth running and low noise.
  3. Steel boby with compact and streamline design and unique damping system for automatic balancing function.
  4. User-friendly operational panel wich automatic RCF/RPM mode.
  5. Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
  6. Ventilated centrifuge for small temperature rise during seperation.
  7. Various rotors designed for different capacity tubes for your option.
Specifications
Small Low Speed Universal Centrifuge, without rotor
Model CTL420
Max.Speed (r/min) 4000
Max. RCF (x g) 2760
Max. Capacity (ml) 240
Control Microprocessor
Drive DC Brushless Motor
Speed Range (r/min) 100-4000
Speed Control Accuracy (r/min) ±30
Timer Range(min) 1-99
Noise (dB) ≤ 60
Power Supply V (Hz) 220/110 (50/60), 5A, single phase
Dim. (W x D x H) mm 355 x 485 x 285
Weight (kg) 22
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 18 x 10 4000 2200 5-15 Available
Fixed Angle Rotor 12 x 20 4000 2200 5-20 Available
Disc Rotor with swing-out tube holders 2 4 x 50 4200 2760 5-20 Available

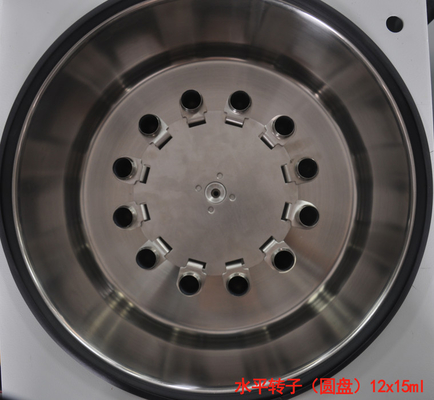

Disc Rotor with swing-out tube holders 12 x 15 4200 2760 5-15 Available
12 x 5 4200 2760 5 Unavailable
Disc Rotor with swing-out tube holders 8 x 10 4200 2760 5-10 Available
16 x 5 4200 2760 5 Unavailable
