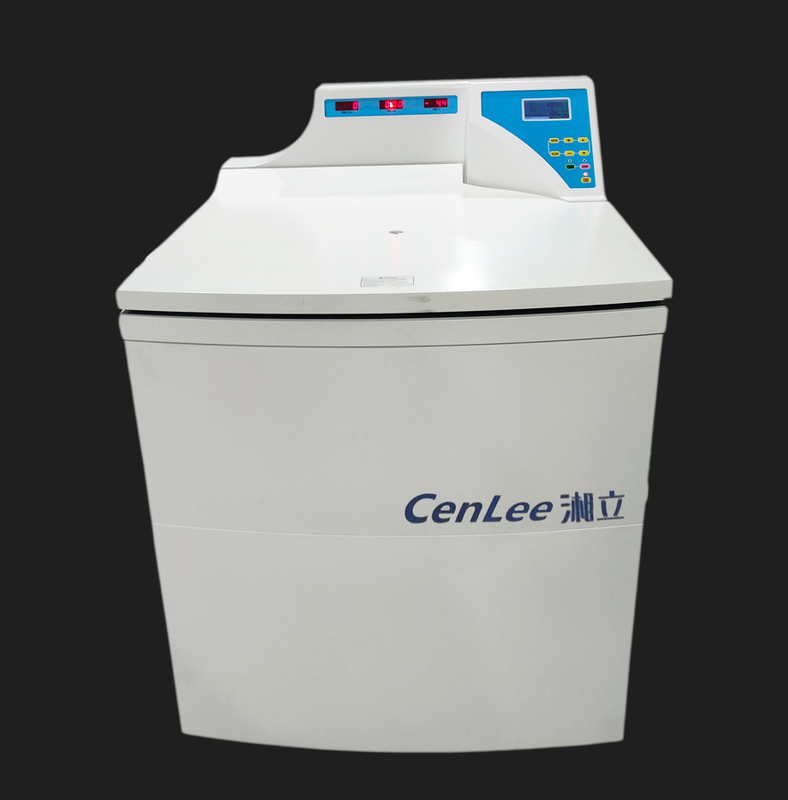

6x2400ml 8000rpm Floor Standing Refrigerated Centrifuge Blood Bag Centrifuge

Place of Origin: China
Brand Name: CenLee
Certification: CE
Model Number: CFL8R
Product Details
Place of Origin:
China
Brand Name:
CenLee
Certification:
CE
Model Number:
CFL8R
Minimum Order Quantity:
1 set
Price:
negotiable
Standard Packaging:
wooden case
Supply Ability:
500 sets per month
Specifications
Name:
CFL8R Floor Standing Blood Bag Refrigerated Centrifuge
Feature:
Pre-cooling Design
Max. RPM::
8000r/min
Max. RCF::
11740 X G
Max. Capacity::
4 X 2400ml
Temp. Control::
-20oC-40oC
Highlight:

8000rpm Floor Standing Refrigerated Centrifuge

,

6x2400ml Floor Standing Refrigerated Centrifuge

,

Floor Standing Blood Bag Centrifuge

Product Description

6x2400ml 8000rpm Floor Standing Refrigerated Centrifuge Blood Bag Centrifuge

  1. Floor Standing refrigerated Centrifuge(-20°C to +40°C)
    The Centrifuge offers outstanding performance in fast, efficient centrifuging of blood bags and large sample volumes.
  2. It accommodates a maximum capacity of 6 x 2400 ml (or 12x400ml blood bag system). When in use, the cooled large-volume centrifuge rests on high-quality vibration dampers.
  3. Optimal running performance guarantees best separation results. The low noise level makes agreeable working conditions.
  4. The extensive range of carriers and adapters for blood collection tubes, standard tubes, bottles and various blood bag systems can be centrifuged in one rotor - changing rotors is not necessary
  5. The stainless steel panel control box can be made according to customer requirements to meet the GMP requirements of the pharmaceutical industry.
  6. Widely used in radioimmunoassay, biochemistry, pharmaceutical and other industries, especially the separation and purification of blood products.

Features

  • Available with internal or external cooling for GMP and lean-room environments
  • Non-wind shielded rotor for best sample temperature control
  • 6 placed x 1000ml/2400ml
  • LED/LCD Control panel for easy operation
  • One (1) year warranty



Technical Parameter

Technical parameter

Model CFL8R ACC/DEC 1～10 level
Maximum speed 8000r/min Timing range 1 min～99h59S
Maximum RCF 14336×g Power 6.6KW
Maximum capacity 6×2400ml Power supply AC 220V 50Hz 30A
Speed Accuracy ±20r/min Noise ≤65dB(A)
Temperature range -20℃~+40℃ Dimensions

960×860×1200mm

(L×W×H)
Temperature accuracy ±1℃ Gross weight 500kg

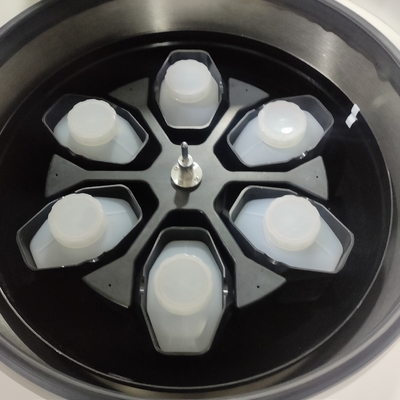

CFL8R rotor

Rotor type No. Capacity Max Speed(r/min) Max RCF(×g)
Main machine CFL8R   8000 14336
Angle rotor NO.1 6×1000ml 8000 14336
Swing out rotor NO.2 6×2400ml 4600 7060
Swing out rotor NO.3 6×2×1000ml 4200 5900
