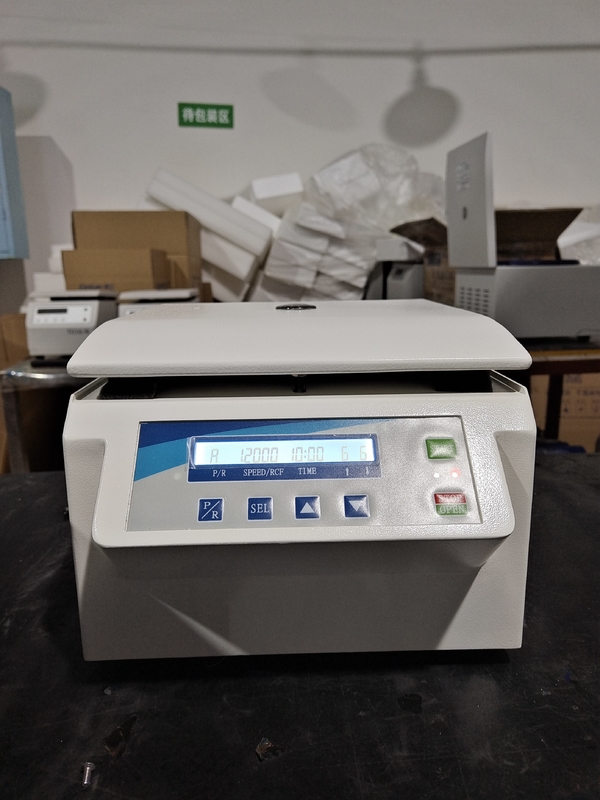

12000rpm TG12M TG12 LCD display Capillary blood centrifuge micro hematocrit centrifuge
Application:
TG12 micro hematocrit centrifuge is specific centrifuge to measure hematocrit value, centrifugation of micro blood and micro liquid. Proving a quantitative hematocrit reading for up to 12-24 blood samples
It is an ideal hematocrit centrifuge for point-of care and laboratory use in clinics and hospitals.
Features
1.Microcomputer control, DC brushless motor drive, stable operation, low noise.
2.Parameters can be changed at any time during operation without stopping the machine.
3.Automatic calculation and setting of centrifugal force RCF value, dedicated RCF key, can be observed at any time.
4.Display in seconds when the countdown time is less than one minute.
5.Fault self-diagnosis system, detect over speed, speed loss etc faults, improve the safety performance of the instrument.
| Model | TG12M | TG12 |
| Maximum speed | 12000r/min | |
| Maximum RCF | 14800×g | |
| Maximum capacity | 24pcs capillary | 12pcs capillary |
| Speed Accuracy | ±20r/min | |
| Timing range | 1-99min | |
| Machine noise | ＜62dB(A) | |
| Power supply | AC220V±22V 50Hz 5A | |
| Power | 300W | |
| Chamber diameter | Φ280 | |
| Dimensions | 498×307×245mm | |
| Net Weight | 16kg | |
1.Collect capillary blood sample 2. Place the sealed tube into the centrifuge
