Cenlee16K 16000rpm Fixed Angle Rotor Benchtop High Speed Centrifuge

Place of Origin: China
Brand Name: Cenlee
Certification: ISO9001/13485，CE
Model Number: CenLee16K
Product Details
Place of Origin:
China
Brand Name:
Cenlee
Certification:
ISO9001/13485，CE
Model Number:
CenLee16K
Minimum Order Quantity:
1 set
Price:
negotiable
Standard Packaging:
Wooden Case
Supply Ability:
500 sets/month
Specifications
Name:
Benchtop High Speed Laboratory Centrifuge
Angle Rotors:
11 Angle Rotors
Max. RPM::
16600
Max. RCF::
21532 X G
Max. Capacity::
4 X 100ml
Temp. Control::
N/A
Highlight:

16000rpm Benchtop High Speed Centrifuge

,

16000rpm Fixed Angle Rotor Centrifuge

Product Description

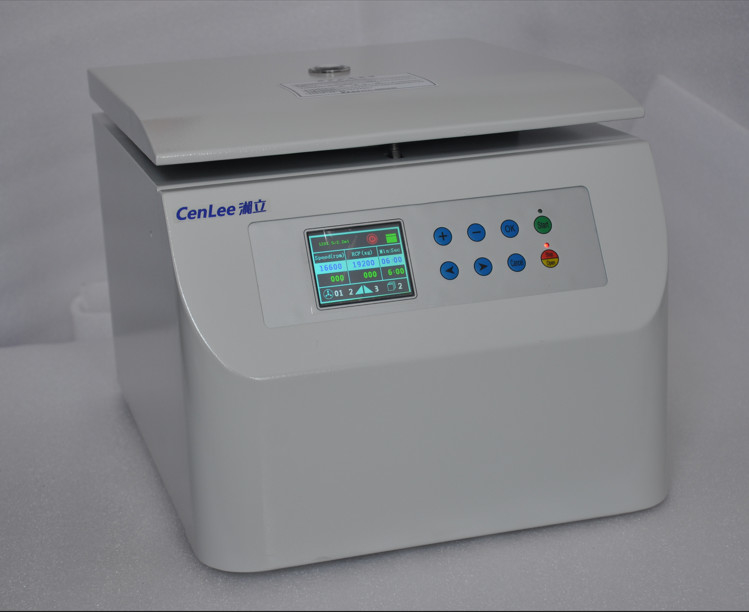

Cenlee16K 16000rpm Fixed Angle Rotor Benchtop High Speed Centrifuge

High Speed Centrifuge, from 0.5mL microtubes to 100ml tubes, or micro-plates

Ideal for research laboratory

11 angle rotors and 1 micro-plate rotor are available.

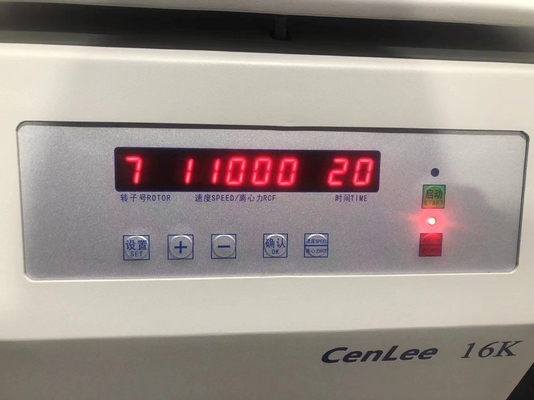

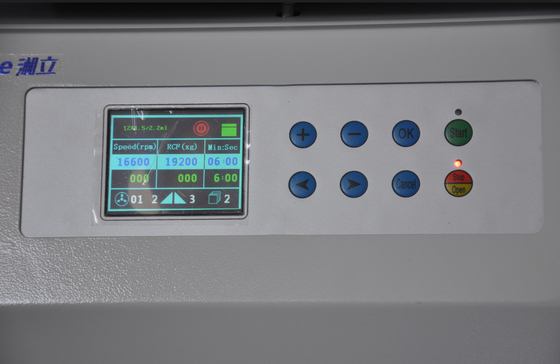

  • Microprocessor-based controlled with user-friendly operational panel. LED or LCD display for your option. Frequency conversion motor drived without powder pollution. Seperation protocols can be automatic stored.
  • Multistage damping system for small vibration and low noise.
  • Steel body, stainless steel chamber and imported key components for easy cleaning and durability.
  • In automatic RCF/RPM mode, you can set runs to a desired speed or g-force and moniter them in real time.
  • Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection, imbalance detection and so on.
  • Unique air guide design for small temperature rise to effectively protect samples.
Specifications
Benchtop High Speed Medium Capacity Centrifuge, with rotor
Model CenLee16K
Max.Speed (r/min) 16600
Max. RCF (x g) 21532
Max. Capacity (ml) 400
Control Microprocessor
Drive AC Frequency Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 100-16600
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy ±1
Timer Range(min:sec) 1-99:59
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110V (50/60), 10A single phase
Dim. (W x D x H) mm 345 x 450 x 335
Weight (kg) 25
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

 Adapters for smaller tubes
Fixed Angle Rotor 1 12 x 1.5/2.2 16600 19200 0.5-2.2 Available
Fixed Angle Rotor 2 12 x 5 15000 16099 0.5-5 Available
Fixed Angle Rotor 3 12 x 10 13000 16249 0.5-10 Available
Fixed Angle Rotor 4 8 x 15 (conical) 11000 12580 0.5-15 Available
Fixed Angle Rotor 5 8 x 20 13000 17194 0.5-20 Available

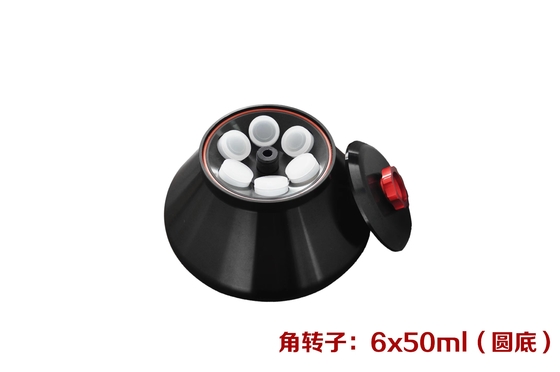

Fixed Angle Rotor 6 6 x 50  11000 13122 0.5-50 Available
Fixed Angle Rotor 7 6 x 50 (conical) 11000 13122 0.5-50 Available
Fixed Angle Rotor 8 24 x 1.5/2.2 15000 21532 0.5-2.2 Available
Fixed Angle Rotor 9 4 x 100 10000 10845 0.5-100 Available
Fixed Angle Rotor 10 48 x 0.5 12000 12650 0.5 Unavailable
Microplate Rotor 11 2 x 2 x 48wells 3000 1400 0.2 Unavailable
Fixed Angle Rotor 12 48 x 1.5/2.2 10000 11404 0.5-2.2 Available
Benchtop High Speed Centrifuge
Model: CenLee16K

Max. RPM: 16600
Max. RCF: 21532 x g
Max. Capacity: 4 x 100ml
Temp. Control: N/A
