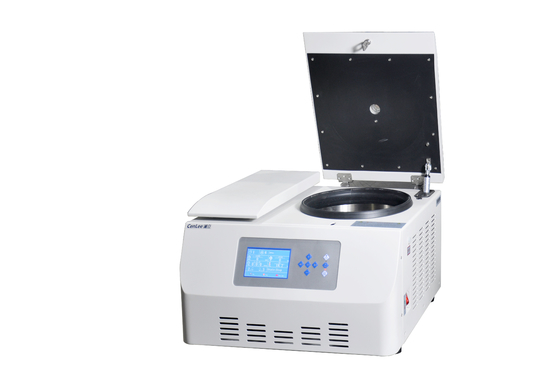

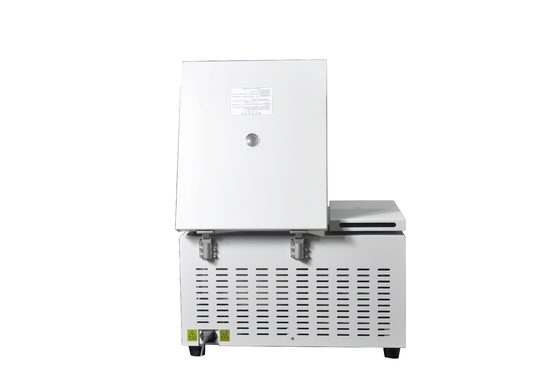

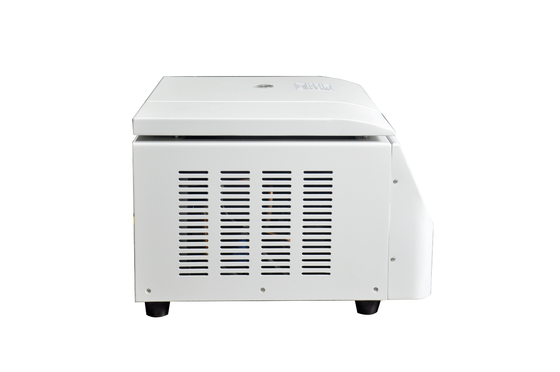

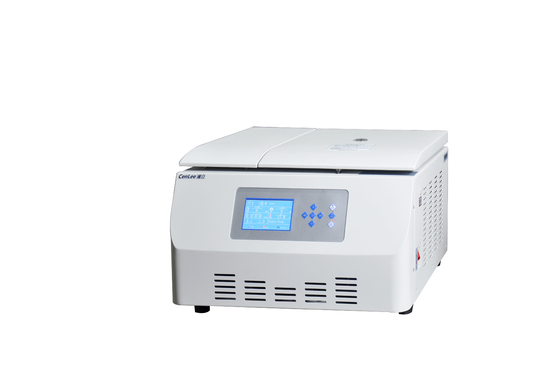

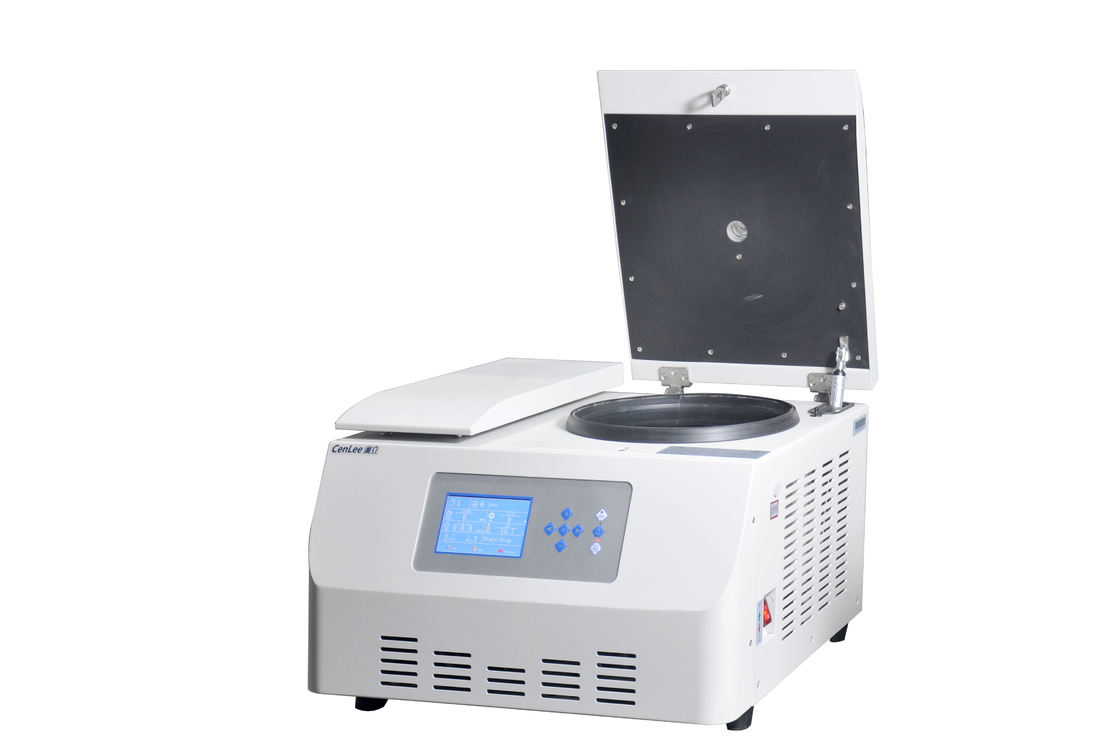

CENLEE16R Fixed Angle Rotor Medical High Speed Centrifuge Machine Tabletop 16600rpm

CENLEE16R Fixed Angle Rotor Medical High Speed Centrifuge Machine Tabletop 16600rpm

MOQ: 1 set
Standard Packaging: 3ply Wooden Case
Supply Capacity: 500 sets per month
Detail Information
Place of Origin
China
Brand Name
CenLee
Certification
CE, ISO9001/13485
Model Number
CenLee16R
Name:
CenLee16R Benchtop Centrifuge , Tabletop Centrifuge - All Medical Device
Driven:
FOC Vector Control System
Max.Speed (r/min):
16600
Max. RCF (x G):
21532
Max. Capacity (ml):
600 (6 X 100ml)
Temp. Set Range (°C):
-20 To +40
Minimum Order Quantity:
1 set
Packaging Details:
3ply Wooden Case
Supply Ability:
500 sets per month
High Light:

Tabletop High Speed Centrifuge Machine

,

16600rpm High Speed Centrifuge Machine

,

Fixed Angle Rotor PRP Centrifuge

Product Description

CENLEE16R 16600rpm Fixed Angle Rotor Table Top High Speed Centrifuge Machine For Medical Use



1. Microprocessor controlled for stable system function.

2. Large LCD display with humanized operation interface by touching screen and key pads, either or both.

3. The set parameters can be changed directly during running with no need to stop first.

4. Drived by frequency conversion motor with FOC vector control system for more exactness and lower noise.

5. 9 kinds of Accel profiles, 10 kinds of Decel profiles, and 3 groups of damping with special NR rubber to avoid sample suspension for best separation results.

6. Steel housing coated by power can not only uniform outer surface but also resist corrosion and scratch.

7. 304 quality stainless steel chamber for long durability and easy cleaning.

8. Rubber isolation ring with unique design and excellent performance can avoid condensate water to protect the motor.

9. Non-Fluorine and imported compressor unit with environmental refrigerant for fast refrigeration and low noise. The rotor can be precooled at rest with unique precooling design (only for refrigerated centrifuges).

10. Both mechanical and electronic door lock are available for high reliability.

11. Several proteciton devices such as overspeed, overtemperature, lid-lock, imbalance and so on to ensure safety.

12. The time will display in seconds when the remaining running time is less than 1 minute.

13. Good temperature control can ensure all rotors maintain at 4 ℃ during its max speed (only for refrigerated centrifuges).

14. Instant and continuous centrifugation for option.





TECHNICAL PARAMETER

Benchtop High Speed Refrigerated Centrifuge, without Rotors
Model CenLee16R
Max.Speed (r/min) 16600
Max. RCF (x g) 21532
Max. Capacity (ml) 600 (6 x 100ml)
Control Microprocessor
Drive AC Frequency Conversion Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 100-16600
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(hr:min:sec) 0-99:59:59
Noise (dB) ≤ 55
Chamber Dia.(mm) 280
Power Supply V (Hz) 220/110 (50/60), 10A
Dim. (W x D x H) mm 550 x 530 x 360
Weight (kg) 68





ROTORS & ADAPTORS

CenLee16R Rotors & Adapters:

Rotor ID: No. 1

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):12 x 1.5/2.2

Max. Speed (rpm): 16600

Max. RCF (x g): 19200

Adapter for smaller tubes: Available

Rotor ID: No. 2

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):12 x 5

Max. Speed (rpm): 15000

Max. RCF (x g): 16099

Adapter for smaller tubes: Available

Rotor ID: No. 3

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):12 x 10

Max. Speed (rpm): 13000

Max. RCF (x g): 16249

Adapter for smaller tubes: Available

Rotor ID: No. 4

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):8 x 15

Max. Speed (rpm):11000

Max. RCF (x g): 12580

Adapter for smaller tubes: Available



Rotor ID: No. 5

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):8 x 20

Max. Speed (rpm):13000

Max. RCF (x g): 17149

Adapter for smaller tubes: Available



Rotor ID: No. 6

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):6 x 50

Max. Speed (rpm):11000

Max. RCF (x g): 13122

Adapter for smaller tubes: Available

Rotor ID: No.7

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):24 x 1.5/2.2

Max. Speed (rpm):15000

Max. RCF (x g): 21532

Adapter for smaller tubes: Available

Rotor ID: No.8

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):4 x 100

Max. Speed (rpm):10000

Max. RCF (x g): 10845

Adapter for smaller tubes: Available

Rotor ID: No.9

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):48 x 0.5

Max. Speed (rpm):12000

Max. RCF (x g): 12650

Adapter for smaller tubes: Available

Rotor ID: No.10

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):6 x 100

Max. Speed (rpm):10000

Max. RCF (x g): 11404

Adapter for smaller tubes: Available

Rotor ID: No.11

Rotor Type: Fixed Angle Rotor

Max. Capacity (places x ml):48 x 1.5/2.2

Max. Speed (rpm):12000

Max. RCF (x g): 15280

Adapter for smaller tubes: Available
