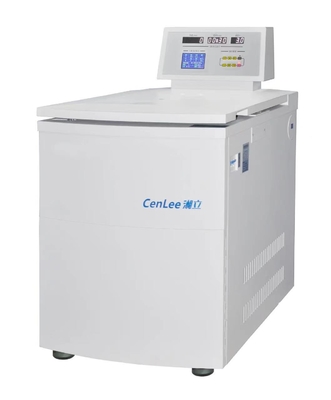

CFL6R 6×1000ml Large Capacity Floor Standing Refrigerated Centrifuge In 6000rpm

CFL6R 6×1000ml Large Capacity Floor Standing Refrigerated Centrifuge In 6000rpm

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 50 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
CFL6R
Name:
Refrigerated Centrifuge Floor Standing Laboratory Centrifuge Machine
Accel/Decel Rates:
10/10
Max. RPM::
6000
Max. RCF::
6680 X G
Max. Capacity::
6000ml(6x1000ml)
Temp. Control::
-20oC +40oC
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
High Light:

CFL6R Floor Standing Refrigerated Centrifuge

,

Refrigerated Centrifuge 6000rpm

,

6x1000ml Floor Standing Centrifuge

Product Description

CFL6R 6×1000ml Large Capacity Floor Standing Refrigerated Centrifuge In 6000rpm



Product advantages

  1. Flexible anti-friction system can reduce wind resistance and speed up the time to maximum speed.
  2. Eco-friendly 404a refrigerant, fluorine-free high efficiency refrigeration.
  3. 6L large capacity separation.
  4. The stainless steel panel control box can be made according to customer requirements to meet the GMP requirements of the pharmaceutical industry.
  5. Widely used in radioimmunoassay, biochemistry, pharmaceutical and other industries, especially the separation and purification of blood products.

Features

1. Touch panel, LED digital or LCD large screen liquid crystal display, parameters can be changed arbitrarily during operation.

2. Adopt high-power brushless frequency conversion speed motor, European imported ultra-high speed bearings, and equipped with the most advanced frequency conversion speed controller.

3. Adopting imported compressor unit (refrigerant R404a), the temperature can be adjusted arbitrarily, high temperature control precision , small vibration, low noise.

4. The operating program can be edited, stored and desirable: the user can set 9 programs for daily operation; 0-9 gear up/down rate, and 40 custom working modes can be stored.

5. The pre-cooling design of the centrifuge chamber has fast cooling, fast lifting speed, time-saving and high-efficiency.

6. System double safety door lock; over-temperature, over-speed, door self-locking, imbalance and other protection functions and fault self-diagnosis system.

7. Pulse function, short centrifugation, convenient for diverse centrifugation.



Technical Parameter

Model CFL6R Cryogen R404a
Maximum speed 6000r/min Acc/Dec time Can be customized
Maximum RCF 6680×g Timing range 0-999min
Maximum capacity 6000ml Power 5.5KW
Speed Accuracy ±20r/min Power supply AC 220V 50Hz20A
Temperature range -20℃~+40℃ Machine noise ≤65dB(A)
Temperature accuracy ±1℃ Dimensions 830×720×1250mm
Motor drive Frequency converted motor Net Weight 268kg

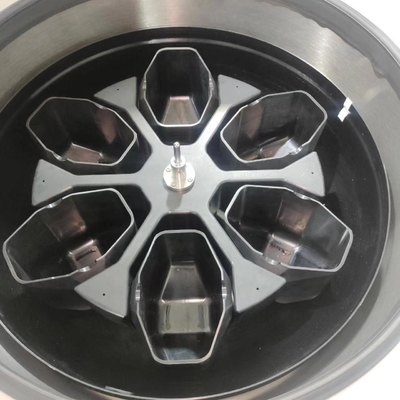

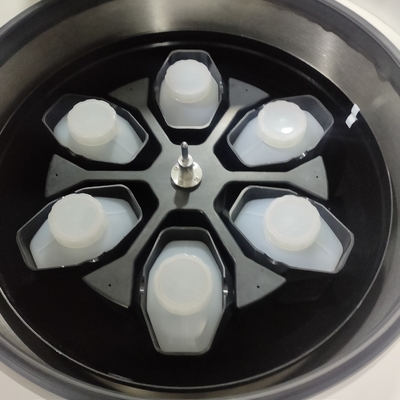

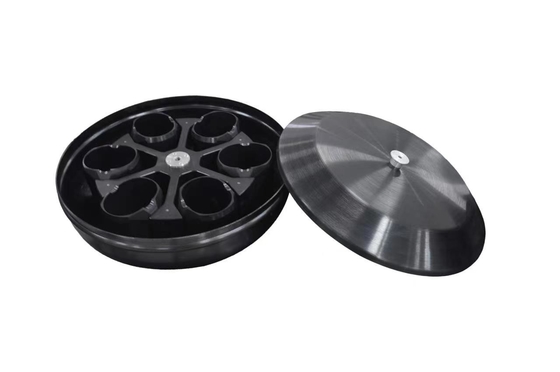

CFL6R Rotor

Rotor type No. Capacity Max Speed(r/min) Max RCF(×g)
Main machine CFL6R   6000 6680
Angle rotor NO.1 6×300ml 6000 5650
Angle rotor NO.2 6×500ml 6000 6680
Swing out rotor NO.3 6×1000ml 4200 5100
