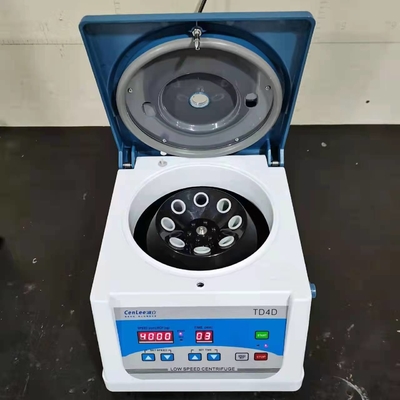

TD4D Low Speed Blood Plasma Extractor 4000r/Min PRP Centrifuge For Medical

Place of Origin: China
Brand Name: CenLee
Certification: CE
Model Number: TD4D
Product Details
Place of Origin:
China
Brand Name:
CenLee
Certification:
CE
Model Number:
TD4D
Minimum Order Quantity:
1 set
Price:
negotiable
Standard Packaging:
carton
Supply Ability:
500 sets per month
Specifications
Name:
​PRP Spin Centrifuge Machine Low Speed Blood Plasma Extractor
Time Range:
0-99min
Max Speed:
4000r/min
Max RCF:
2200×g
Max Capacity:
90ml
Noise:
≤60dB
Highlight:

Blood Plasma Extractor 4000r/Min

,

90ml Capacity PRP Centrifuge

,

Low Speed Blood Plasma Extractor

Product Description

​PRP spin centrifuge machine low speed blood plasma extractor

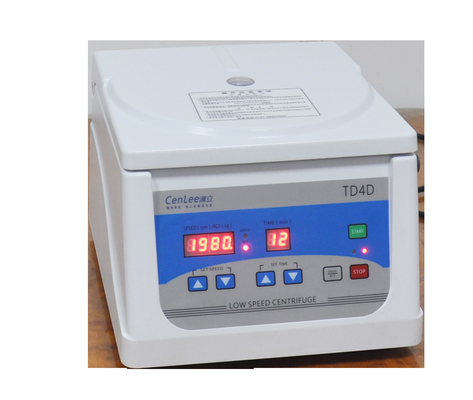

  1. Microcomputer controlled, control panel with LED display and keypads.
  2. The latest running parameters can be automatically remembered, simple and convenient operation.
  3. Drived by brushless motor with high torque for stable running and free maintenance.
  4. Short and continuous centrifugation for option.
  5. Multi-stage vibration absorption structure with low noise.
  6. The special spring taper sleeve to connect the rotor and the motor spindle make the installation, removal and exchanging of the rotor become easy and simple: no need to turn round the rotor.
  7. Mechanical and electronic door lock system are both available for high reliability.
  8. Equipped with various protection for personal and machine safety, such as over-speed, imbalance, lid self-locking, three-level protective cover and so on.
  9. Unique air flow guide design ensures a little temperature rise to protect the samples.
  10. The parameters can be changed during operation without stopping.





TECHNICAL PARAMETER

Model TD4D
Max Speed 4000r/min
Max RCF 2200×g
Max Capacity 8×15ml
Speed Accuracy ±20r/min
Time Range 0-99min
Power Supply AC 220-110V 50/60Hz 3A
Noise ≤60dB
Dimension 255×310×200(mm)
Packaged Dimension 390×350×300(mm)
Weight 5.5kgs
Gross Weight 7kgs

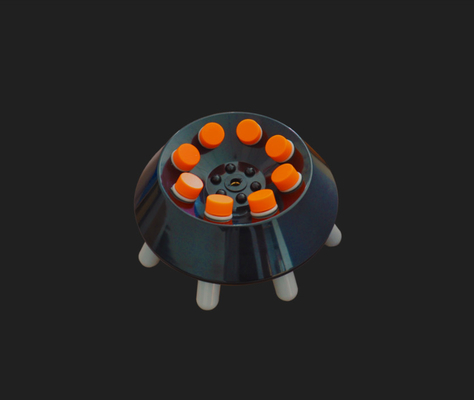

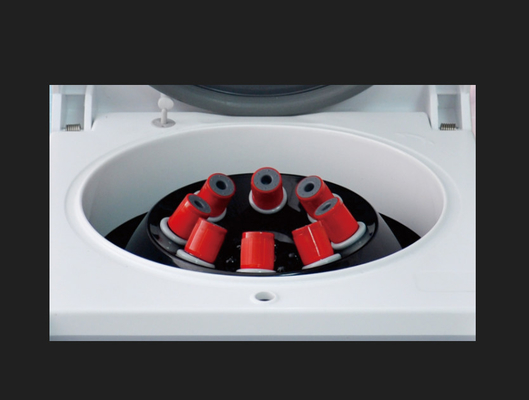

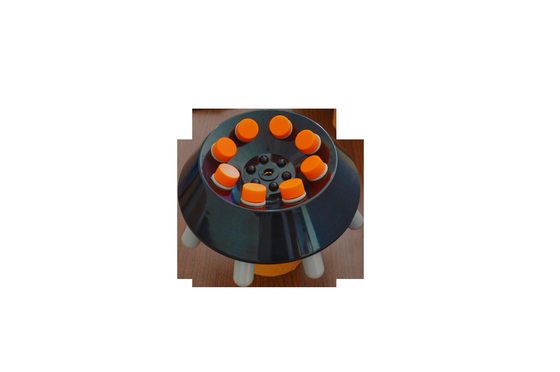

ROTORS

Type Material Capacity Max Speed (r/min) Max RCF(×g)
Fixed Angle Rotor Plastic 8×15ml 4000 2200
Fixed Angle Rotor Plastic 12×5ml 4000 2200
