Laboratory Centrifuge Machine
Created with Pixso.

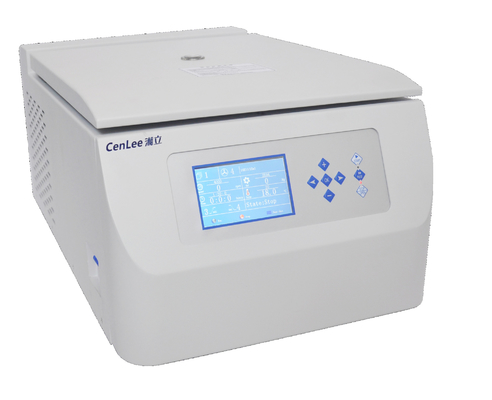

PCR Microplate Benchtop High Speed Refrigerated Centrifuge For DNA RNA Protein Virus Extraction

PCR Microplate Benchtop High Speed Refrigerated Centrifuge For DNA RNA Protein Virus Extraction

Brand Name: Cenlee
Model Number: CTH1650R
MOQ: 1PC
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Name:
0.2mL PCR Tubes 8 Microrotors Laboratory Centrifuge Machine 55dB
PCR Tubes:
0.2
Max. RPM::
16500
Max. RCF ::
21530 X G
Max. Capacity::
24 X 1.5/2.0ml
Temp. Control::
-20oC-40oC
Packaging Details:
Wooden Case
Highlight:

Benchtop High Speed Refrigerated Centrifuge

,

PCR High Speed Refrigerated Centrifuge

,

PCR Microplate Centrifuge

Product Description

PCR Microplate Centrifuge Benchtop High Speed Refrigerated Centrifuge For DNA/RNA/Protein/Virus Extraction



  • Compact Tabletop Micro Refrigerated Centrifuge, from 0.2mL PCR tubes to 10mL microtubes
  • Ideal for microtubes centrifuge
  • 8 microrotors are available.
  • Microprocessor-based controlled and frequency conversion motor drived. Its motor is maitenance – free and run quietly even at high speeds.
  • A memory function for parameters is available for repetitive seperation operation.
  • Simply panel with Large LCD display for user-friendly operation. Both set paramenters and actural run conditions can be dispayed and modified in real time.
  • With unique damping system, 10 acceleration and braking rates to fast for efficient sample separation, or slow for protection of delicate samples.
  • Low-noise output lower than 55dB offer you a comfortable reseach environment.
  • Powerful refrigeration system with imported environmental refrigerants ensure high temperature control accuracy.
  • Designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
  • Automatic rotor recognization fuction ensures the maximum speed are not exceeded to protect the rotor and sample for safer seperation.
  • Excellent cooling performance ensure all rotors, at full load, can maintain at -4°C at full speeds.
Specifications
Benchtop Microliter Refrigerated Centrifuge, without rotor
Model CTH1650R
Max.Speed (r/min)  16500
Max. RCF (x g) 21532
Max. Capacity (ml) 80
Control Microprocessor
Drive AC Frequency Motor
Accel/Decel Rates 10/10
Speed Range (r/min)  100-16500
Speed Control Accuracy (r/min)  ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy ±1
Timer Range(hour:min:sec) 0-99:59:59
Noise (dB) ≤65
Power Supply V (Hz)  220/110V (50/60), 10A single phase
Dim. (W x D x H) mm 415 x 660 x 320
Weight (kg) 55

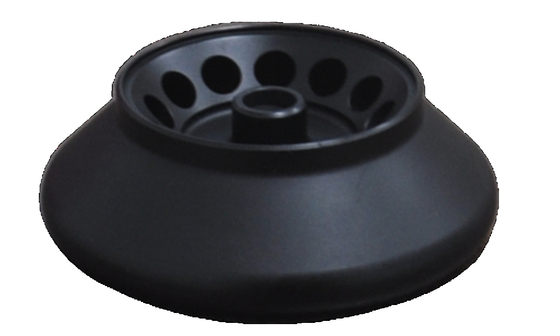

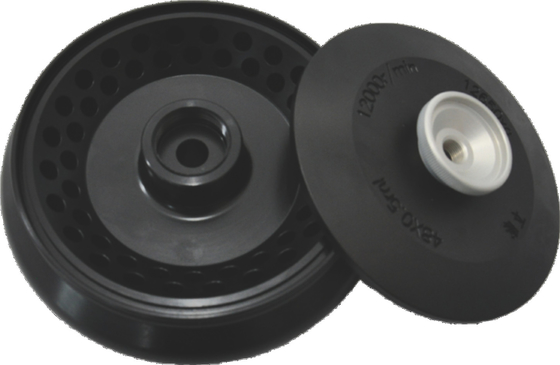

Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 12 x 1.5/2.2 16500 18360 0.25-2.2 Available
Fixed Angle Rotor 2 12 x 5 12000 10142 0.25-5 Available
Fixed Angle Rotor 3 24 x 1.5/2.2 15000 21532 0.25-2.2 Available
Fixed Angle Rotor 4 30 x 1.5/2.2 12000 16270 0.25-2.2 Available
Fixed Angle Rotor 5 48 x 0.5 12000 10920 0.5 Unavailable
Fixed Angle Rotor 6 6 x 8 x 0.2 strip 13000 16020 0.2 Unavailable
Fixed Angle Rotor 7 18 x 0.5 16000 15300 0.5 Unavailable
Fixed Angle Rotor 8 8 x 10 12000 12900 0.25-2.2 Available

Benchtop High Speed Refrigerated Centrifuge
Model: CTH1650R

Max. RPM: 16500
Max. RCF : 21530 x g
Max. Capacity: 24 x 1.5/2.0ml
Temp. Control: -20oC-40oC
